BRS3ADW850ABA

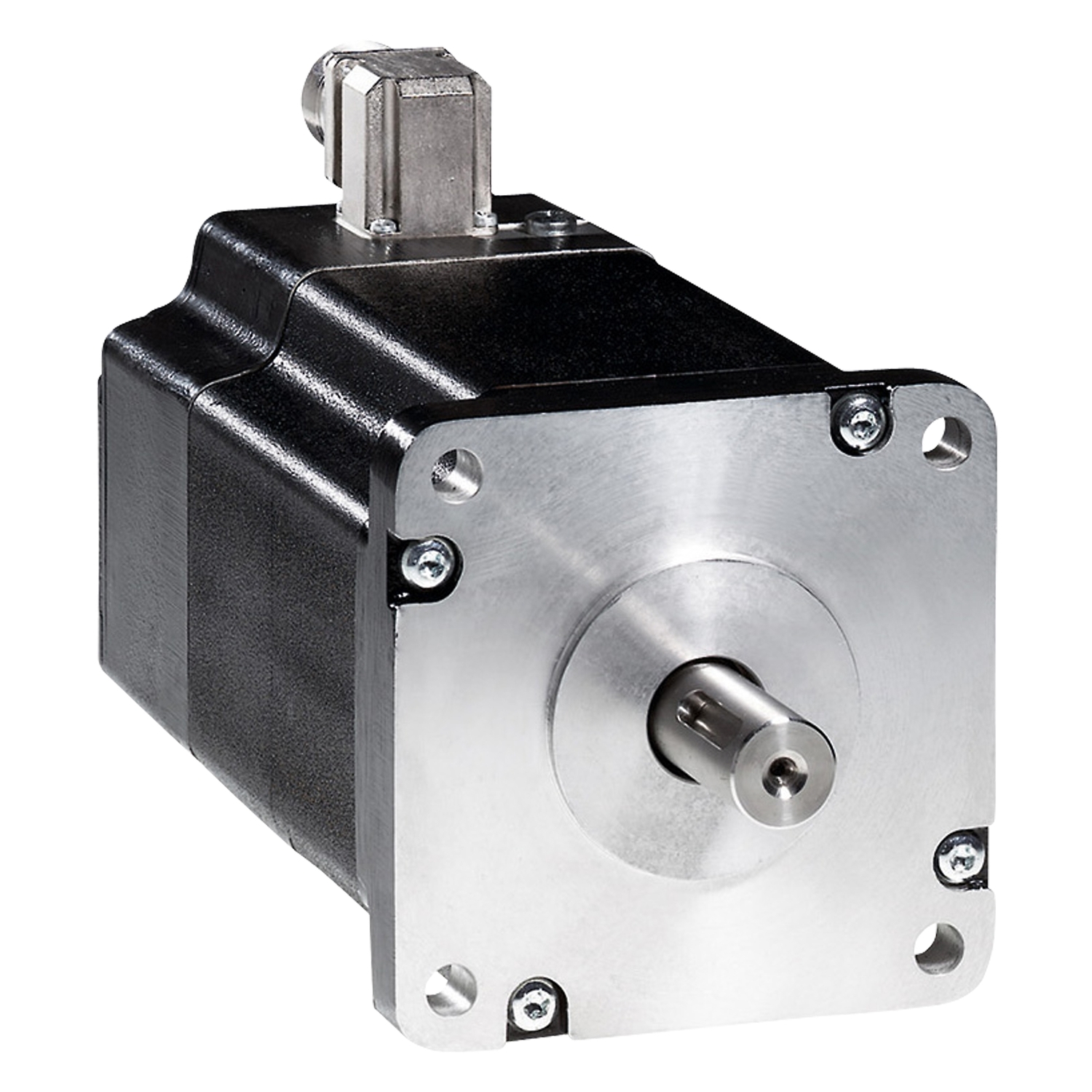

Schneider Electric BRS3ADW850ABA is a 3-phase stepper motor - 19.7 Nm - shaft Ø19mm - L=230mm - w/o brake - term box. This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 6-pole stepper motor with 19mm parallel key shaft, centering collar of 56mm, without holding brake and second shaft end.

Manufacturer

Schneider Electric

Part number

BRS3ADW850ABA

Product family

Lexium SD3

Category

Stepper Motors

Technical details

The 6-pole stepper motor with 19mm parallel key shaft, centering collar of 56mm, without holding brake and second shaft end; It is a 3-phase stepper motor with a rated current of 4.75A, a mechanical speed of 3000RPM and a supply voltage of 230V AC, 325V DC; The shaft dimensions are 19mm (diameter) x 40mm (length); It offers service life of about 20,000 hours (bearing); It is an IP41 and IP56 rated product; Its dimensions are 228mm (length) and the centering collar dimensions are 3mm (depth) x 56mm (diameter) with 125.86mm mounting hole; It weighs 11.2kg

Weight

11.2 kg
