BRS368W131ACA

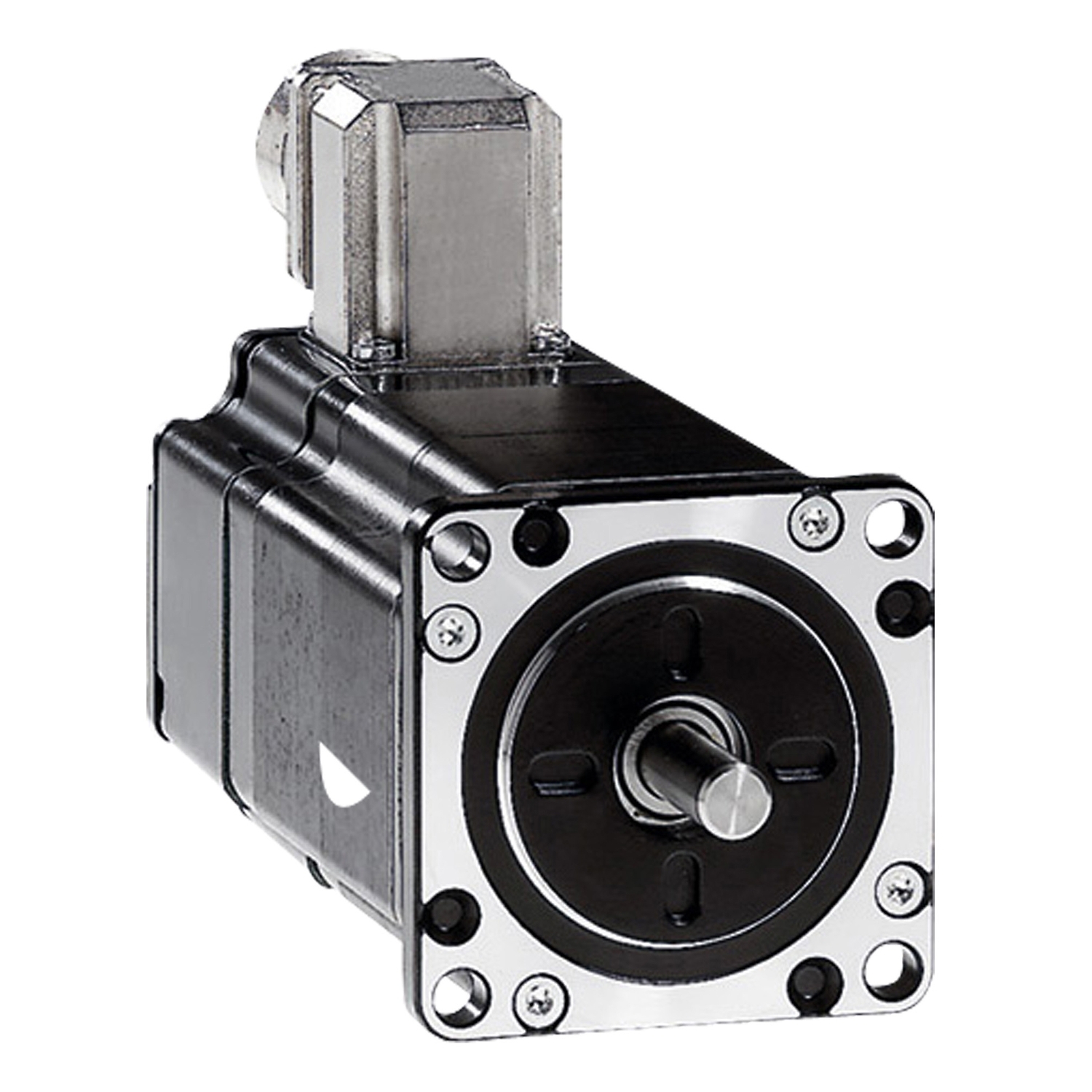

Schneider Electric BRS368W131ACA is a 3-phase stepper motor - 1.7 Nm - shaft Ø8mm - L=79mm - without brake - connector. This product is part of the Lexium SD3 range, an offer of 3phase stepper drives and stepper motors. "This is a 3phase stepper motor that features a maximum mechanical speed of 3000RPM, a smooth shaft end (diameter 8mm), without holding brake. "It has one angled connector for electrical wiring. "It carries out precise step-by-step movements that are predefined by a stepper motor drive. "Its stepper capacity is 200 steps per 1.8 degrees, 400 per 0.9, 500 per 0.72, 1000 per 0.36, 2000 per 0.18…

Manufacturer

Schneider Electric

Part number

BRS368W131ACA

Product family

Lexium SD3

Category

Stepper Motors

Technical details

The circle diameter of the mounting holes is 66.6mm; It meets EN/IEC 50178, EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2, and EN/IEC 61800-3 standards. "It is compatible with SD326 and SD328 stepper motor drives. "Those mounting positions are allowed per IEC 60034-7 as IM B5 shaft horizontal, IM V1 shaft vertical, shaft end down, IM V3 shaft vertical, shaft end up. "The SD3 is an universally applicable stepper motor drive. "Stepper drives and stepper motors are for motion control with high accuracy and high torque at low rotation speeds

Weight

2 kg
