BRS368W131FCA

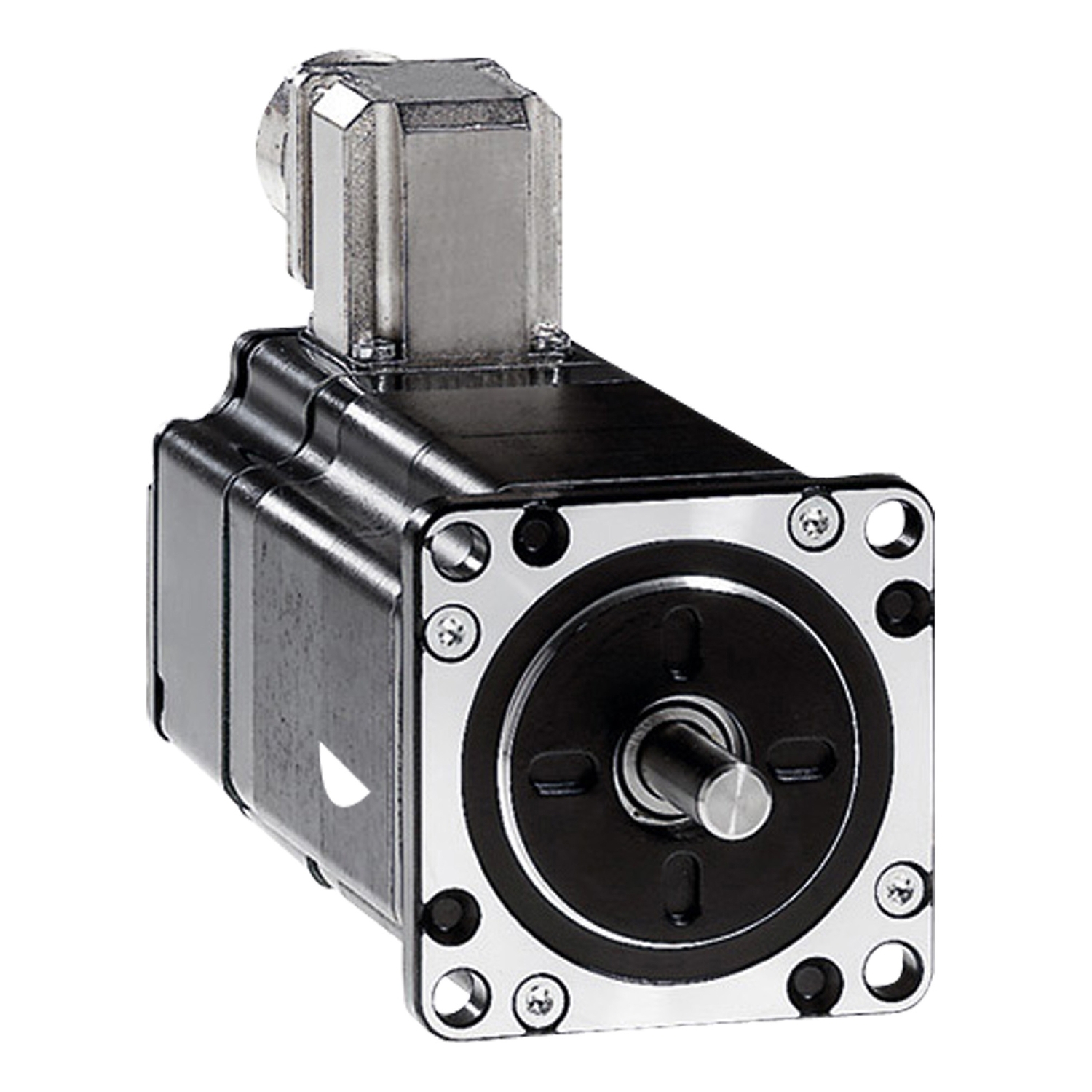

Schneider Electric BRS368W131FCA is a 3-phase stepper motor - 1.7 Nm - shaft Ø8 mm - L=79mm - with brake - connector. This product is part of the Lexium SD3 range, an offer of 3phase stepper drives and stepper motors. This is a 3phase stepper motor that features a maximum mechanical speed of 3000RPM, a smooth shaft end (diameter 8mm), without holding brake.

Manufacturer

Schneider Electric

Part number

BRS368W131FCA

Product family

Lexium SD3

Category

Stepper Motors

Technical details

This is a 3phase stepper motor that features a maximum mechanical speed of 3000RPM, a smooth shaft end (diameter 8mm), without holding brake; It has one angled connector for electrical wiring; Its stepper capacity is 200 steps per 1.8 degrees, 400 per 0.9, 500 per 0.72, 1000 per 0.36, 2000 per 0.18, 4000 per 0.09, 5000 per 0.072, and 10000 per 0.036; Supply voltage limits are 230VAC, 325VDC, rated current is 0.9A, nominal torque is 1.5Nm, time constant is 4.6ms, degree of protection is IP56, shaftend IP41; The motor flange size is 57.2mm, fixed by 4x 5.2mm holes; The circle diameter of the mounting holes is 66.6mm; It weighs 2kg

Weight

2 kg
