BRS39AW660ACA

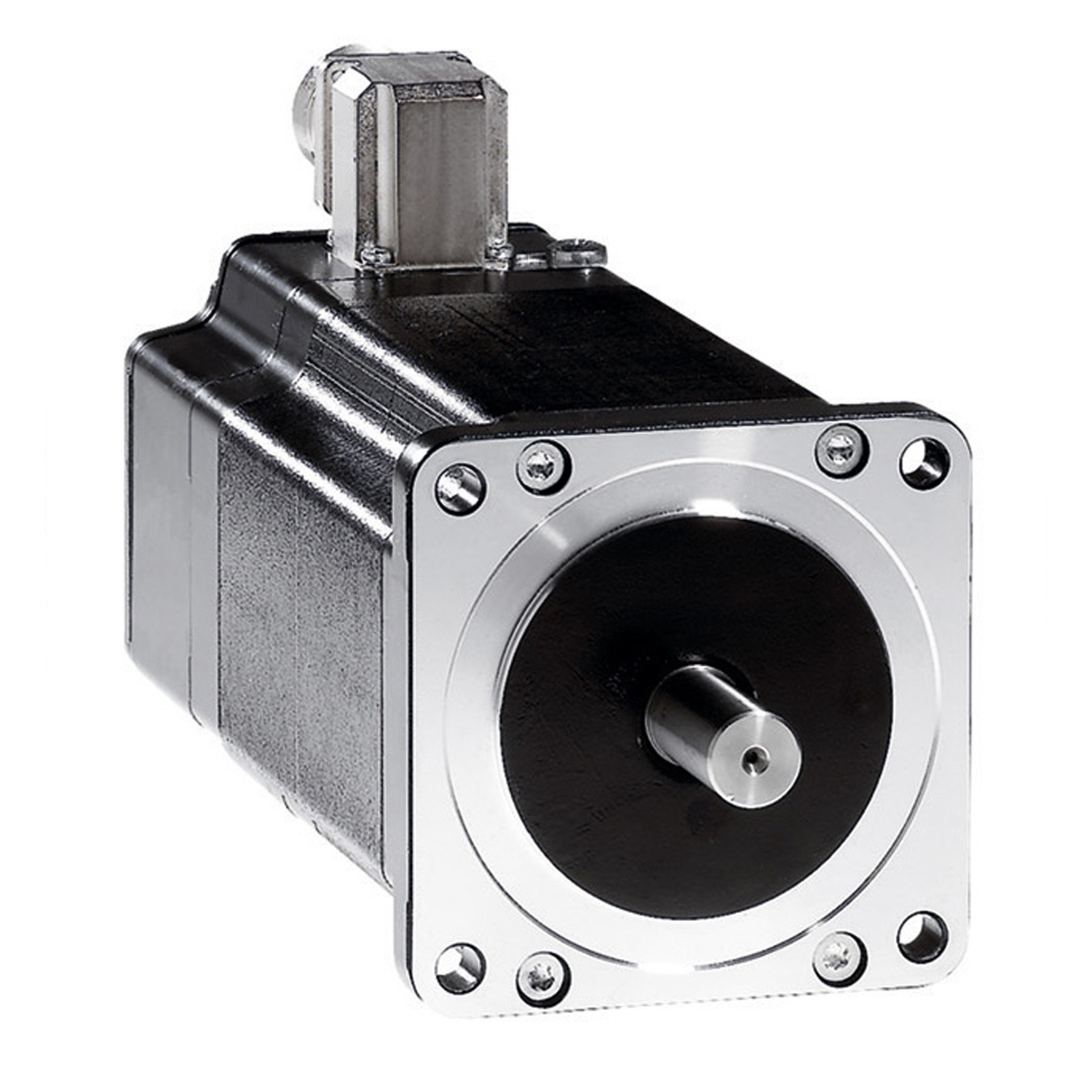

Schneider Electric BRS39AW660ACA is a 3-phase stepper motor - 4.8 Nm - shaft Ø 12mm - L=98mm - w/o brake - conn. This product is part of the Lexium SD3 range, an offer of 3phase stepper drives and stepper motors. This is a 3phase stepper motor that features a maximum mechanical speed of 3000RPM, a smooth shaft end (diameter 12mm), without holding brake.

Manufacturer

Schneider Electric

Part number

BRS39AW660ACA

Product family

Lexium SD3

Category

Stepper Motors

Technical details

This is a 3phase stepper motor that features a maximum mechanical speed of 3000RPM, a smooth shaft end (diameter 12mm), without holding brake; It has one angled connector for electrical wiring; Its stepper capacity is 200 steps per 1.8 degrees, 400 per 0.9, 500 per 0.72, 1000 per 0.36, 2000 per 0.18, 4000 per 0.09, 5000 per 0.072, and 10000 per 0.036; Supply voltage limits are 230VAC, 325VDC, rated current is 5.8A, nominal torque is 4Nm, time constant is 9ms, degree of protection is IP56, shaftend is IP41; The motor flange size is 85mm, fixed by 4x 6.5mm holes; The circle diameter of the mounting holes is 98.99mm; It weighs 3.2kg

Weight

3.2 kg
