1122733

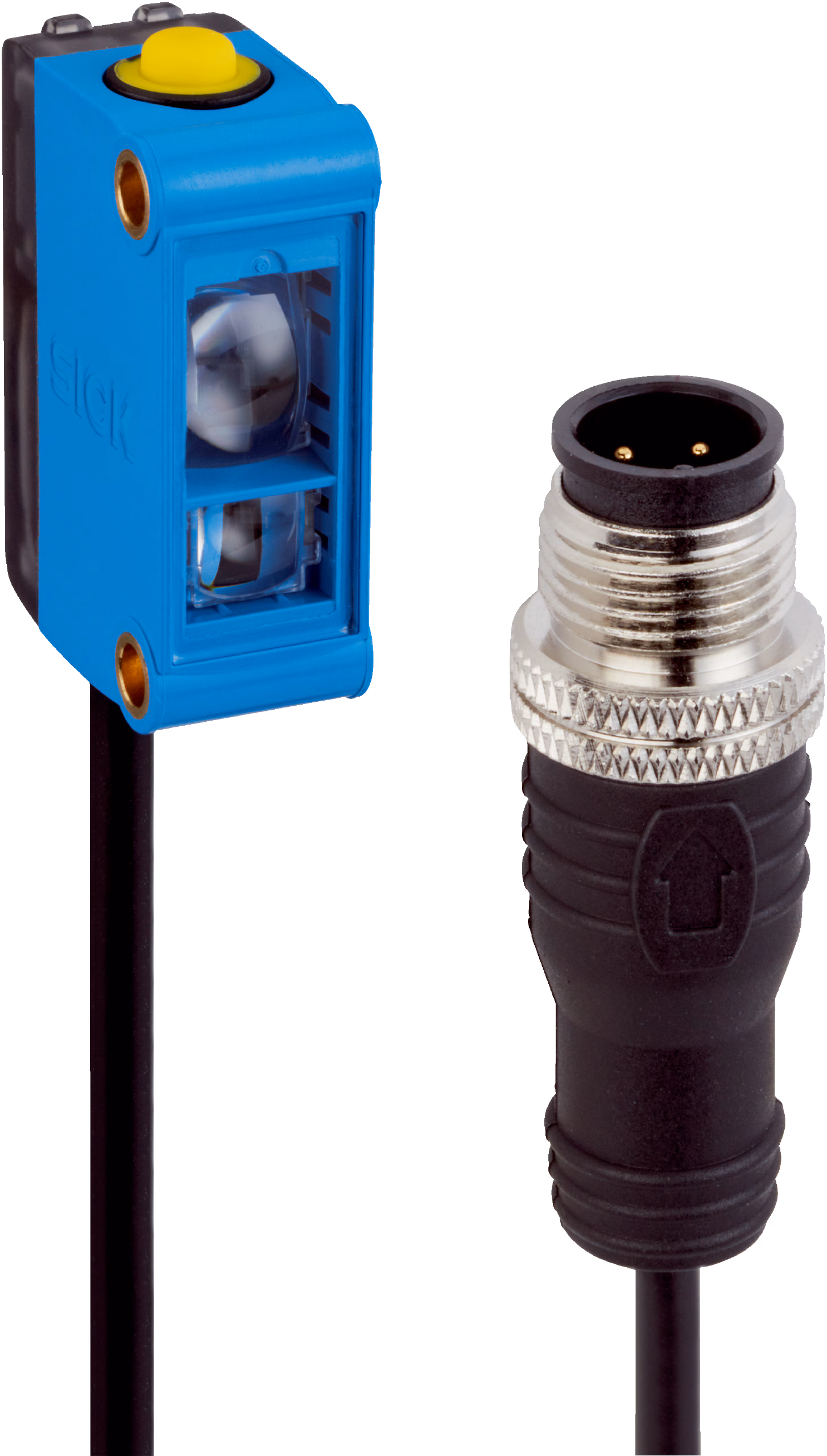

SICK 1122733 / CSM-WP117A2P is a color sensor in the CSM family. Light source: LED; Housing design: Small; Communication interface: IO-Link; Sensing distance: 12.5 mm; Switching output: PNP; Light spot size: 1.9 mm x 9.4 mm; Light spot direction: Vertical; Light emission: Long side of housing; Connection type Detail: Cable with plug, M12, 4-pin; Output (channel): 8 colors via IO-Link; Adjustment: Teach-in button, cable, IO-Link.

Manufacturer

Sick

Part number

1122733

Product family

CSM

Category

Color sensors

Technical details

Supply voltage: 12 V DC... 24 V DC; Switching output: PNP; Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V; Response time: 300 µs; Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm; Connection type: Cable with plug, M12, 4-pin, 0.2 m; Connection type Detail: Cable material PVC; Enclosure rating: IP67; Housing material: ABS; Ambient operating temperature: –10 °C... +55 °C; Weight: Approx. 25 g; Housing design: Small; Light source: LED, RGB; Light emission: Long side of housing

Weight

0.025 kg

Dimensions

12 x 31.5 x 21
