1120172

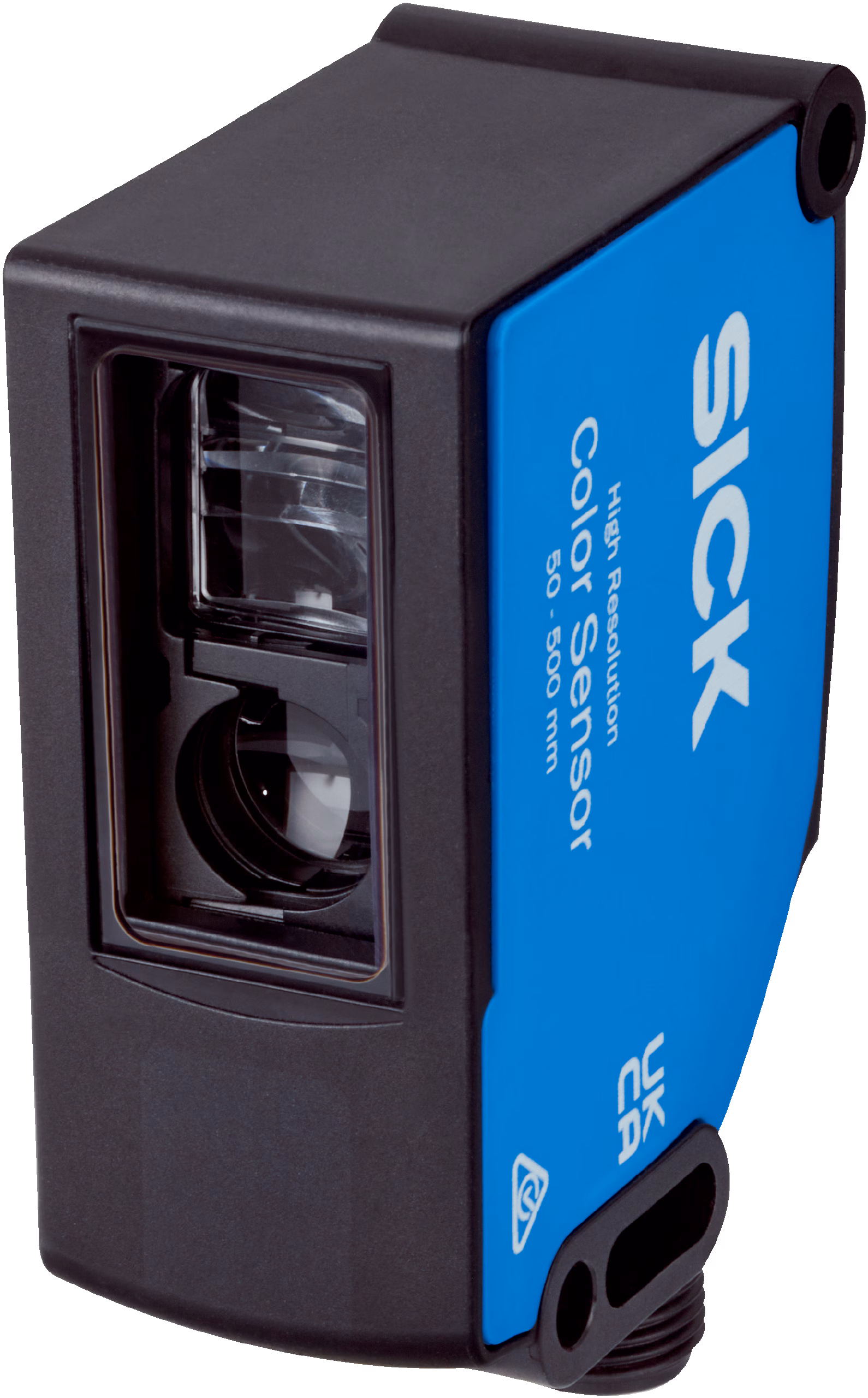

SICK 1120172 / CSS-WBGAD4118AA10Z is a color sensor in the CSS High Resolution family. Light source: LED; Housing design: Small; Communication interface: IO-Link; Sensing distance: 500 mm; Switching output: Push-pull: PNP/NPN; Light spot size: Ø 8 mm... 32 mm; Light spot direction: Round, large; Light emission: Long side of housing; Connection type Detail: Male connector M12, 8-pin.

Manufacturer

Sick

Part number

1120172

Product family

CSS High Resolution

Category

Color sensors

Technical details

Supply voltage: 10.8 V DC... 28.8 V DC; Switching output: Push-pull: PNP/NPN; Switching output (voltage): Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V; Response time: 120 µs; Dimensions (W x H x D): 26 mm x 62 mm x 47.5 mm; Connection type: Male connector M12, 8-pin; Enclosure rating: IP67; Housing material: VISTAL®; Ambient operating temperature: –20 °C... +55 °C; Weight: 70 g; Parameter presettings: None; Housing design: Small; Light source: LED, RGB; Light emission: Long side of housing

Weight

0.07 kg

Dimensions

26 x 62 x 47.5

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
