1120173

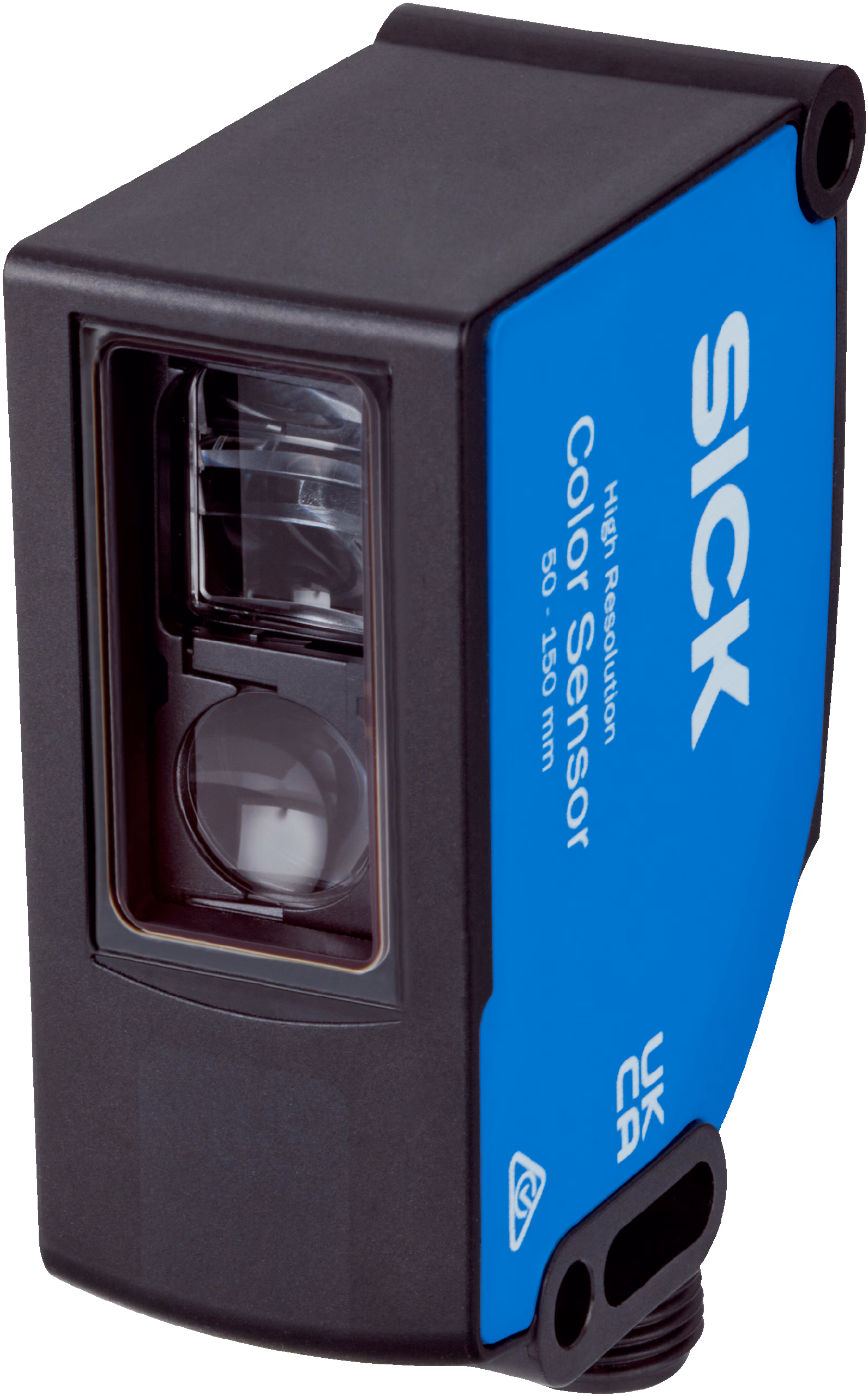

SICK 1120173 / CSS-WBG4C4115AA10Z is a color sensor in the CSS High Resolution family. Light source: LED; Housing design: Small; Communication interface: IO-Link; Sensing distance: 150 mm; Switching output: Push-pull: PNP/NPN; Light spot size: Ø 3.5 mm... 6.5 mm; Light spot direction: Round; Light emission: Long side of housing; Connection type Detail: Plug, M12, 5-pin.

Manufacturer

Sick

Part number

1120173

Product family

CSS High Resolution

Category

Color sensors

Technical details

Supply voltage: 10.8 V DC... 28.8 V DC; Switching output: Push-pull: PNP/NPN; Switching output (voltage): Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V; Response time: 120 µs; Dimensions (W x H x D): 26 mm x 62 mm x 47.5 mm; Connection type: Plug, M12, 5-pin; Enclosure rating: IP67; Housing material: VISTAL®; Ambient operating temperature: –20 °C... +55 °C; Weight: 70 g; Parameter presettings: None; Housing design: Small; Light source: LED, RGB; Light emission: Long side of housing

Weight

0.07 kg

Dimensions

26 x 62 x 47.5
