1097438

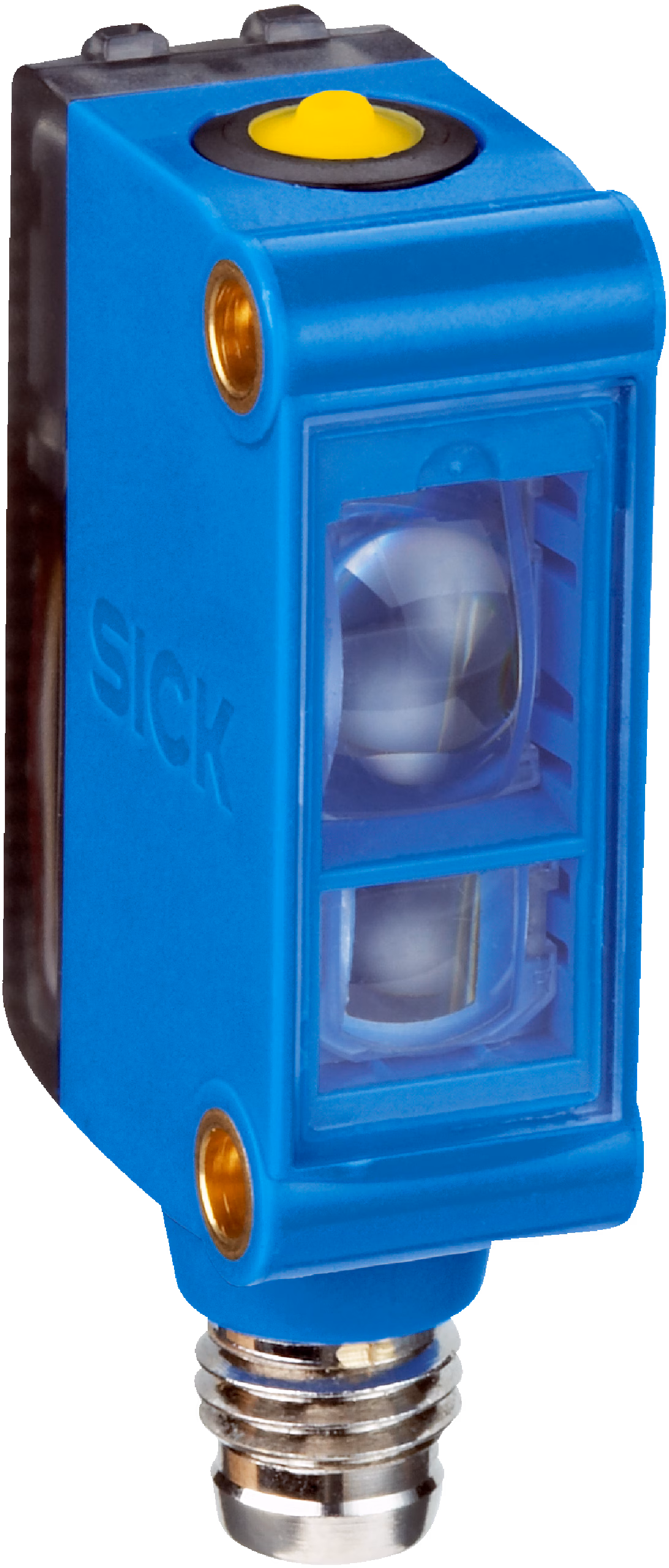

SICK 1097438 / CSM-WP117A1P is an archive in the CSM family. Color sensors; Light source: LED; Housing design: Small; Communication interface: IO-Link; Sensing distance: 12.5 mm; Switching output: PNP; Light spot size: 1.5 mm x 6.5 mm; Light spot direction: Vertical; Light emission: Long side of housing; Connection type Detail: Male connector M8, 4-pin; Output (channel): 8 colors via IO-Link; Adjustment: Teach-in button, cable, IO-Link.

Manufacturer

Sick

Part number

1097438

Product family

CSM

Category

Archive

Technical details

Supply voltage: 12 V DC... 24 V DC; Switching output: PNP; Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V; Response time: 300 µs; Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm; Connection type: Male connector M8, 4-pin; Enclosure rating: IP67; Housing material: ABS; Ambient operating temperature: –10 °C... +55 °C; Weight: Approx. 20 g; Housing design: Small; Light source: LED, RGB; Light emission: Long side of housing; Light spot size: 1.5 mm x 6.5 mm

Weight

0.02 kg

Dimensions

12 x 31.5 x 21
