1097274

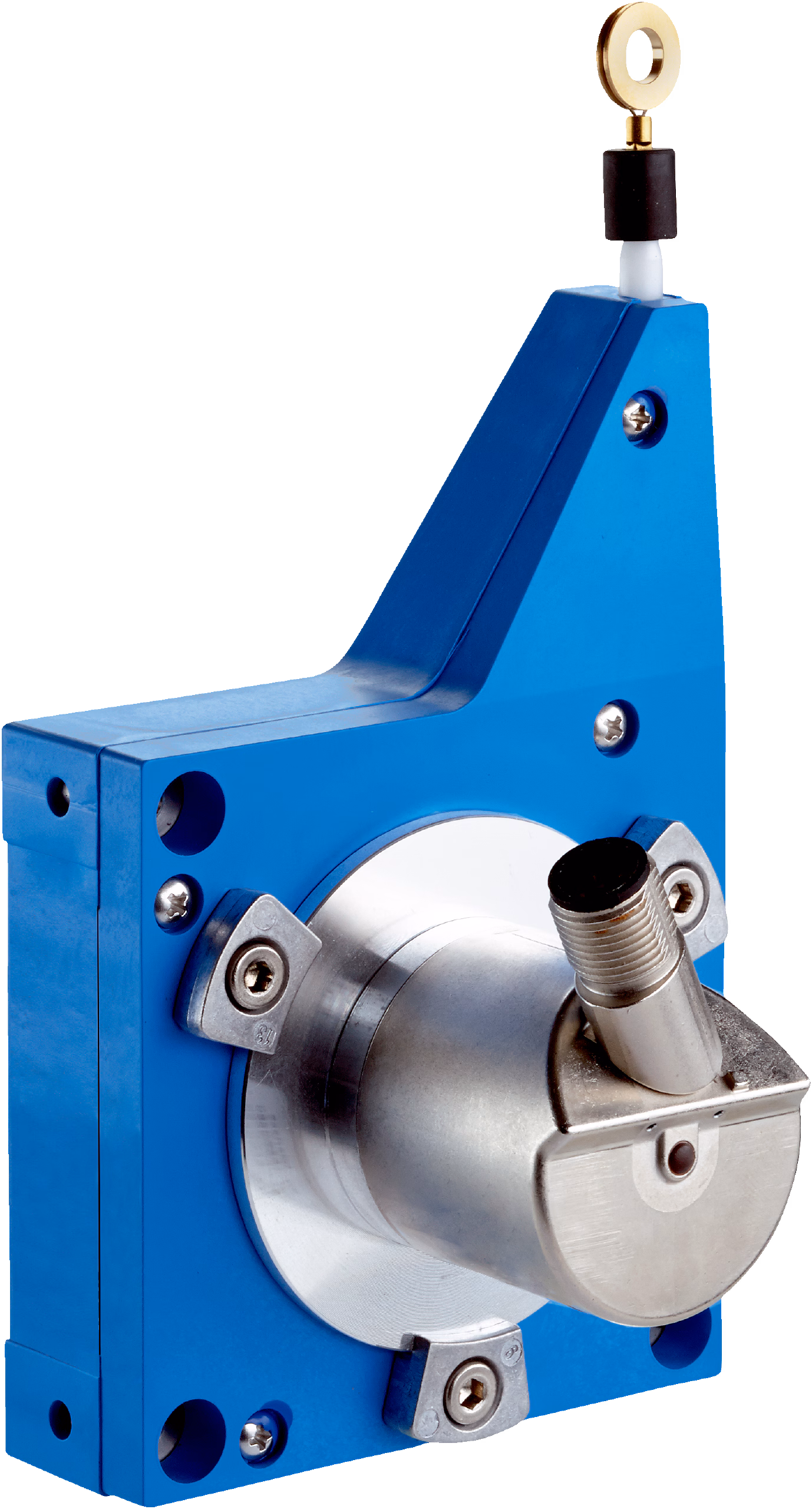

SICK 1097274 / BCG08-Q1PM0361 is a wire draw encoder in the EcoLine family. Measuring range: 0 m... 3 m; Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud); Supply voltage: 18 V... 30 V; Connection type: Male connector, M12, 4-pin, universal; Mounted encoder: AHM36 IO-Link Basic, AHM36B-S3QC012X12, 1092014; Mounted mechanic: MRA-G080-103D3, 5322778; Programmable/configurable: yes.

Manufacturer

Sick

Part number

1097274

Product family

EcoLine

Category

Wire draw encoders

Technical details

Measurement range: 0 m... 3 m; Resolution (wire draw + encoder): 0.06 mm; Supply voltage: 18 V... 30 V; Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud); Repeatability: ≤ 0.2 mm; Connection type: Male connector, M12, 4-pin, universal; Enclosure rating: IP50, mounted mechanic; IP65, Encoder (IEC 60529); Housing material, wire draw mechanism: Plastic, Noryl; Weight: 0.37 kg; MTTFD (mean time to dangerous failure): 240 years (EN ISO 13849-1); Encoder: Absolute encoders; Linearity: ≤ ± 2 mm; Hysteresis: ≤ 0.4 mm; Programmable/configurable: ✔

Weight

0.37 kg
