1056983

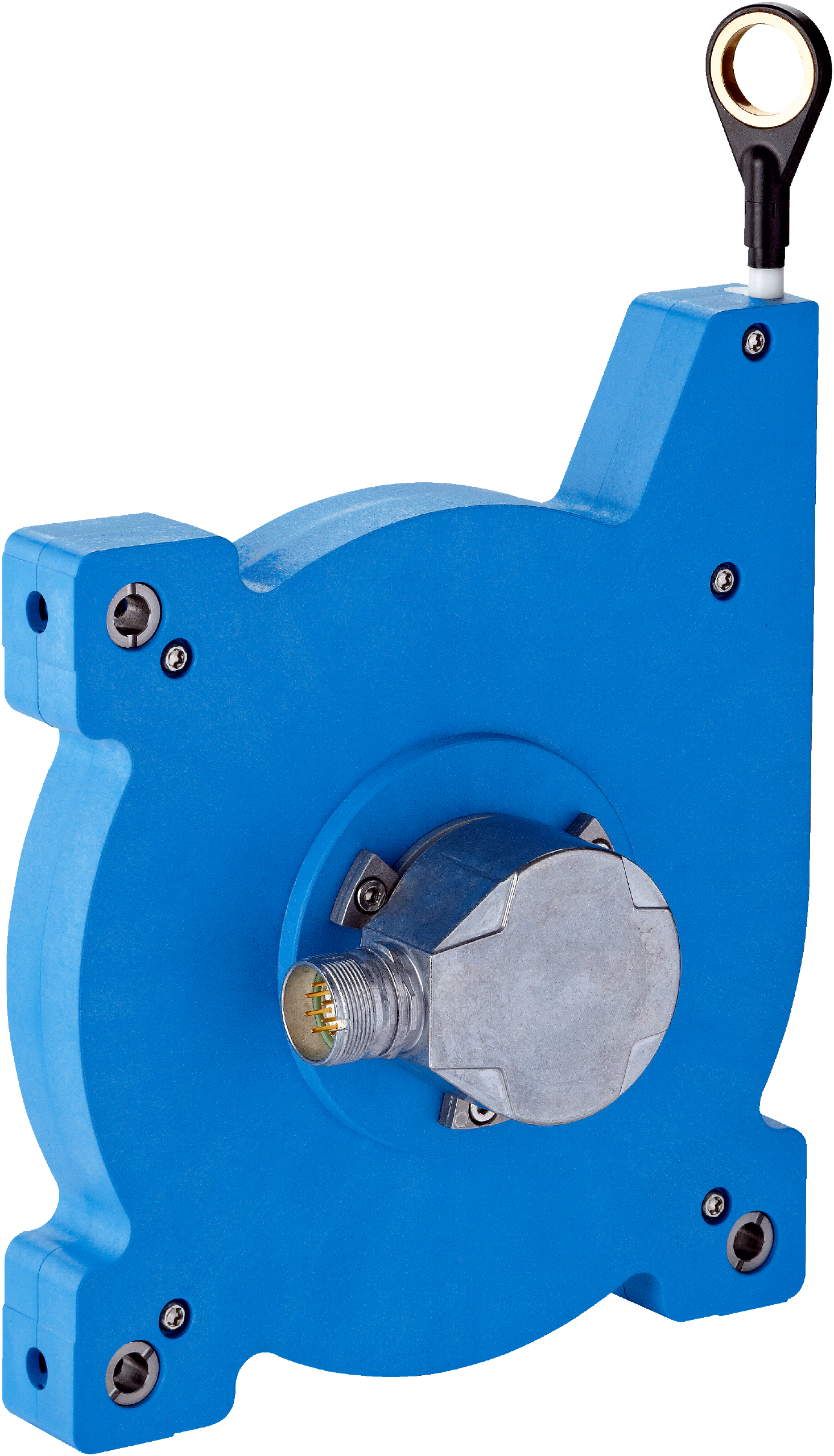

SICK 1056983 / BCG19-A1AM1007 is a wire draw encoder in the EcoLine family. Measuring range: 0 m... 10 m; Communication interface: SSI; Supply voltage: 4.5 V DC... 32 V DC; Connection type: Male connector, M23, 12-pin, radial; Mounted encoder: AFM60 SSI, AFM60B-S1AA004096, 1037868; Mounted mechanic: MRA-G190-110D3, 5326242; Programmable/configurable: no.

Manufacturer

Sick

Part number

1056983

Product family

EcoLine

Category

Wire draw encoders

Technical details

Measurement range: 0 m... 10 m; Resolution (wire draw + encoder): 0.14 mm; Supply voltage: 4.5 V DC... 32 V DC; Communication interface: SSI; Repeatability: ≤ 0.2 mm; Connection type: Male connector, M23, 12-pin, radial; Enclosure rating: IP50, mounted mechanic; IP67, Encoder (IEC 60529); Housing material, wire draw mechanism: Plastic, Noryl; Weight: 2.2 kg; MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1); Encoder: Absolute encoders; Linearity: ≤ ± 2 mm; Hysteresis: ≤ 0.4 mm; Power consumption: ≤ 0.7 W (without load)

Weight

2.2 kg
