1060984

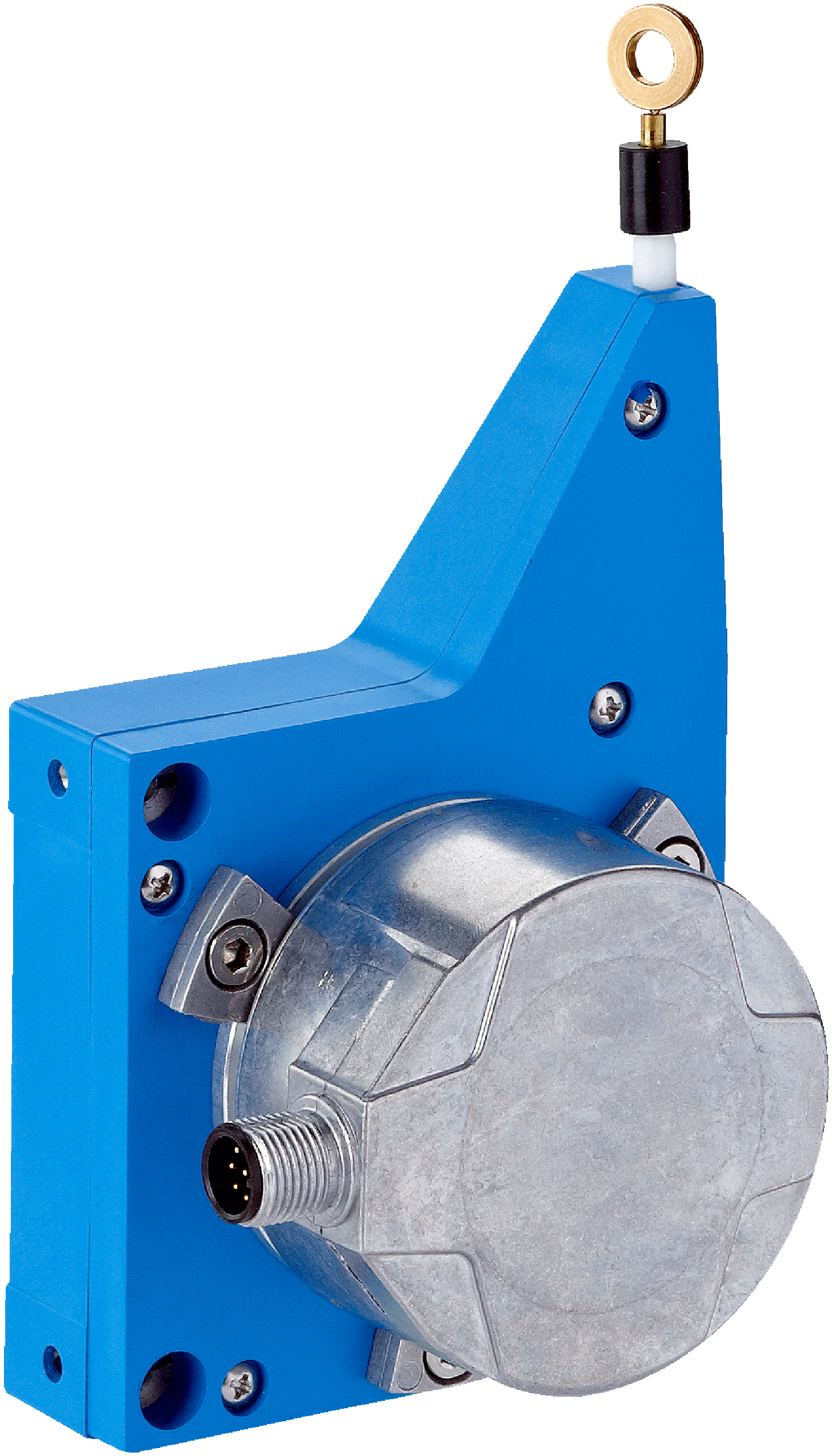

SICK 1060984 / PFG08-P1CM03PP is a wire draw encoder in the EcoLine family. Measuring range: 0 m... 3 m; Communication interface: Incremental / TTL / HTL; Supply voltage: 4.5 V... 32 V; Connection type: Male connector, M12, 8-pin, radial; Mounted encoder: DFS60, DFS60A-S1PC65536, 1036761; Mounted mechanic: MRA-G080-103D3, 5322778; Programmable/configurable: yes.

Manufacturer

Sick

Part number

1060984

Product family

EcoLine

Category

Wire draw encoders

Technical details

Measurement range: 0 m... 3 m; Resolution (wire draw + encoder): 0.0035 mm; Supply voltage: 4.5 V... 32 V; Communication interface: Incremental / TTL / HTL; Repeatability: ≤ 0.2 mm; Connection type: Male connector, M12, 8-pin, radial; Enclosure rating: IP50, mounted mechanic; IP67, Encoder (IEC 60529); Housing material, wire draw mechanism: Plastic, Noryl; Weight: 0.55 kg; MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1); Encoder: Incremental encoders; Linearity: ≤ ± 2 mm; Hysteresis: ≤ 0.4 mm; Programmable/configurable: ✔

Weight

0.55 kg
