1060971

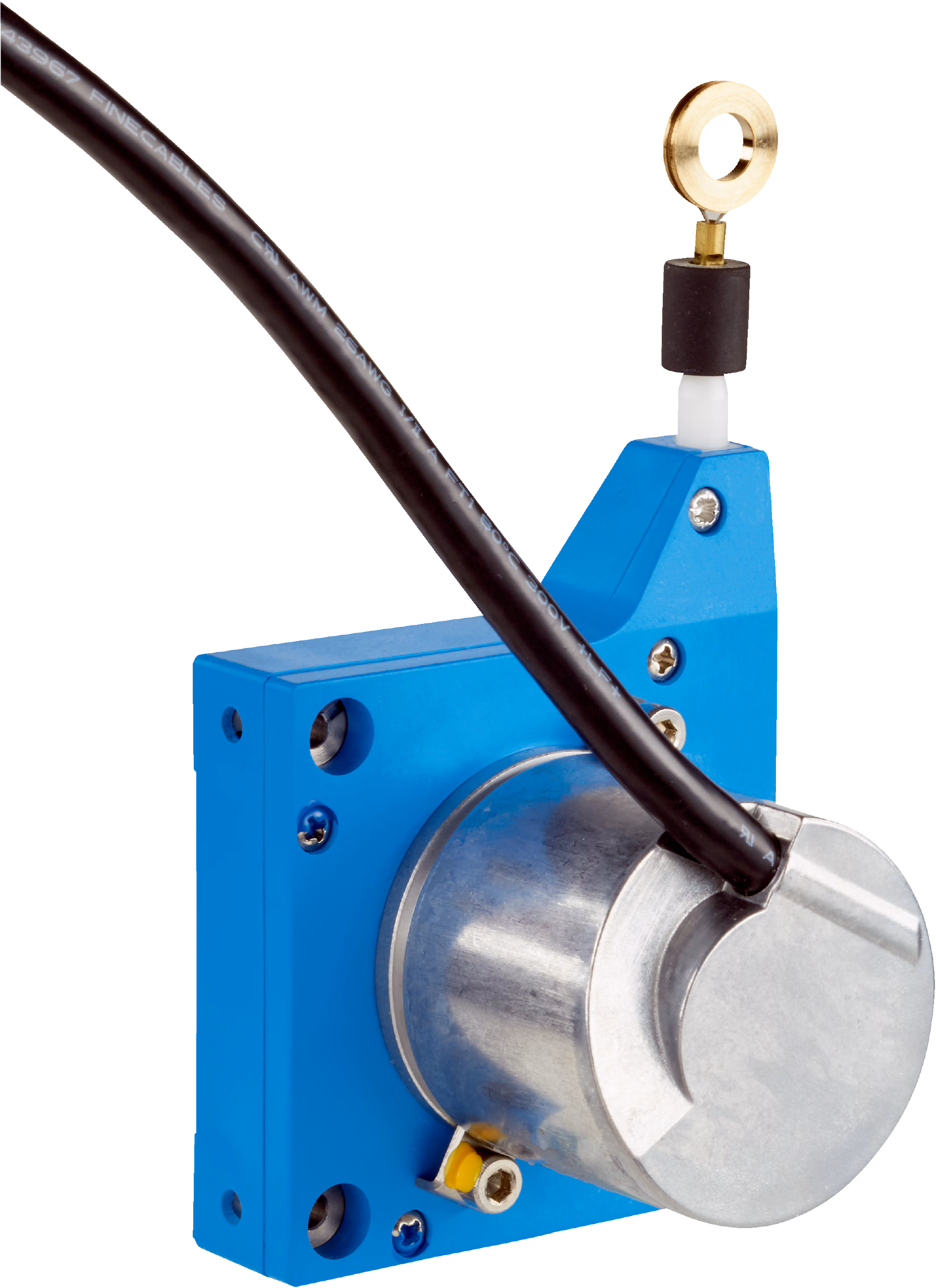

SICK 1060971 / PFG05-E1KM0160 is a wire draw encoder in the EcoLine family. Measuring range: 0 m... 1.25 m; Communication interface: Incremental / HTL / Push-Pull; Supply voltage: 7 V... 30 V; Connection type: Cable, 8-wire, universal, 1.5 m; Mounted encoder: DBS36 Core, DBS36E-SDEK02500, 1064246; Mounted mechanic: MRA-G055-101D4, 5324019; Programmable/configurable: no.

Manufacturer

Sick

Part number

1060971

Product family

EcoLine

Category

Wire draw encoders

Technical details

Measurement range: 0 m... 1.25 m; Resolution (wire draw + encoder): 0.06 mm; Supply voltage: 7 V... 30 V; Communication interface: Incremental / HTL / Push-Pull; Repeatability: ≤ 0.2 mm; Connection type: Cable, 8-wire, universal, 1.5 m; Enclosure rating: IP50, mounted mechanic; IP65, Encoder; Housing material, wire draw mechanism: Plastic, Noryl; Weight: 0.23 kg; MTTFD (mean time to dangerous failure): 600 years (EN ISO 13849-1); Encoder: Incremental encoders; Linearity: ≤ ± 2 mm; Hysteresis: ≤ 0.4 mm; Power consumption: ≤ 0.5 W (without load)

Weight

0.23 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
