VLSH1S5B

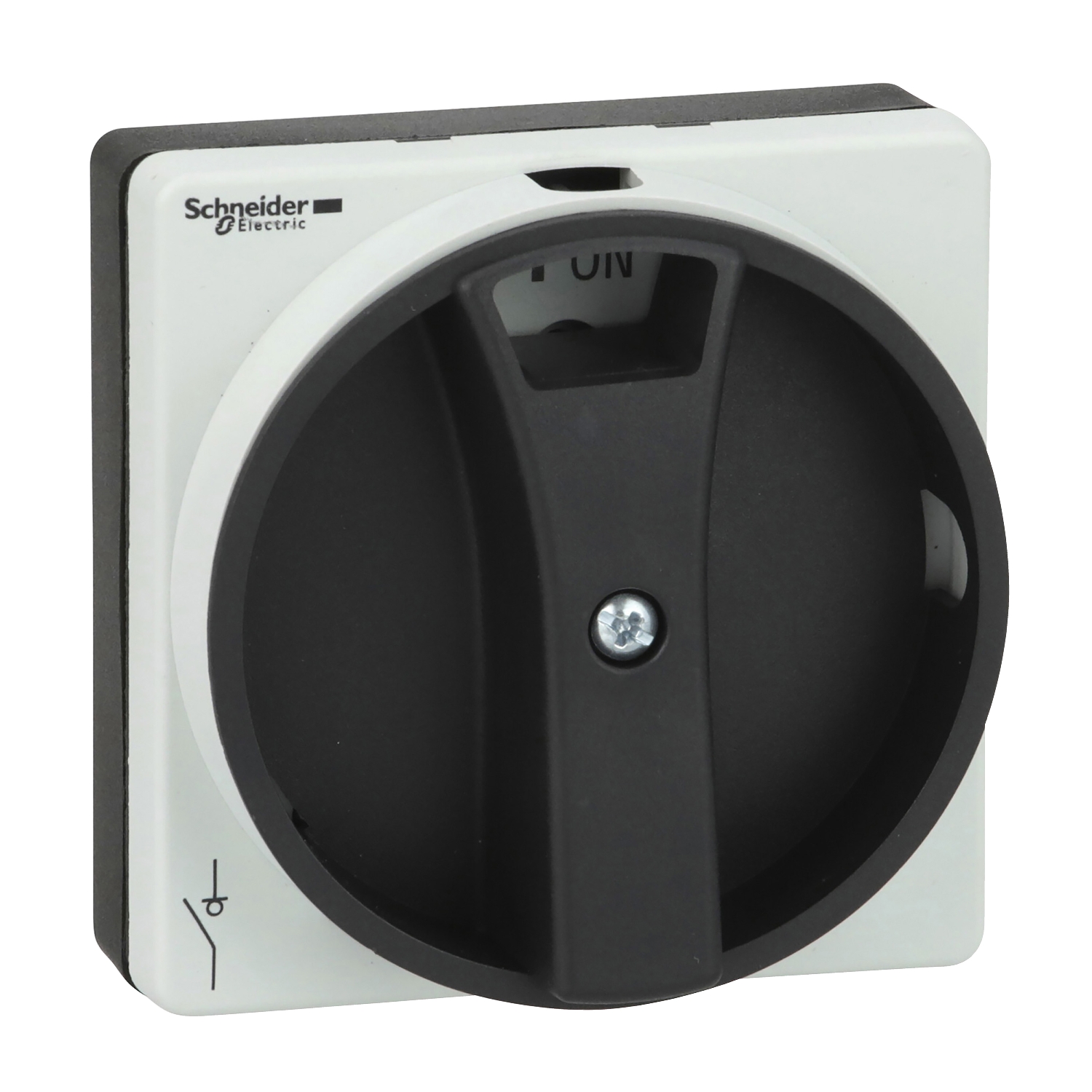

Schneider Electric VLSH1S5B: These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black rotary handle will work with any VLS3P disconnect switch. This 2.56 inch by 2.56 inch handle is mounted using four screws. 5 mm shafts are used with this handle. The front plate is grey in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 1.81 inches deep. The handle weighs 0.16 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.

Manufacturer

Schneider Electric

Part number

VLSH1S5B

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Current: 16A, 125A, 25A, 32A, 40A; Dimensions: 65x65 mm; Published sizes: 5 mm; Ingress protection: IP65; Colour: black, grey; Official designation: Disconnect switch, TeSys VLS, recessed rotary handle, screw mounting, 65x65 mm, black handle, 5 mm shaft
