NSYTRP22SC

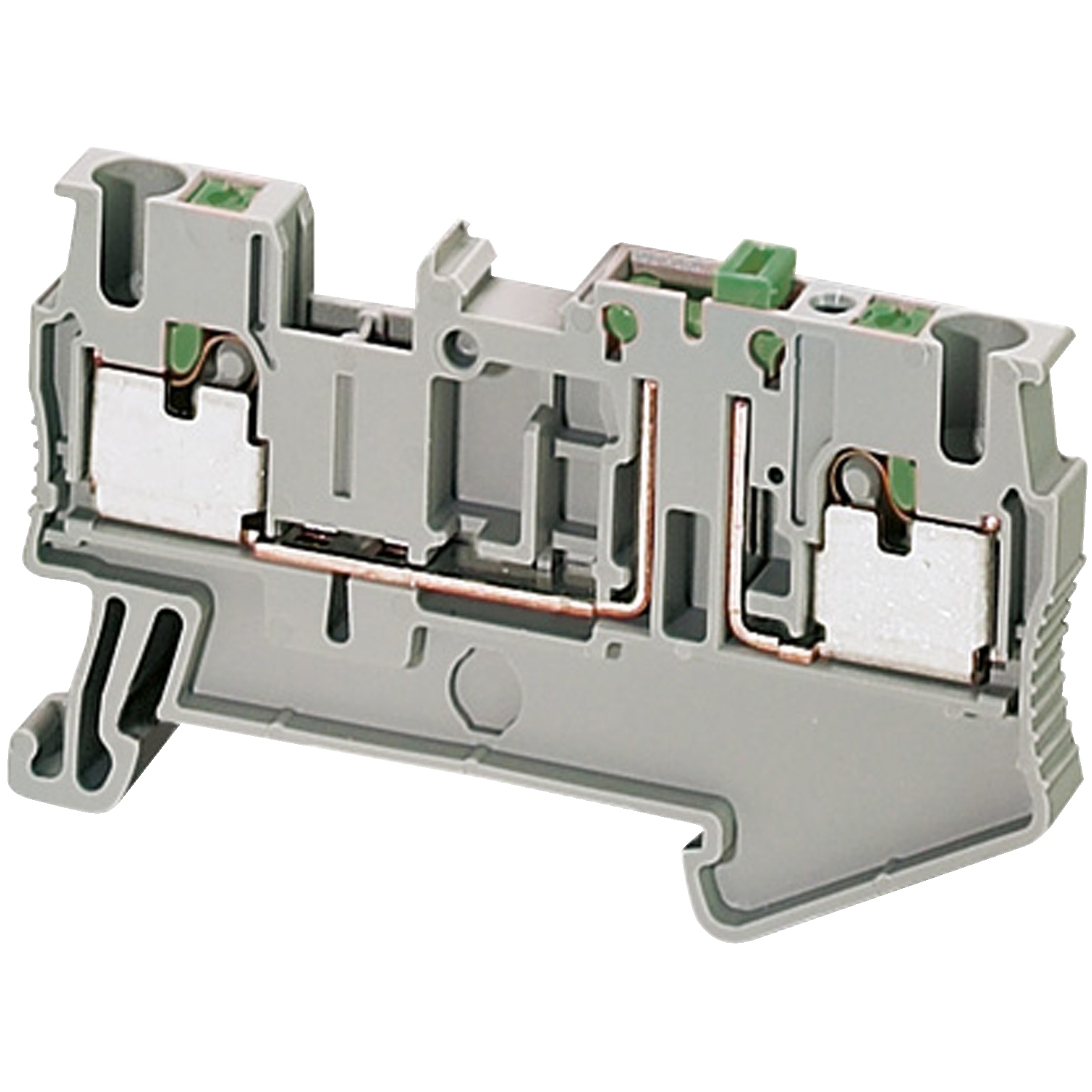

Schneider Electric NSYTRP22SC: Linergy TR is terminal block for Blade Disconnect type. It belongs to linergy blade Disconnect terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/UL and 400V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, LR, GL, IEC-Ex). It is compliant with Green Premium (RoHS/REACH).
