NSYTRP22TB

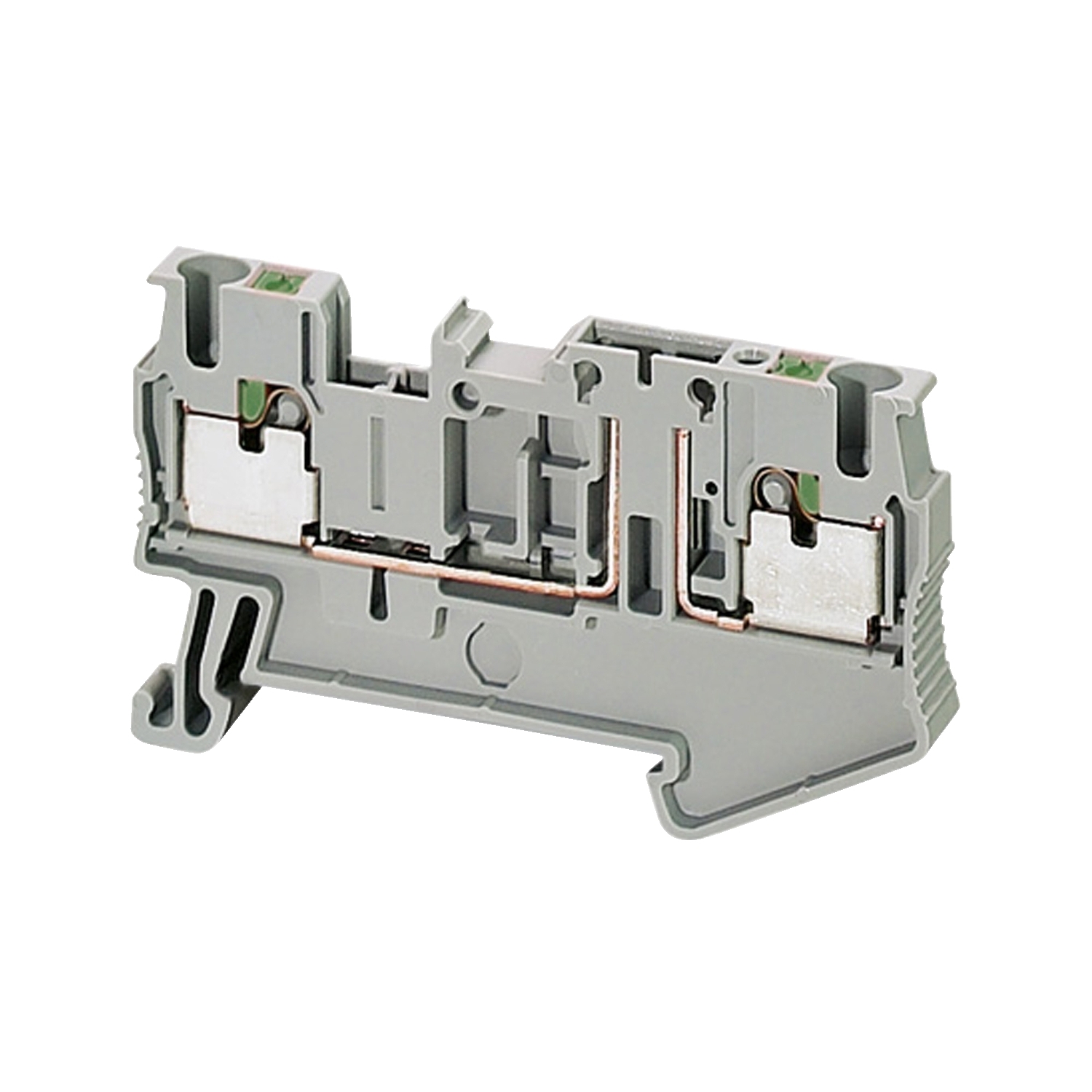

Schneider Electric NSYTRP22TB: Linergy TR is terminal block for Disconnect for carrier type. It belongs to linergy carrier Disconnect terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/UL and 400V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, LR, GL, IEC-Ex). It is compliant with Green Premium (RoHS/REACH).

Manufacturer

Schneider Electric

Part number

NSYTRP22TB

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Voltage: 300V, 400V; Current: 20A; Published sizes: 2.5mm; Temperature: -40 to 130 °C; Colour: grey, Green; Pack / set: set of 50; Official designation: Terminal block Linergy TR, push-in type, basic disconnect terminal, 2 points, 2.5mm², grey, set of 50
