NSYTRV702

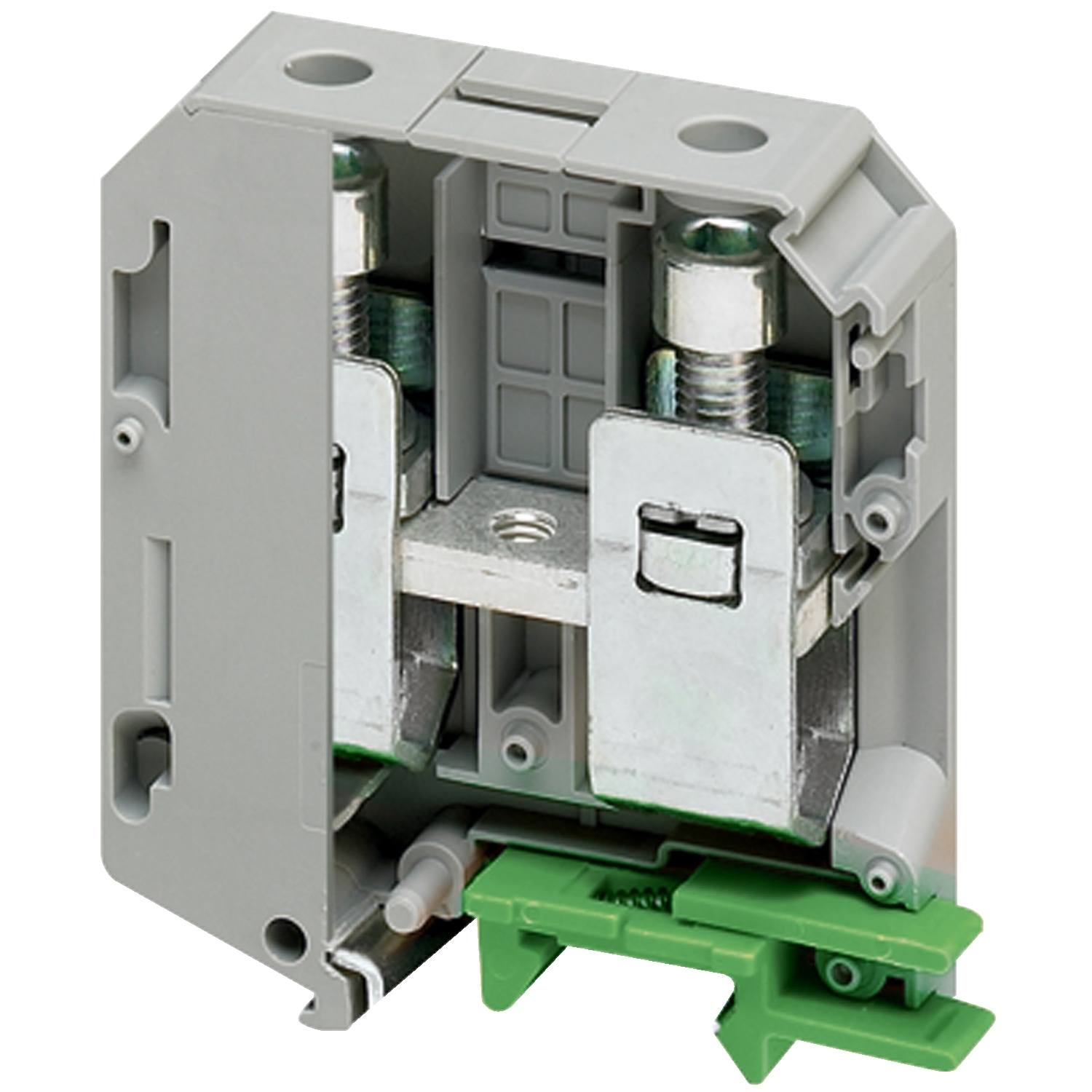

Schneider Electric NSYTRV702: Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 70 mm² nominal cross section. The rated operational voltage is 600V conforming to cURus, 1000V conforming to CSA and 1000V conforming to EN/IEC 60947-7-1. The rated current is 192A conforming to EN/IEC 60947-7-1 and 192A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 10 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Manufacturer

Schneider Electric

Part number

NSYTRV702

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Voltage: 600V, 1000V; Current: 192A; Published sizes: 70MM; Temperature: -40 to 130 °C; Colour: GREY, Green; Official designation: SCREW TERMINAL, FEED THROUGH, 2 POINTS, 70MM², GREY

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
