NSYTRV42SF6LA

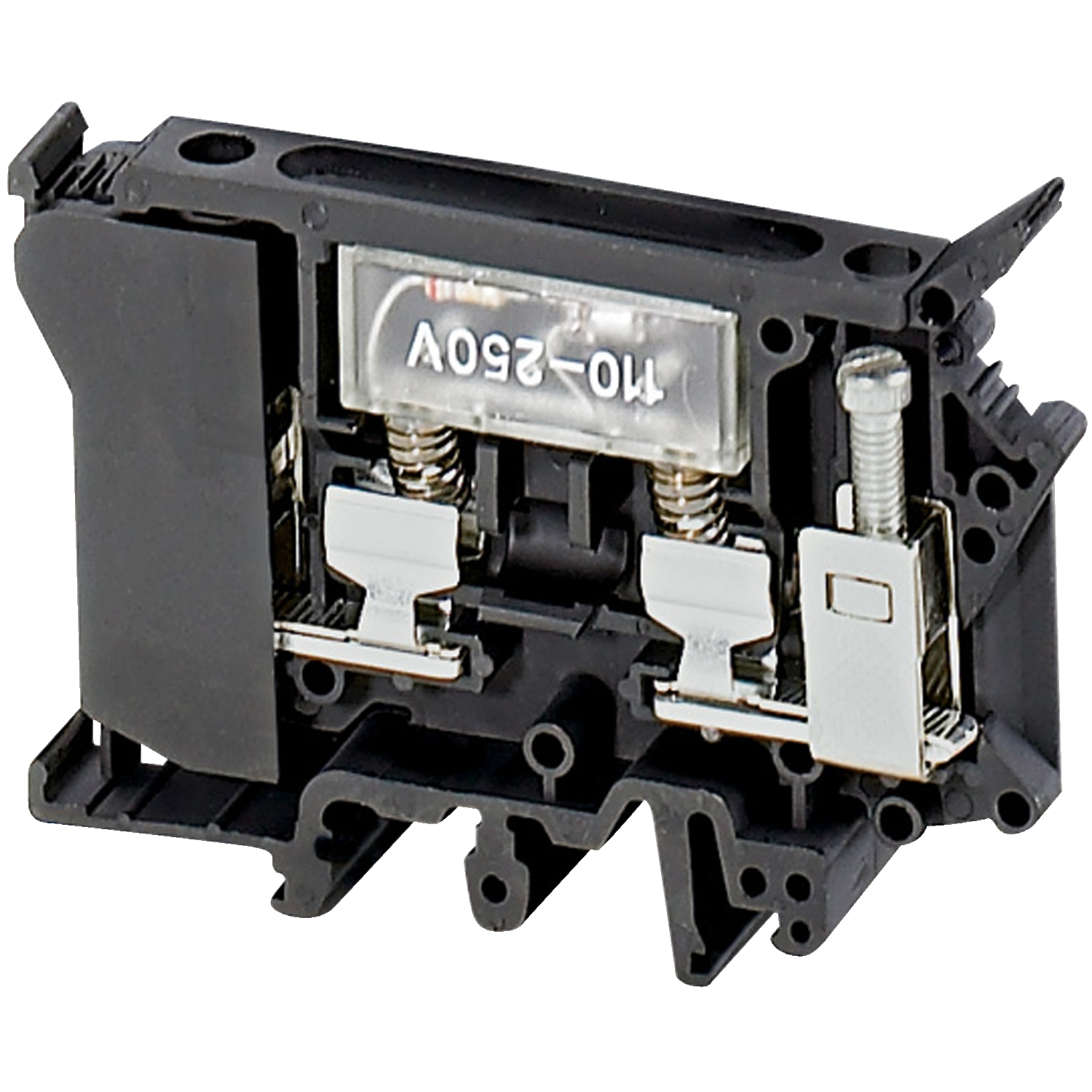

Schneider Electric NSYTRV42SF6LA: Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 16 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 10A conforming to EN/IEC 60947-7-1 and 10A conforming to CSA/UL. It has black surface treatment. Mounting by clip-on and sideways connection with 6.3x32 mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).

Manufacturer

Schneider Electric

Part number

NSYTRV42SF6LA

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Voltage: 110 to 250V, 600V, 500V; Current: 10A; Dimensions: 6.3x32mm; Published sizes: 4mm, 16 mm; Temperature: -40 to 130 °C; Colour: black; Pack / set: Pack 250; Official designation: Terminal block, Linergy TR, fused disconnect type, for 6.3x32mm fuse, with led 110 to 250V, 2 points, 4mm², black

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
