NSYTRV42SF5

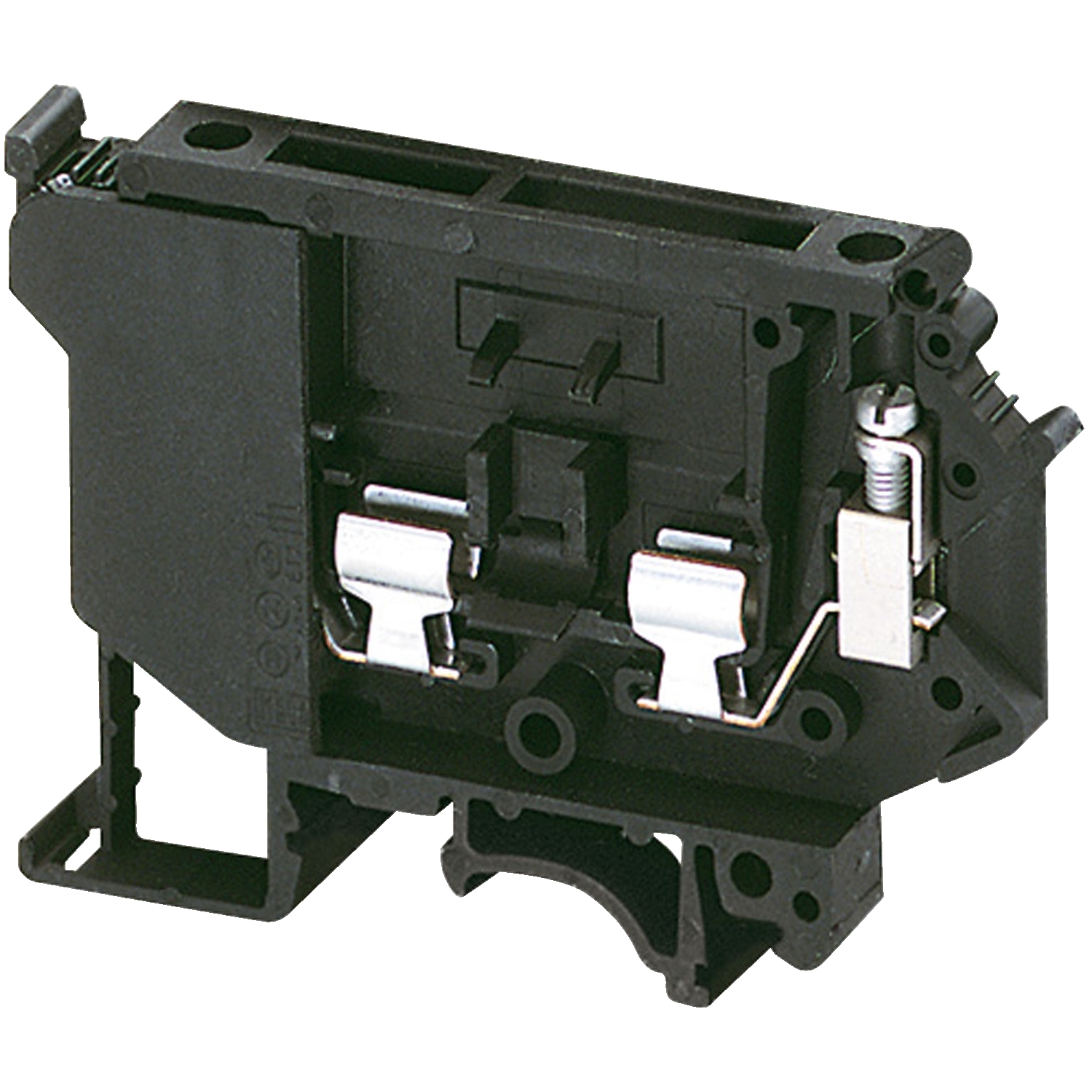

Schneider Electric NSYTRV42SF5: Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).

Manufacturer

Schneider Electric

Part number

NSYTRV42SF5

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Voltage: 600V, 500V; Current: 6.3A, 12A; Dimensions: 5x25,5x30mm, 5x20mm; Published sizes: 4mm; Temperature: -40 to 130 °C; Colour: black, Green; Official designation: Terminal block, Linergy TR, fused disconnect type, for 5x20,5x25,5x30mm cartridge fuse, 2 points, 4mm², black
