NSYTRV22ST

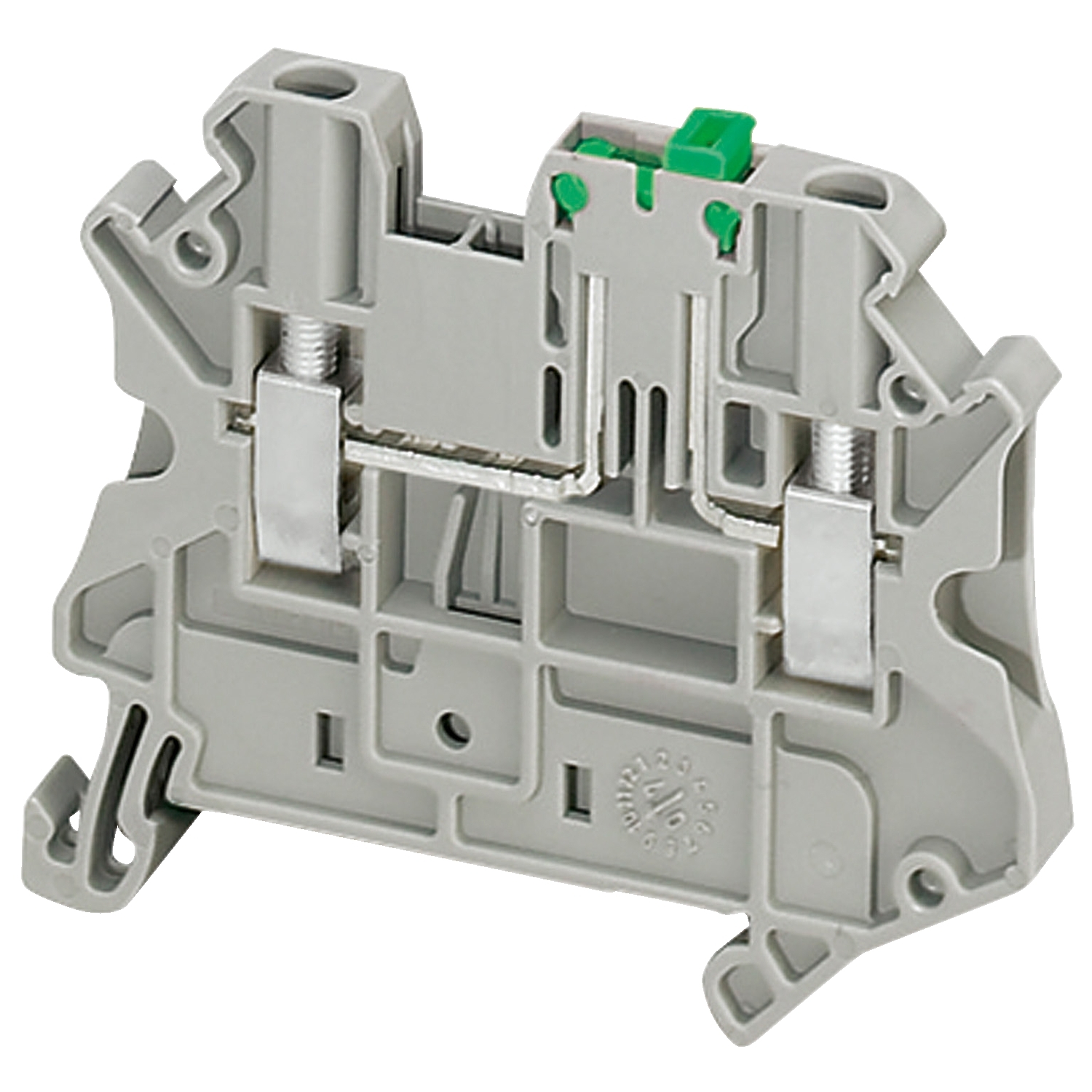

Schneider Electric NSYTRV22ST: Linergy TR is terminal block for Linergy. It belongs to knife disconnect block with 2.5 mm² nominal cross section. It has grey surface treatment. The rated current is 16A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).

Manufacturer

Schneider Electric

Part number

NSYTRV22ST

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Current: 16A, 20A; Published sizes: 2,5MM, 2.5 mm; Temperature: -40 to 130 °C; Colour: GREY; Pack / set: Pack 250; Official designation: SCREW TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², WITH TEST POINT, GREY
