NSYTRV22MBL

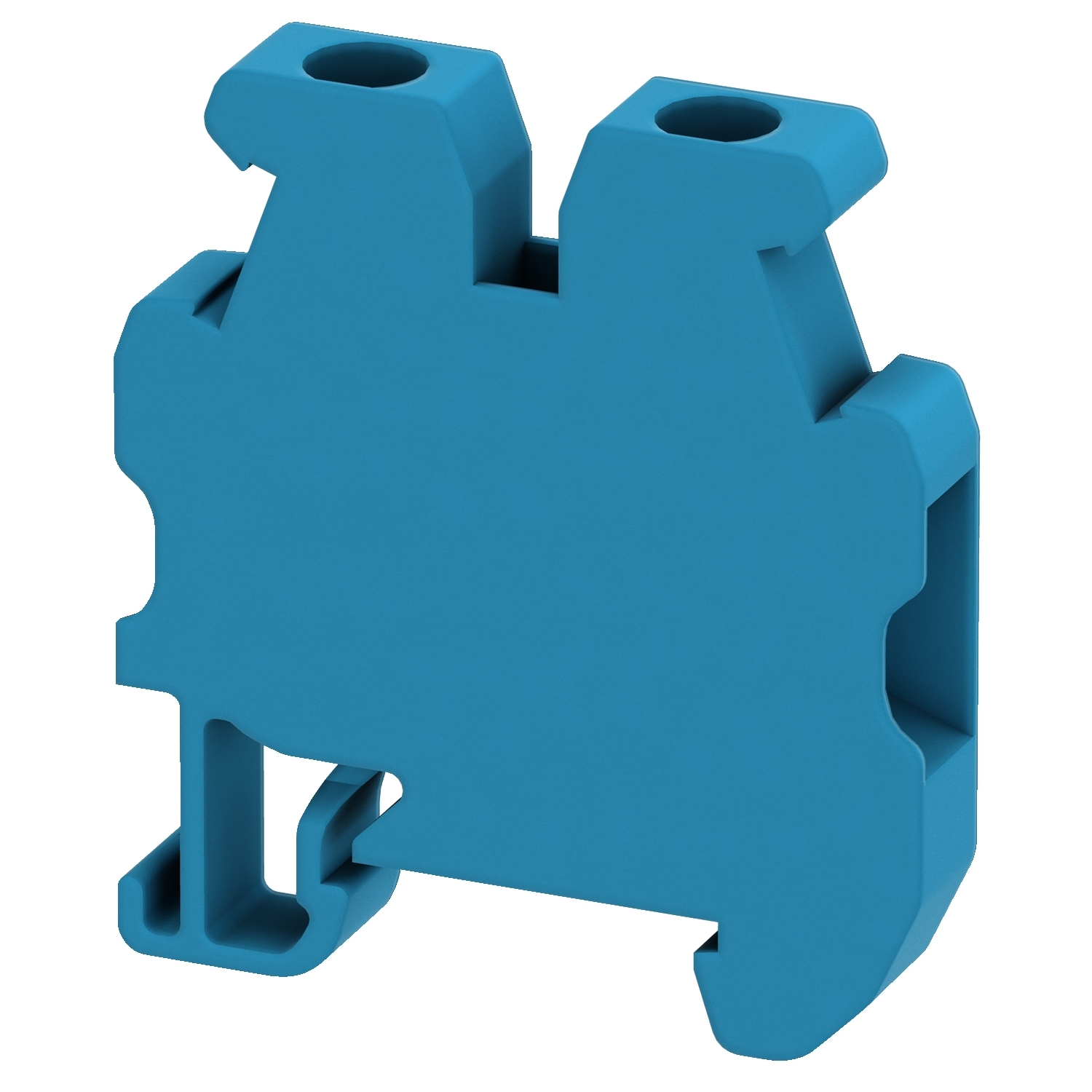

Schneider Electric NSYTRV22MBL: Linergy TR is terminal block for Miniature passthrough type. It belongs to linergy Miniature passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has Blue surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, LR, GL, IEC-Ex). It is compliant with Green Premium (RoHS/REACH).

Manufacturer

Schneider Electric

Part number

NSYTRV22MBL

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Voltage: 600V, 500V; Current: 24A, 20A; Published sizes: 2.5mm, 15mm; Temperature: -40 to 130 °C; Colour: blue, Green; Pack / set: set of 50, Pack 250; Official designation: Mini terminal block, Linergy TR, screw type, feed through, 2 points, 2.5mm², for 15mm din rail, blue, set of 50
