NSYTRV162

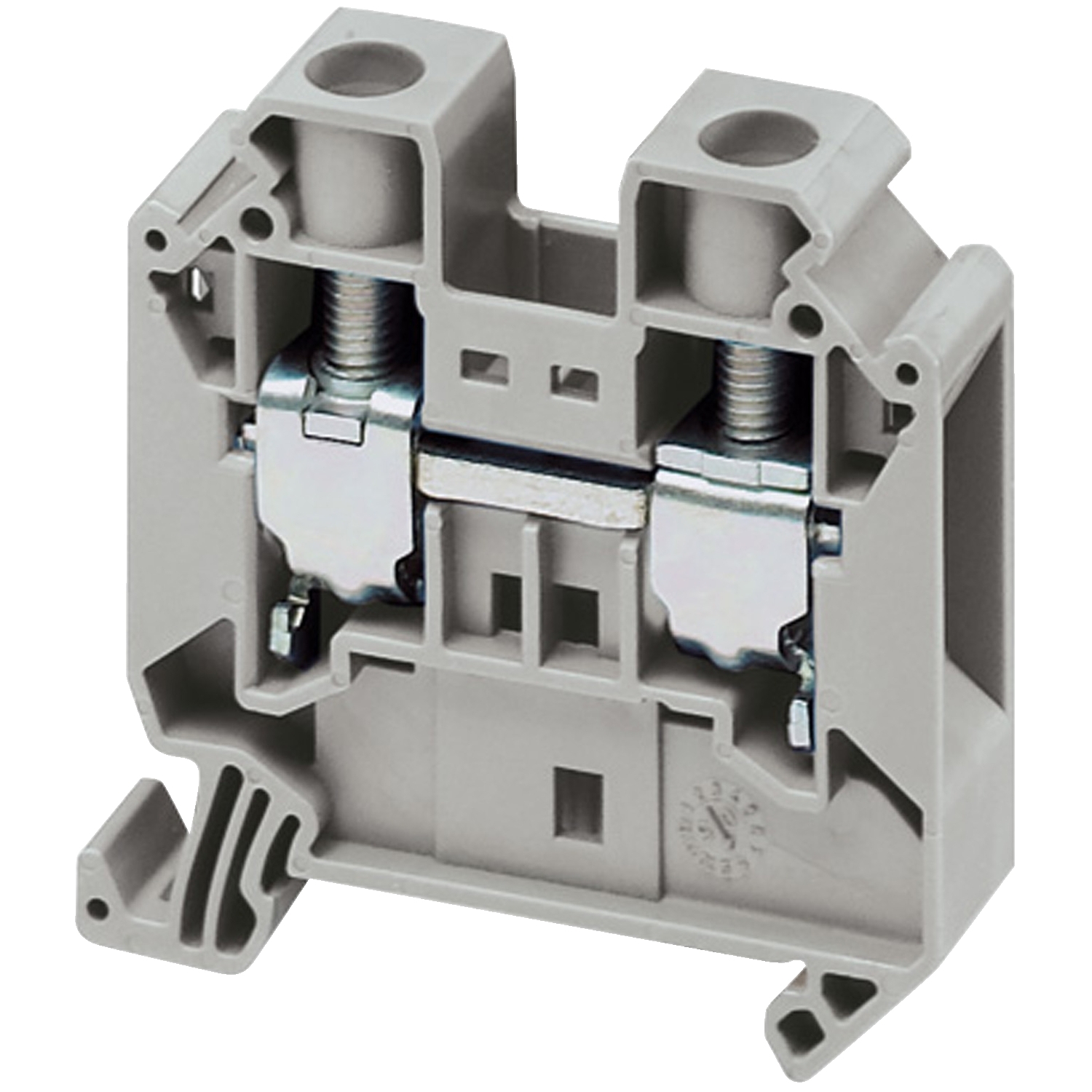

Schneider Electric NSYTRV162: Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 16 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 76A conforming to EN/IEC 60947-7-1, 85A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Manufacturer

Schneider Electric

Part number

NSYTRV162

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Voltage: 600V, 1000V, 690V; Current: 76A, 85A, 22A; Published sizes: 16mm; Temperature: -40 to 130 °C; Colour: grey, Green; Pack / set: set of 10; Official designation: Terminal block, Linergy TR, grey, 16mm², passthrough, 2 points, set of 10
