NSYTRR42

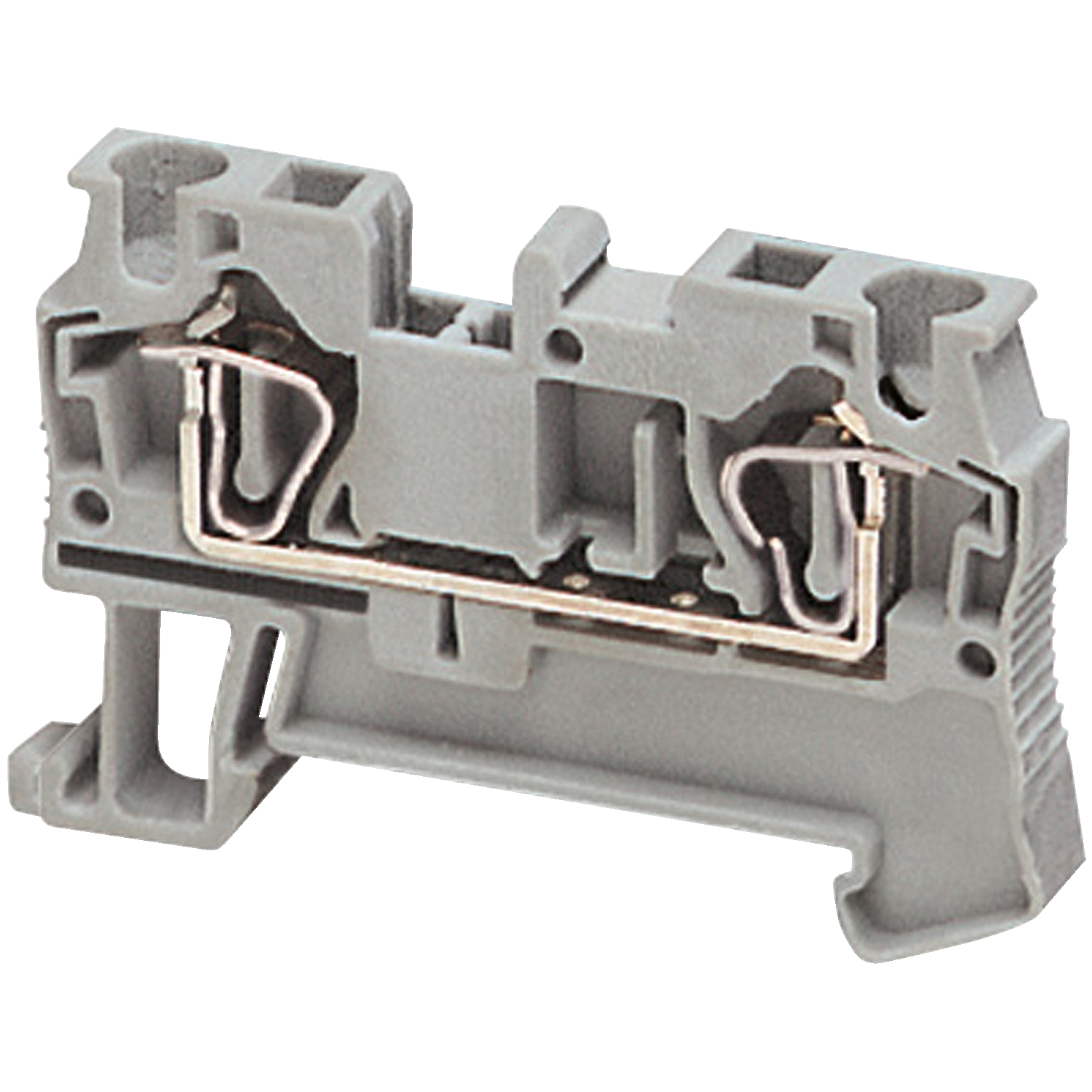

Schneider Electric NSYTRR42: Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1 and 30A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Manufacturer

Schneider Electric

Part number

NSYTRR42

Product family

TeSys

Category

Contactors & Motor Control

Technical details

Range: TeSys; Voltage: 600V, 800V; Current: 32A, 30A; Published sizes: 4MM; Temperature: -40 to 130 °C; Colour: GREY, Green; Official designation: SPRING TERMINAL, FEED THROUGH, 2 POINTS, 4MM², GREY
