NSYTRR22SC

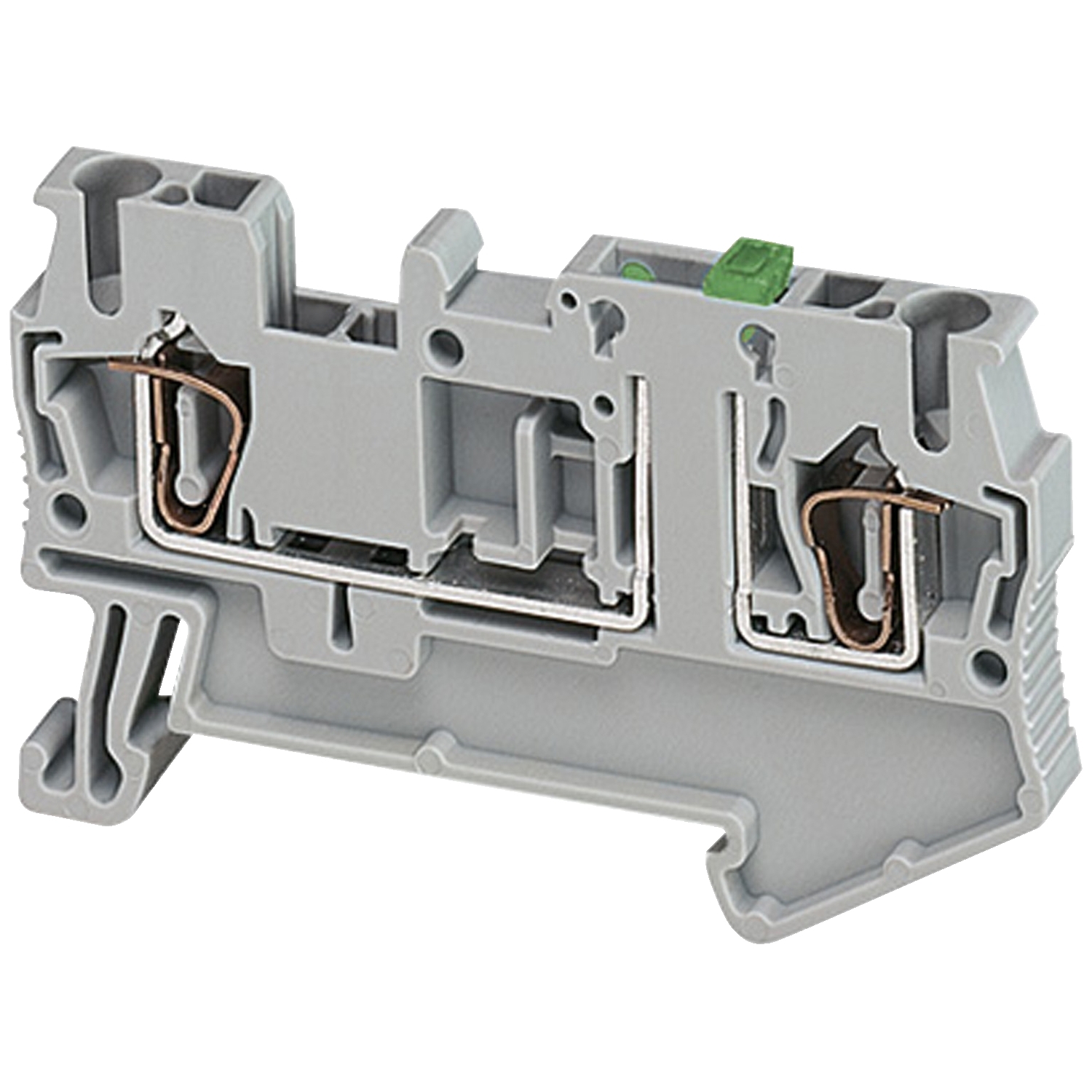

Schneider Electric NSYTRR22SC: Linergy TR is terminal block for Linergy. It belongs to linergy knife disconnect terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA, 600V conforming to UL and 400V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 16A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, LR, DNV). It is compliant with Green Premium (RoHS/REACH).
