NSYTRP24DBL

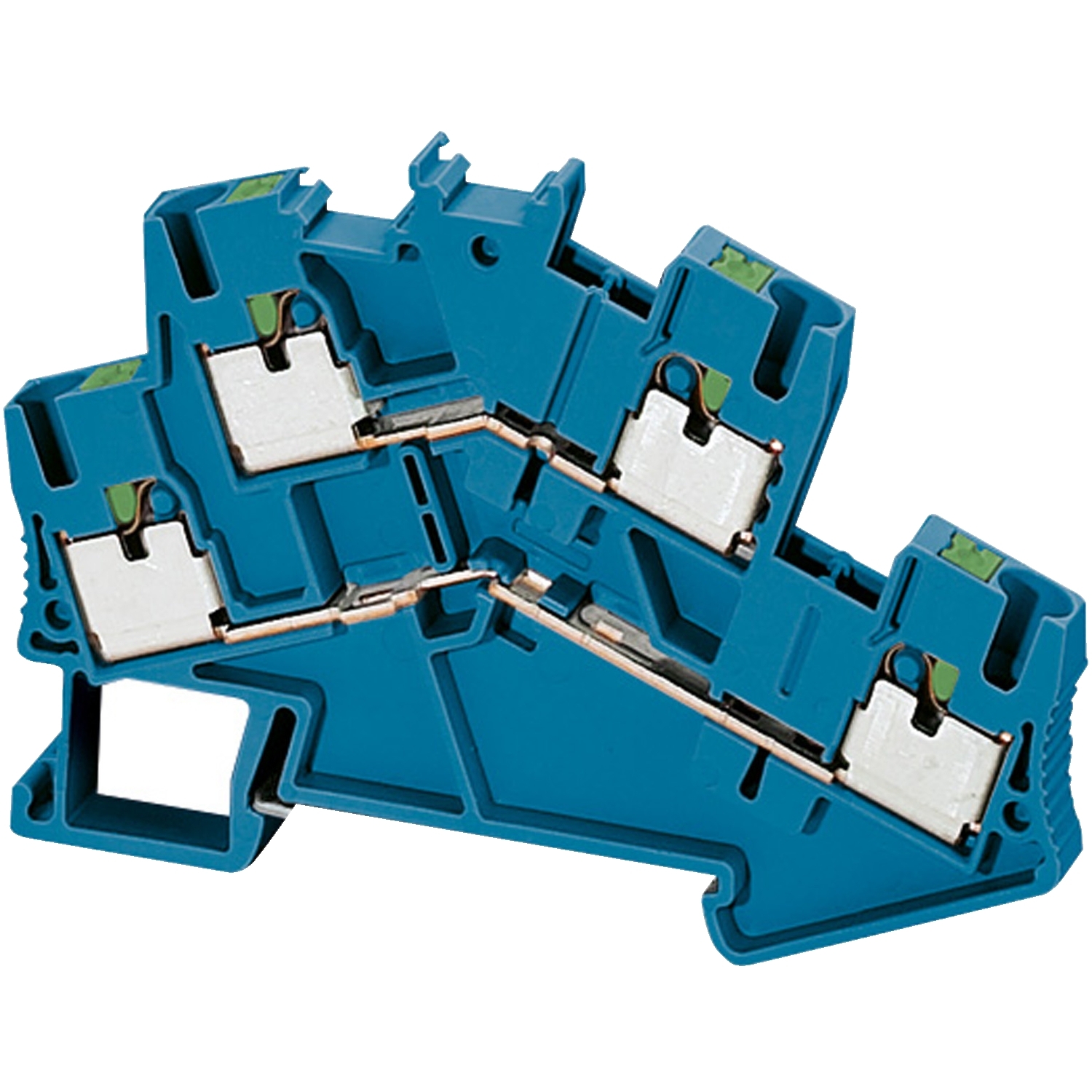

Schneider Electric NSYTRP24DBL: Linergy TR is terminal block for Passthrough type. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 22A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. The surface blue surface treatment Mounting by clip-on and top connection by Two-level 2x2 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, LR, GL, IEC-Ex). It is compliant with Green Premium (RoHS/REACH).
