BMI1002P36A

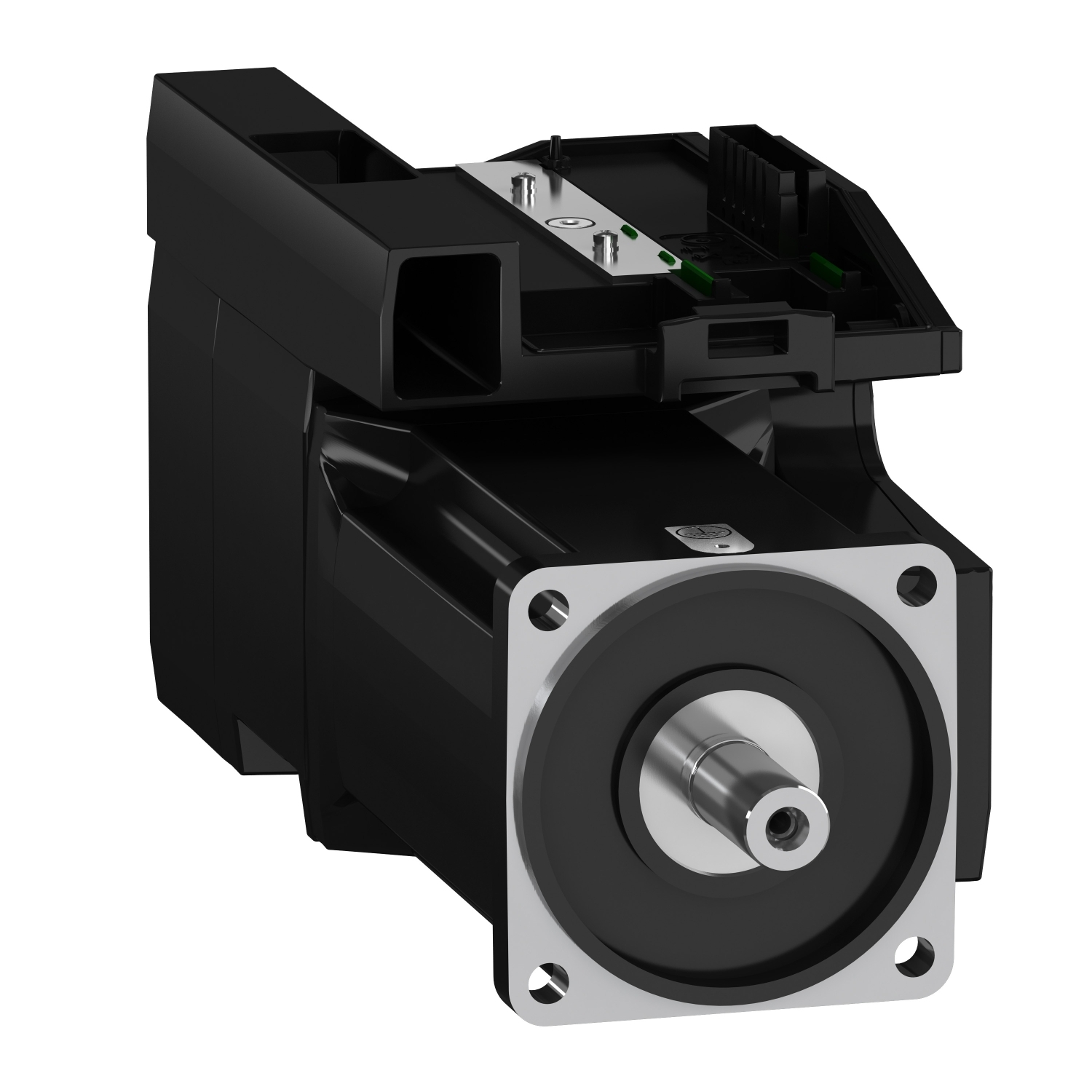

Schneider Electric BMI1002P36A is a servo motor BMI 3-phase - keyed IP65 single turn - 32768 p/t. This product is part of the Lexium 32i range, an offer of servo motors for integrated servo drive from 0.6kW to 2.2kW. The 10-pole servo motor features a medium moment of inertia with a maximum mechanical speed of 6000RPM and keyed shaft without holding brake.

Manufacturer

Schneider Electric

Part number

BMI1002P36A

Product family

Lexium 32i

Category

Servo Motors

Technical details

The 10-pole servo motor features a medium moment of inertia with a maximum mechanical speed of 6000RPM and keyed shaft without holding brake; It is an equipped with a single-turn SinCos Hiperface® encoder (32,768 points/turn) for automatic transmission of data from the servo motor to the servo drive; It is a servo motor with a rated supply voltage of 208V to 480V, a continuous output current of 4A at 8kHz and maximum continuous power of 1.9kW; The shaft dimensions are 19mm (diameter) x 40mm (length); It is furnished with printed circuit board connector for electrical connection; It is an IP65 rated product; Its dimensions are 273mm (length) x 100mm (width) and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole
