BMI0702T06F

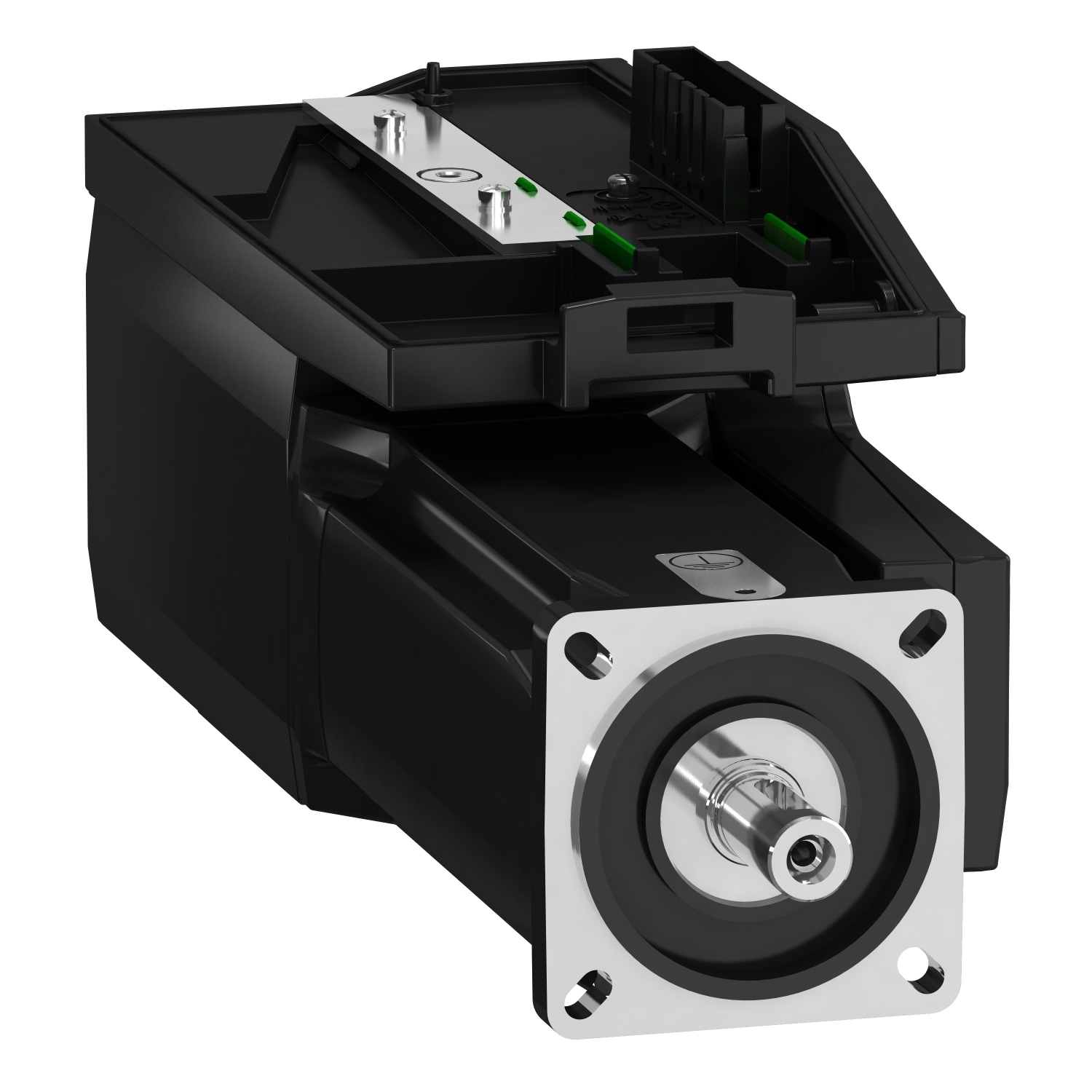

Schneider Electric BMI0702T06F is a servo motor BMI 1-phase - untapped IP54 single turn - 32768 p/t - brake. This product is part of the Lexium 32i range, an offer of servo motors for integrated servo drives. This synchronous motor has a maximum mechanical speed of 8000RPM, a smooth shaft, an IP54-rated shaft, an IP65-rated housing, and a holding brake.

Manufacturer

Schneider Electric

Part number

BMI0702T06F

Product family

Lexium 32i

Category

Servo Motors

Technical details

This synchronous motor has a maximum mechanical speed of 8000RPM, a smooth shaft, an IP54-rated shaft, an IP65-rated housing, and a holding brake; It is equipped with an absolute single-turn encoder, 16 sinusoidal periods per turn; This servomotor is optimized for handling medium to heavy loads efficiently Its output power is 240V, and its continuous stall current is 2.6A; It is furnished with printed circuit board connector for electrical connection; Its flange is 70x70mm, and it is a 2-stack length, and it weighs 4.50kg; This motor perfectly matches an integrated drive for high energy efficiency and precise consumption control; This servo motor with power stage is compatible with LXM32I control units and associated connection modules for power, fieldbus, network, I/O, and safety

Weight

4.5 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
