BMI0702P06F

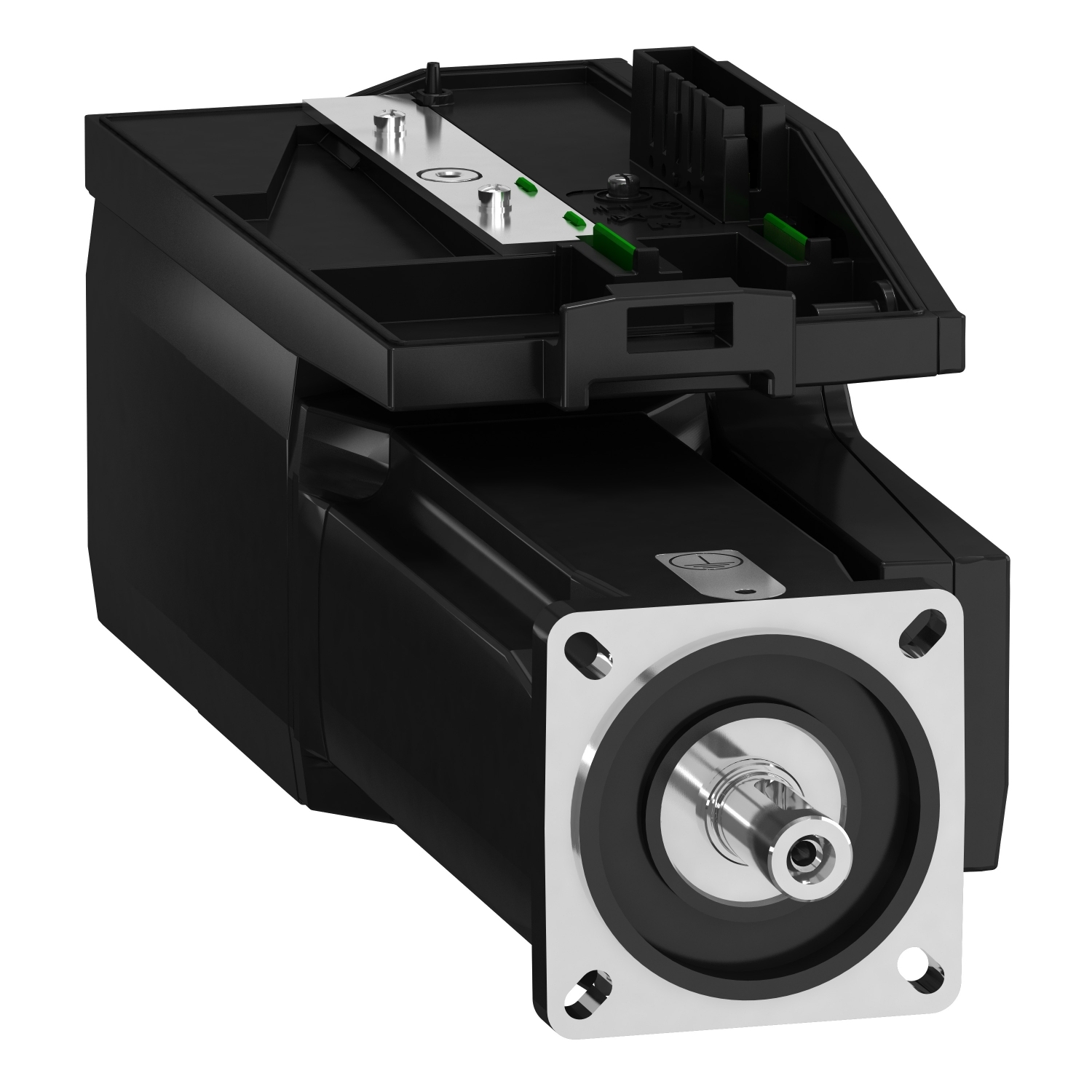

Schneider Electric BMI0702P06F is a servo motor BMI 3-phase - untapped IP54 single turn - 32768 p/t - brake. This product is part of the Lexium 32i range, an offer of servo motors for integrated servo drive from 0.6kW to 2.2kW. The 10-pole servo motor features a medium moment of inertia with a maximum mechanical speed of 8000RPM and untapped shaft with holding brake.

Manufacturer

Schneider Electric

Part number

BMI0702P06F

Product family

Lexium 32i

Category

Servo Motors

Technical details

The 10-pole servo motor features a medium moment of inertia with a maximum mechanical speed of 8000RPM and untapped shaft with holding brake; It is an equipped with a single-turn SinCos Hiperface® encoder (32,768 points/turn) for automatic transmission of data from the servo motor to the servo drive; It is a servo motor with a rated supply voltage of 208V to 480V, a continuous output current of 2A at 8kHz and maximum continuous power of 0.9kW; The shaft dimensions are 11mm (diameter) x 23mm (length); It is furnished with printed circuit board connector for electrical connection; It is an IP54 and IP65 rated product; Its dimensions are 306mm (length) x 70mm (width) and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 75mm to 82mm mounting hole
