6086978

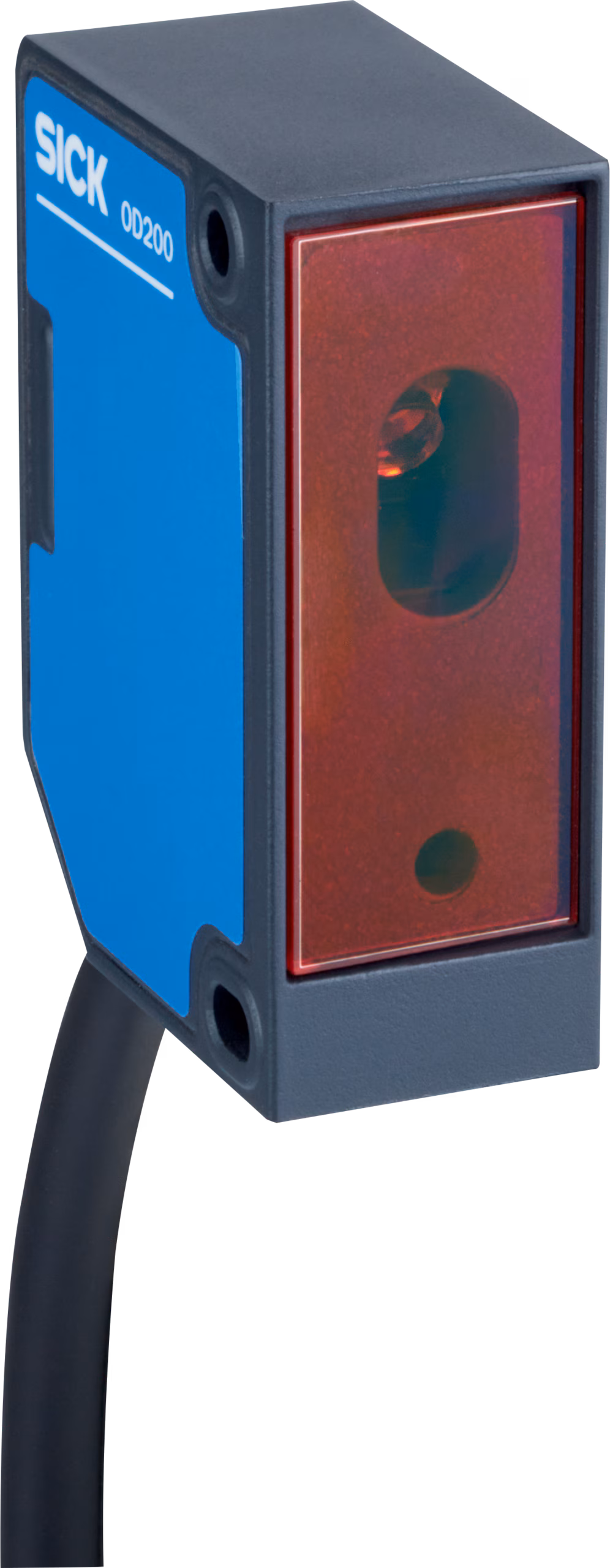

SICK 6086978 / OD200-0301W15 is a laser distance sensor in the OD200 family. Communication interface: IO-Link; Digital output: 1 x PNP/NPN, selectable; Type of analog output: Current output / voltage output; Measuring range: 25 mm... 35 mm; Repeatability: 2 µm; Laser class: 1; Typ. light spot size (distance): 200 µm x 500 µm (30 mm); Housing material: Metal; Connection type: Cable with plug M12, 5-pin, 345 mm.

Manufacturer

Sick

Part number

6086978

Product family

OD200

Category

Laser distance sensors

Technical details

Resolution: 16 bit; Supply voltage UB: DC 18 V... 24 V, ± 10%, including residual ripple; Repeatability: 2 µm; Response time: ≥ 1 ms; Dimensions (W x H x D): 18.4 mm x 46.4 mm x 33 mm; Connection type: Cable with plug M12, 5-pin, 345 mm; Connection type Detail: Length of male connector 45 mm; Enclosure rating: IP67; Housing material: Metal (Aluminum); Weight: 60 g; Measuring range: 25 mm... 35 mm; Linearity: ± 10 µm; Measuring frequency: ≤ 3 kHz; Output time: ≥ 0.5 ms

Weight

0.06 kg

Dimensions

18.4 x 46.4 x 33
