1026520

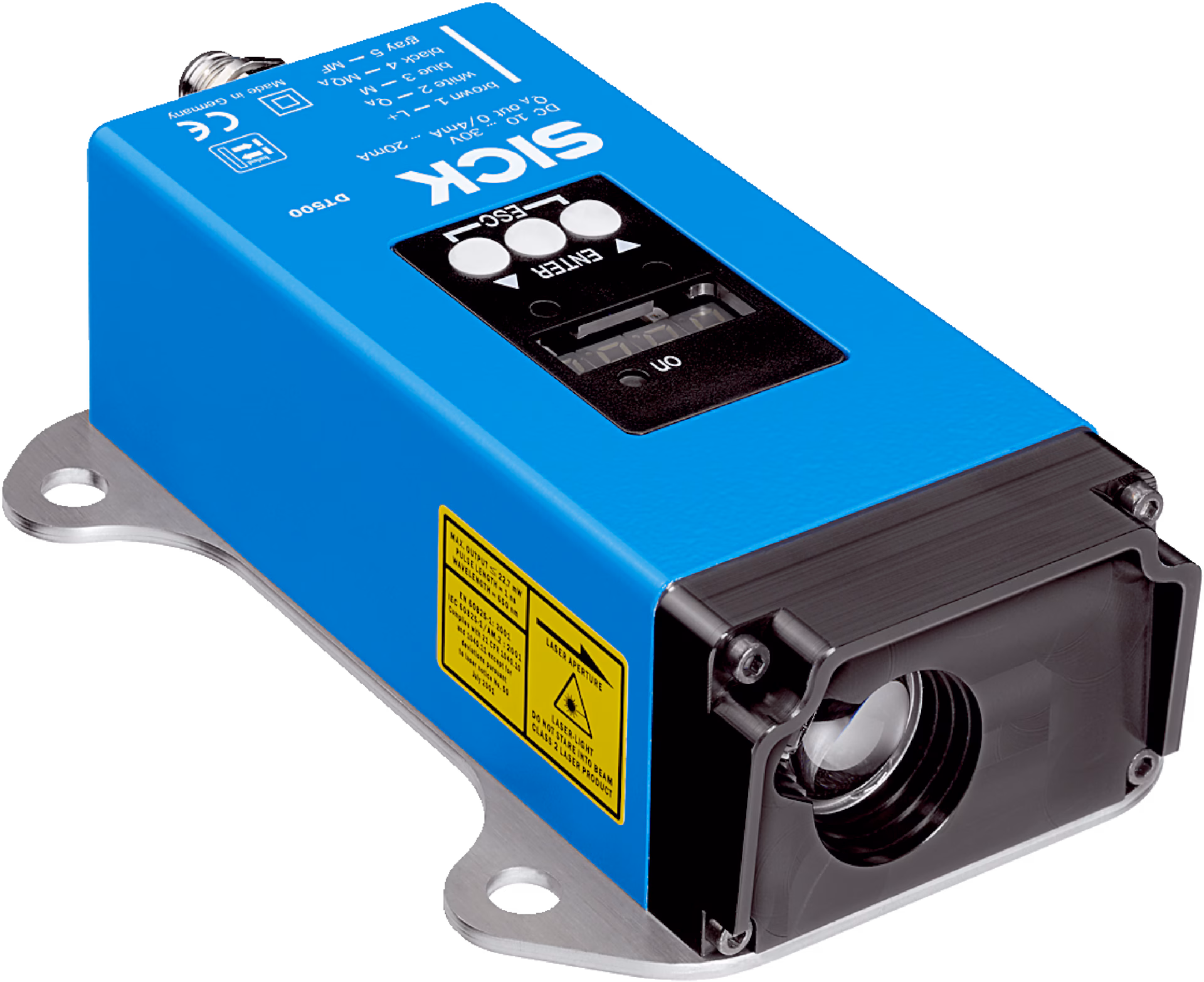

SICK 1026520 / DS500-P211 is a laser distance sensor in the Dx500 family. Communication interface: -; Measuring range: 0.2 m... 30 m, 90% remission factor, 0.8 m... 15 m, 6% remission factor; Laser class: 2; Light source: Laser, red; Minimum response time: 250 ms; Digital output: 2 x PNP; Multifunctional input (MF): PNP.

Manufacturer

Sick

Part number

1026520

Product family

Dx500

Category

Laser distance sensors

Technical details

Type of light: Visible red light; Resolution: ≤ 1 mm; Supply voltage UB: DC 10 V... 30 V, reverse polarity protected; UV ≥ DC 24 V for devices with heating; Repeatability: 1 mm; Measurement accuracy: ± 3 mm; Response time: 250 ms; Dimensions (W x H x D): 69 mm x 50 mm x 153 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP65; Housing material: Metal (Aluminum die cast); Weight: 1,000 g; Measuring range: 0.2 m... 30 m, 90% remission factor; 0.8 m... 15 m, 6% remission factor; Target: Natural objects; Output time: 250 ms

Weight

0.001 kg

Dimensions

69 x 50 x 153

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
