1040406

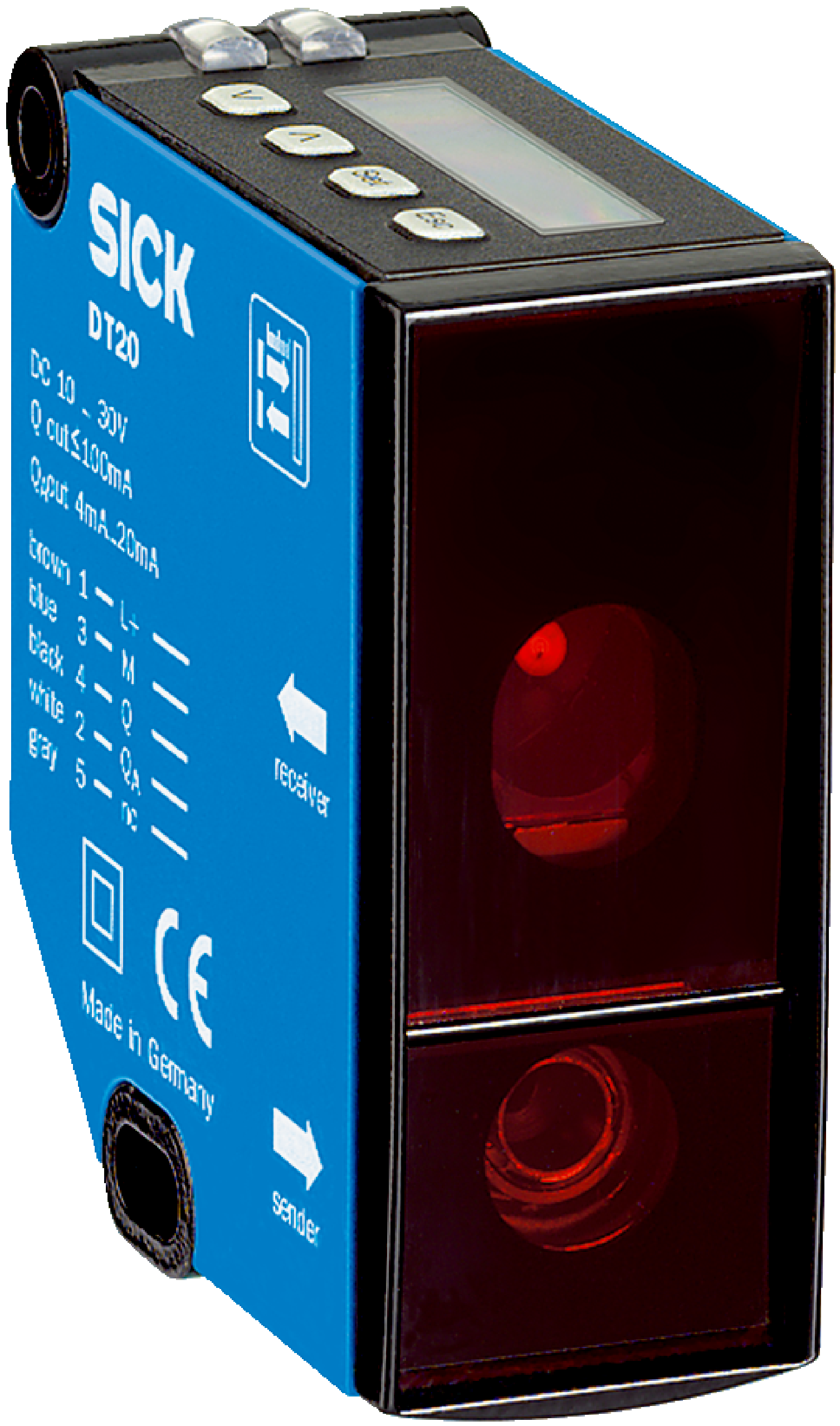

SICK 1040406 / DT20-P244B is a laser distance sensor in the DT20 Hi family. Digital output: 1 x PNP; Type of analog output: Current output; Measuring range: 100 mm... 300 mm; Linearity: ± 1,000 µm; Laser class: 2; Typ. light spot size (distance): 3 mm x 6 mm (300 mm); Housing material: Metal; Connection type: Male connector, M12, 5-pin, swivel connector unit.

Manufacturer

Sick

Part number

1040406

Product family

DT20 Hi

Category

Laser distance sensors

Technical details

Resolution: 12 bit; Supply voltage UB: DC 10 V... 30 V; Repeatability: ≥ 0.25 mm; Response time: ≥ 2.5 ms; Dimensions (W x H x D): 24.3 mm x 72.4 mm x 54.1 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP65 (EN 60529); Housing material: Metal (zinc diecast); Weight: 135 g; Measuring range: 100 mm... 300 mm; Linearity: ± 1,000 µm... ± 1 mm; Measuring frequency: ≤ 400 Hz; Output time: ≥ 2.5 ms; Emitted beam: Light source Laser, red

Weight

0.135 kg

Dimensions

24.3 x 72.4 x 54.1

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
