1041278

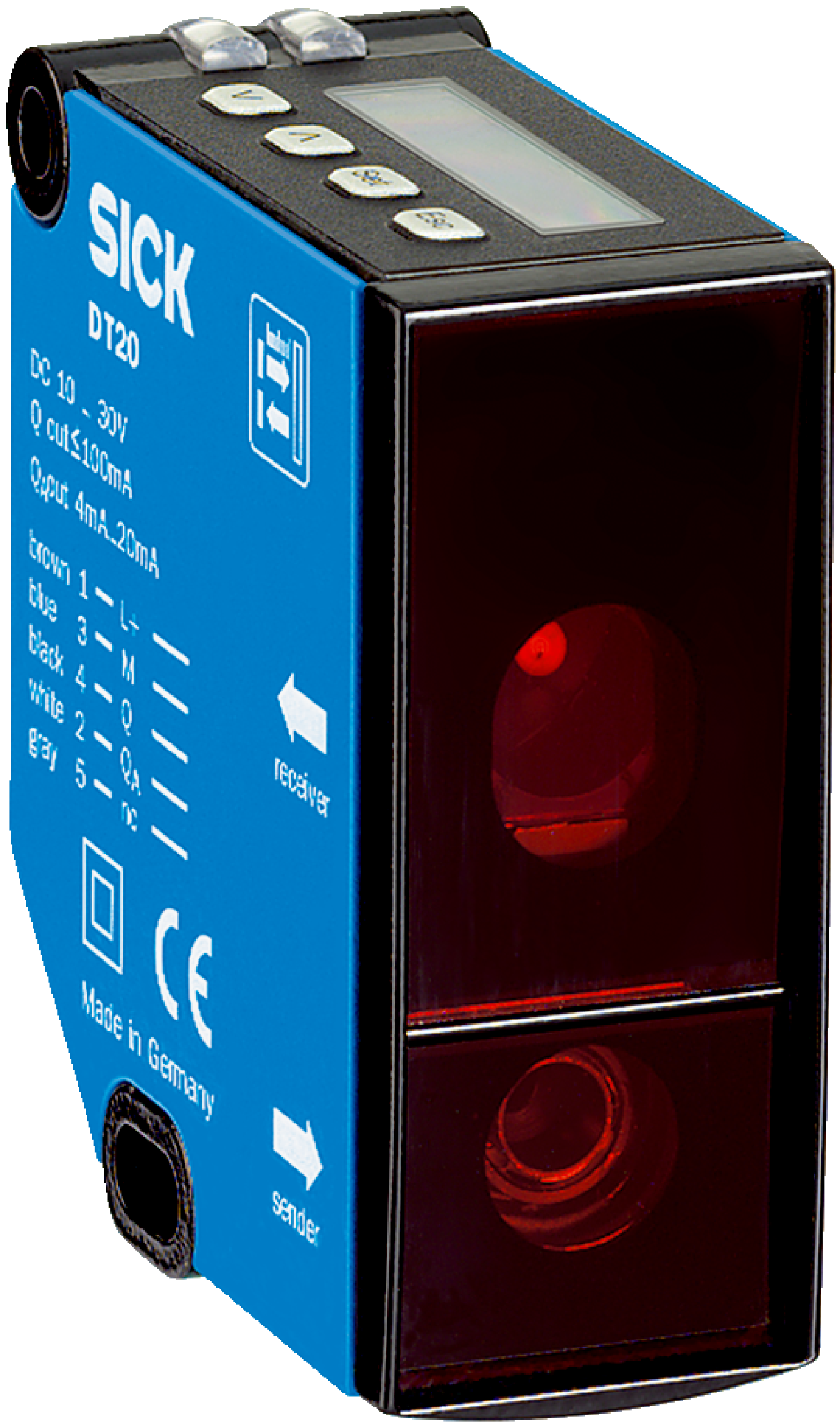

SICK 1041278 / DT20-P254B is a laser distance sensor in the DT20 Hi family. Digital output: 1 x PNP; Type of analog output: Current output; Measuring range: 50 mm... 150 mm; Linearity: ± 500 µm; Laser class: 2; Typ. light spot size (distance): 2 mm x 4 mm (150 mm); Housing material: Metal; Connection type: Male connector, M12, 5-pin, swivel connector unit.

Manufacturer

Sick

Part number

1041278

Product family

DT20 Hi

Category

Laser distance sensors

Technical details

Resolution: 12 bit; Supply voltage UB: DC 10 V... 30 V; Repeatability: ≥ 0.125 mm; Response time: ≥ 2.5 ms; Dimensions (W x H x D): 24.3 mm x 72.4 mm x 54.1 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP65 (EN 60529); Housing material: Metal (zinc diecast); Weight: 135 g; Measuring range: 50 mm... 150 mm; Linearity: ± 500 µm... ± 0.5 mm; Measuring frequency: ≤ 400 Hz; Output time: ≥ 2.5 ms; Emitted beam: Light source Laser, red

Weight

0.135 kg

Dimensions

24.3 x 72.4 x 54.1
