6080738

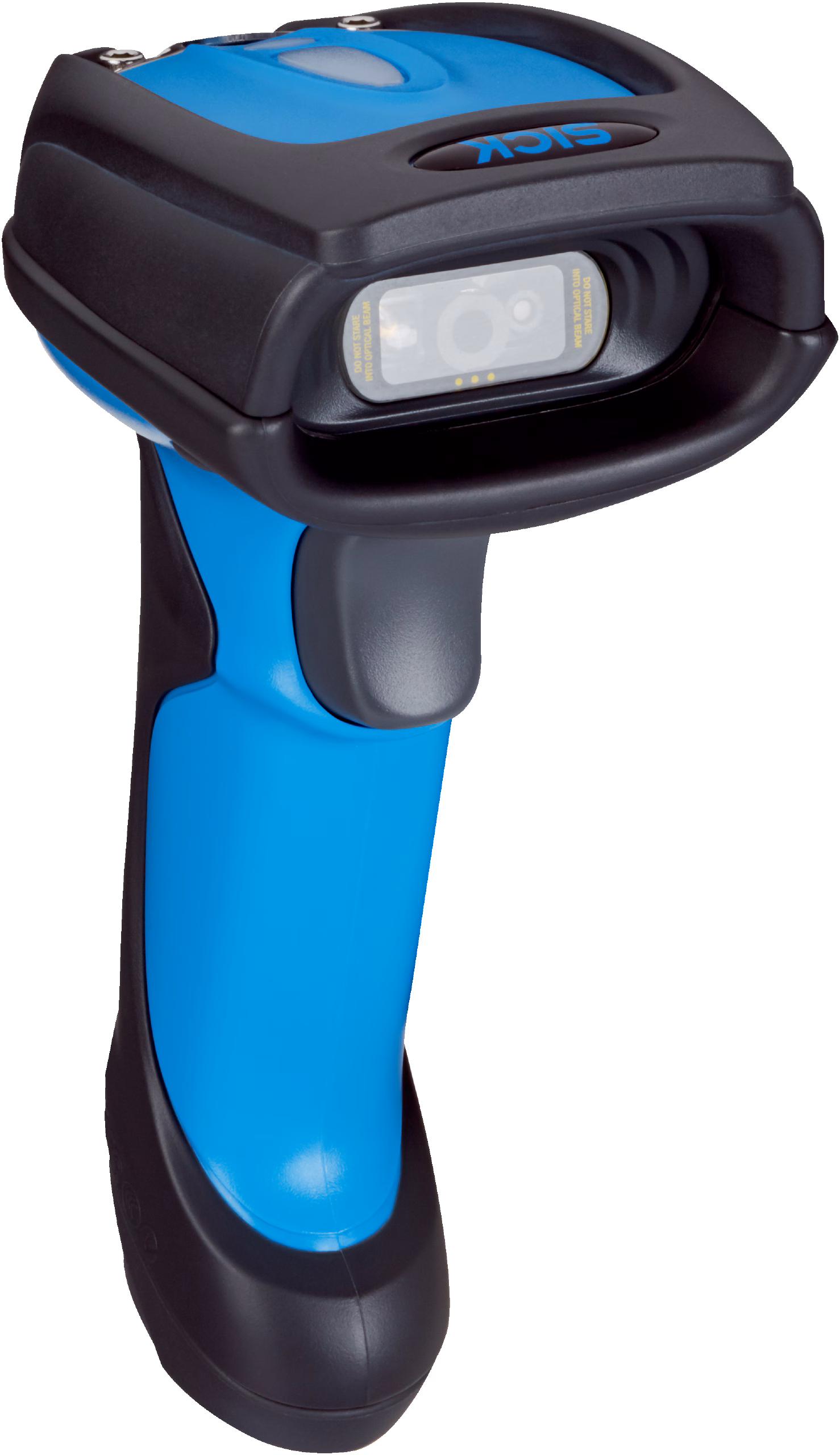

SICK 6080738 / IDM260-411S is a mobile handheld scanner in the IDM family. Readable code structures: 1D codes, 2D codes, Stacked; Reading distance: 30 mm... 400 mm; Application: Industrial application; Scanner design: Cable connection variant; Note: Additional accessories may be necessary for some communication interfaces (details available online); Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB; Ambient operating temperature: –20 °C... +50 °C; Code resolution: ≥ 0.07 mm, ≥ 0.13 mm.

Manufacturer

Sick

Part number

6080738

Product family

IDM

Category

Mobile handheld scanners

Technical details

Sensor resolution: 1,280 px x 800 px; Code resolution: ≥ 0.07 mm; ≥ 0.13 mm; Supply voltage: 5 V DC, ± 10 %; Dimensions (L x W x H): 104 mm x 76.3 mm x 176 mm; Enclosure rating: IP65; Ambient operating temperature: –20 °C... +50 °C; Weight: 208 g, without cable; Application: Industrial application; Scanner design: Cable connection variant; Light source: LED, Visible, Red, 660 nm; Alignment aid: Laser, Red, 630 nm; Laser class: 1 (EN/IEC 60825-1:2014); Reading distance: 30 mm... 400 mm; Current consumption: ≤ 395 mA; ≤ 420 mA; ≤ 220 mA

Weight

0.208 kg

Dimensions

104 x 76.3 x 176

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
