6080732

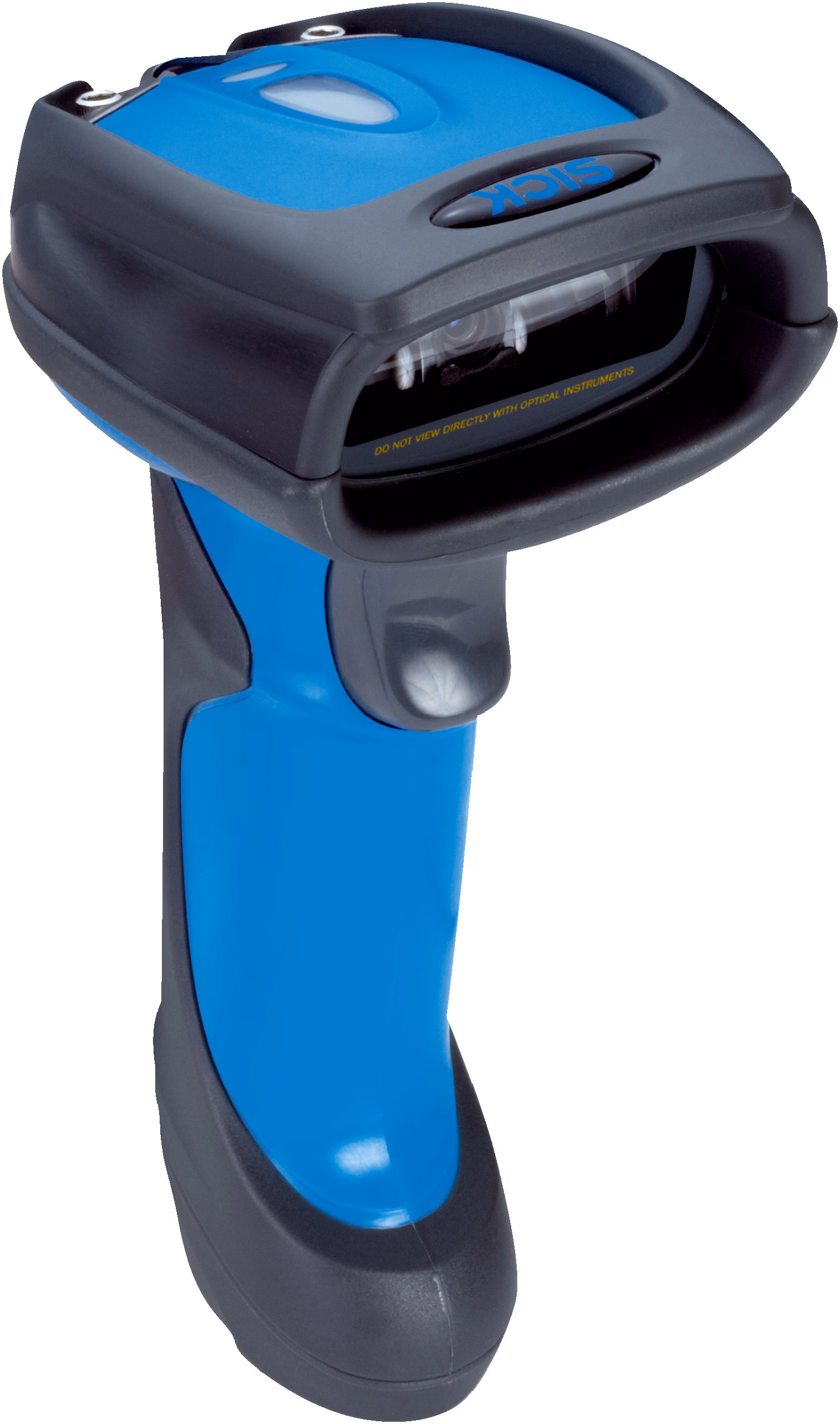

SICK 6080732 / IDM160-411S is a mobile handheld scanner in the IDM family. Readable code structures: 1D codes, Stacked; Reading distance: 20 mm... 850 mm; Application: Industrial application; Scanner design: Cable connection variant; Note: Additional accessories may be necessary for some communication interfaces (details available online); Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB; Ambient operating temperature: –10 °C... +50 °C; Code resolution: ≥ 0.076 mm.

Manufacturer

Sick

Part number

6080732

Product family

IDM

Category

Mobile handheld scanners

Technical details

Code resolution: ≥ 0.076 mm; Supply voltage: 5 V DC, ± 10 %; Dimensions (L x W x H): 104 mm x 76.3 mm x 176 mm; Enclosure rating: IP65; Ambient operating temperature: –10 °C... +50 °C; Weight: 208 g, without cable; Application: Industrial application; Version: Standard Range; Scanner design: Cable connection variant; Light source: LED, Visible, Red, 630 nm; Reading distance: 20 mm... 850 mm; Scanning frequency: ≤ 500 Hz; Current consumption: ≤ 230 mA; ≤ 180 mA; ≤ 80 mA; Housing color: Blue, gray

Weight

0.208 kg

Dimensions

104 x 76.3 x 176

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
