6065943

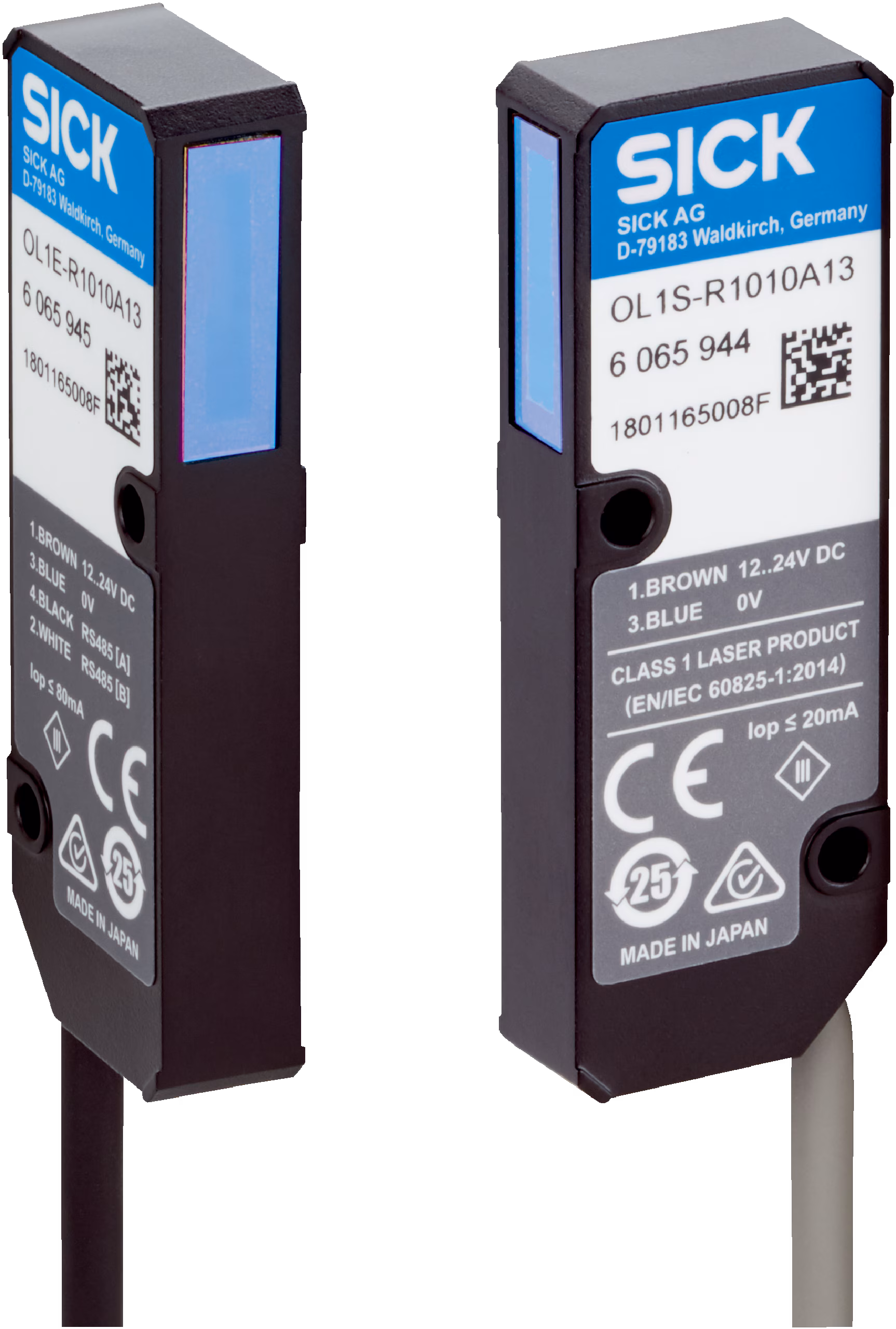

SICK 6065943 / OL1S/OL1E-R1010A13 is a laser distance sensor in the OL1 family. Communication interface: Serial; Digital output: 3 x PNP/NPN, selectable; Type of analog output: Current output; Measuring range: 10 mm; Linearity: ± 40 µm; Laser class: 1; Typ. light spot size (distance): 3 mm x 14 mm; Housing material: Metal; Connection type: Cable with M8 male connector, 4-pin, 300 mm, Y cable for connection to AOD1 evaluation unit.

Manufacturer

Sick

Part number

6065943

Product family

OL1

Category

Laser distance sensors

Technical details

Minimum detectable object: 0.2 mm; Supply voltage UB: 12 V DC... 24 V DC, ± 10%, including residual ripple; Repeatability: 10 µm; Response time: ≥ 0.5 ms; Dimensions (W x H x D): 9.6 mm x 61 mm x 21 mm; Connection type: Cable with M8 male connector, 4-pin, 300 mm; Enclosure rating: IP50; Housing material: Metal (Aluminum die cast); Weight: 30 g (sender); 30 g (receiver); Measuring range: 10 mm; Installation distance: 0 mm... 300 mm, Sender/receiver; Linearity: ± 40 µm; Measuring frequency: ≤ 2 kHz; Emitted beam: Light source Laser, red

Weight

0.03 kg

Dimensions

9.6 x 61 x 21
