20LD650N0ENNXNW0WA

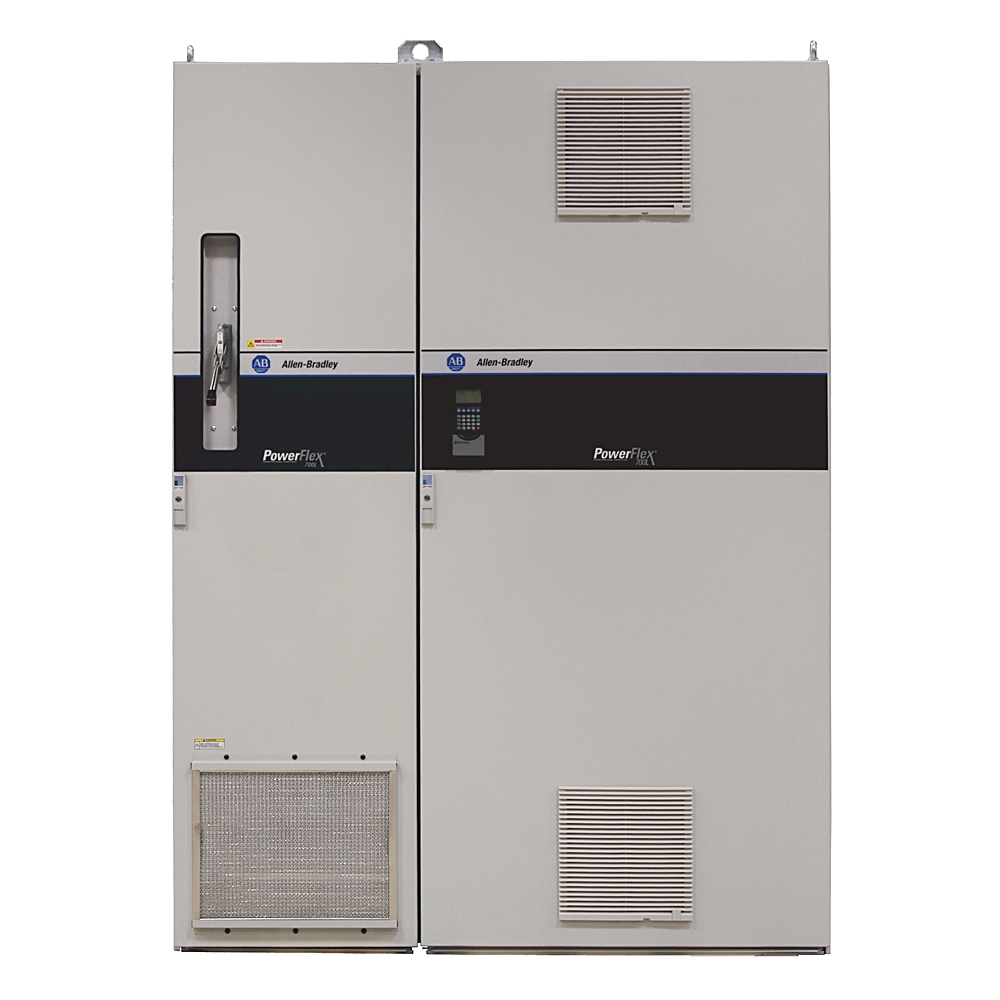

PowerFlex700L AC Drive, 480 VAC, 3 PH, 650 Amps, 600HP Normal Duty, IP00 / Open Type, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, None, None, None.

Manufacturer

Allen-Bradley

Part number

20LD650N0ENNXNW0WA

Product family

PowerFlex 700L

Category

Variable Frequency Drives

Technical details

Bussmann fuse current rating: 2000A @ 650V DC; Circuit breaker current rating: 800A @ 400...480V AC input voltage; Input current rating: 1250A @ 650V DC; Output current rating: 650A @ 600Hp (445 kW) normal duty, 440 Hp (325 kW) heavy duty, frame 3 A; Short circuit current rating: To match specified circuit breaker capability, less than or equal to 200000 A symmetrical.; Input voltage: 480V AC, 3-phase, 60 Hz

Weight

950 kg

Dimensions

1200 × 2078 × 833

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
