20LC1K2A0ENNAN10WA

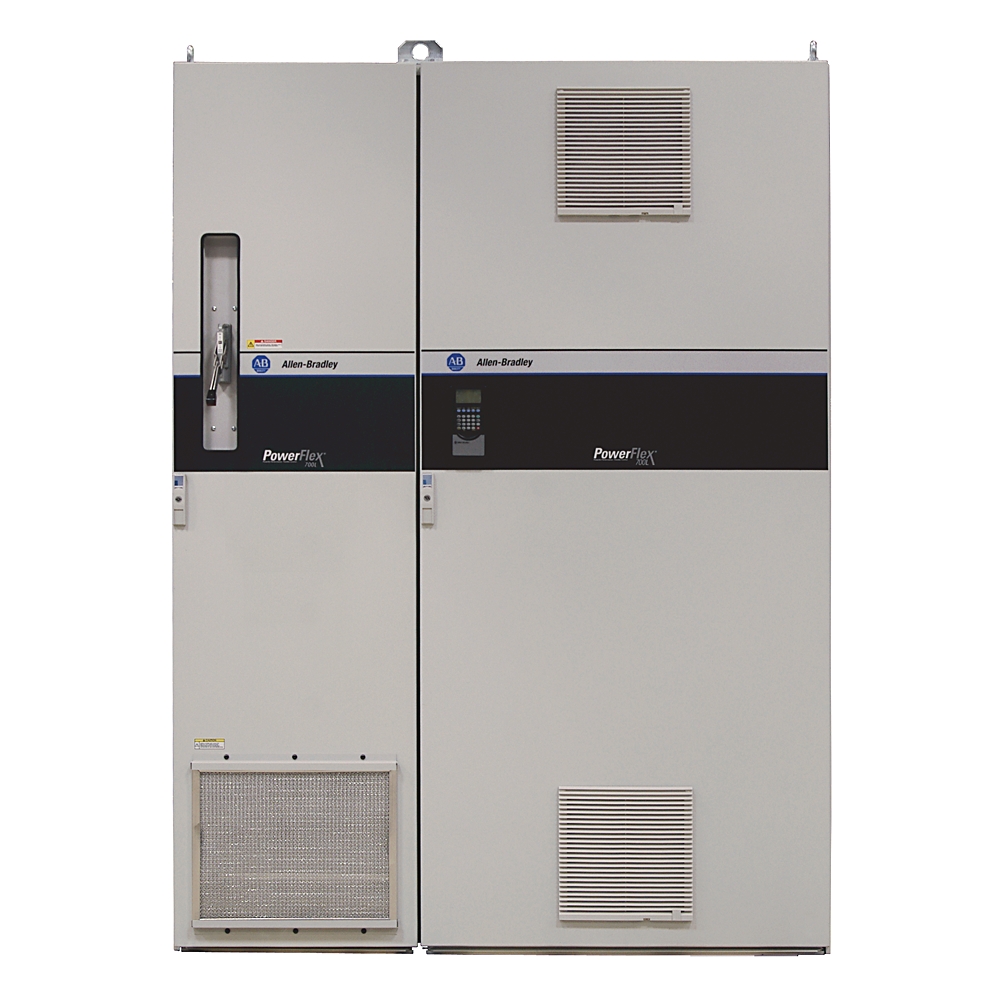

PowerFlex700L AC Drive, 400 VAC, 3 PH, 1250 Amps, 960HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None.

Manufacturer

Allen-Bradley

Part number

20LC1K2A0ENNAN10WA

Product family

PowerFlex 700L

Category

Variable Frequency Drives

Technical details

Bussmann fuse current rating: 2000A @ 540V DC; Circuit breaker current rating: 1500A @ 400...480V AC input voltage; Input current rating: 1250A @ 540V DC; Output current rating: 1250A @ 960Hp (715 kW) normal duty, 700 Hp (525 kW) heavy duty, frame 3B; Short circuit current rating: To match specified circuit breaker capability, less than or equal to 200000 A symmetrical.; Input voltage: 400V AC, 3-phase, 60 Hz

Weight

1361 kg

Dimensions

1600 × 2278 × 1033
