20LC650A0ENNAN11WA

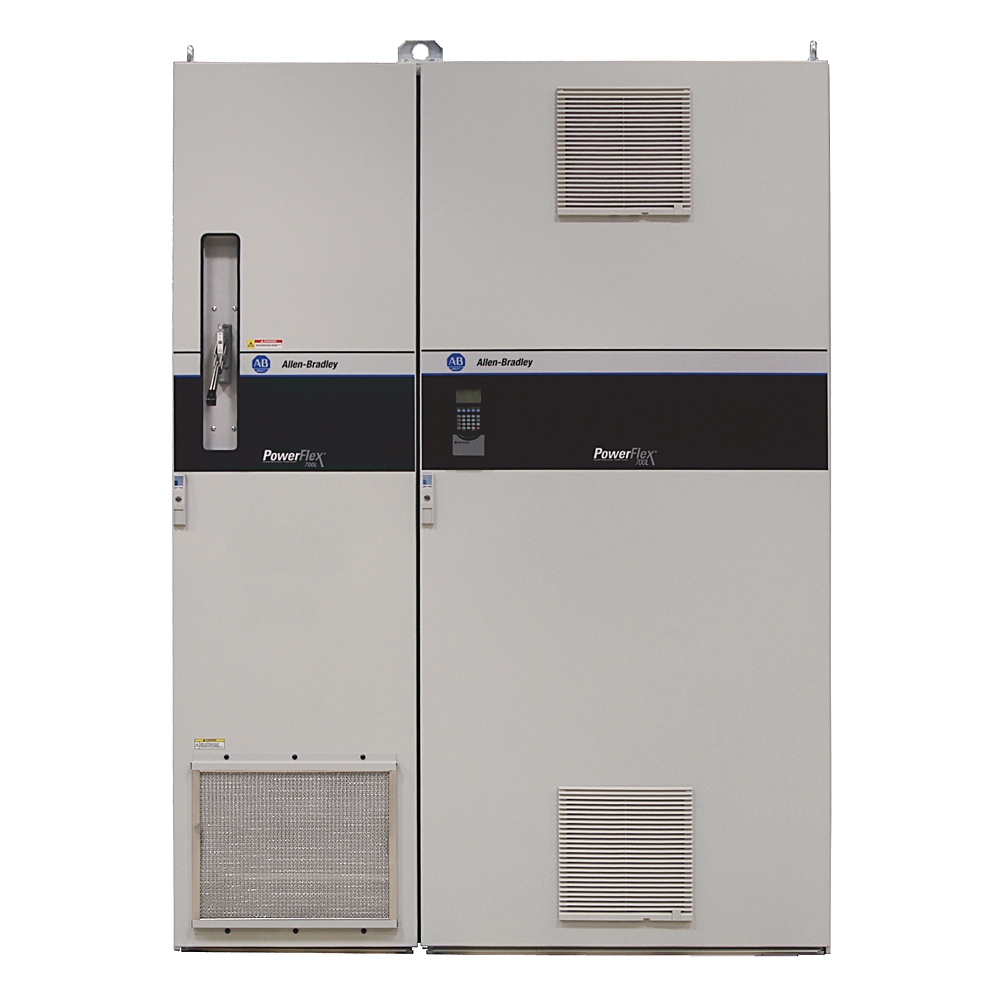

PowerFlex700L AC Drive, 400 VAC, 3 PH, 650 Amps, 500HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, Encoder, 12V, None.

Manufacturer

Allen-Bradley

Part number

20LC650A0ENNAN11WA

Product family

PowerFlex 700L

Category

Variable Frequency Drives

Technical details

Bussmann fuse current rating: 2000A @ 540V DC; Circuit breaker current rating: 800A @ 400...480V AC input voltage; Input current rating: 1250A @ 540V DC; Output current rating: 650A @ 500Hp (370 kW) normal duty, 365 Hp (270 kW) heavy duty, frame 3 A; Short circuit current rating: To match specified circuit breaker capability, less than or equal to 200000 A symmetrical.; Input voltage: 400V AC, 3-phase, 60 Hz

Weight

950 kg

Dimensions

1200 × 2078 × 833

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
