1220929

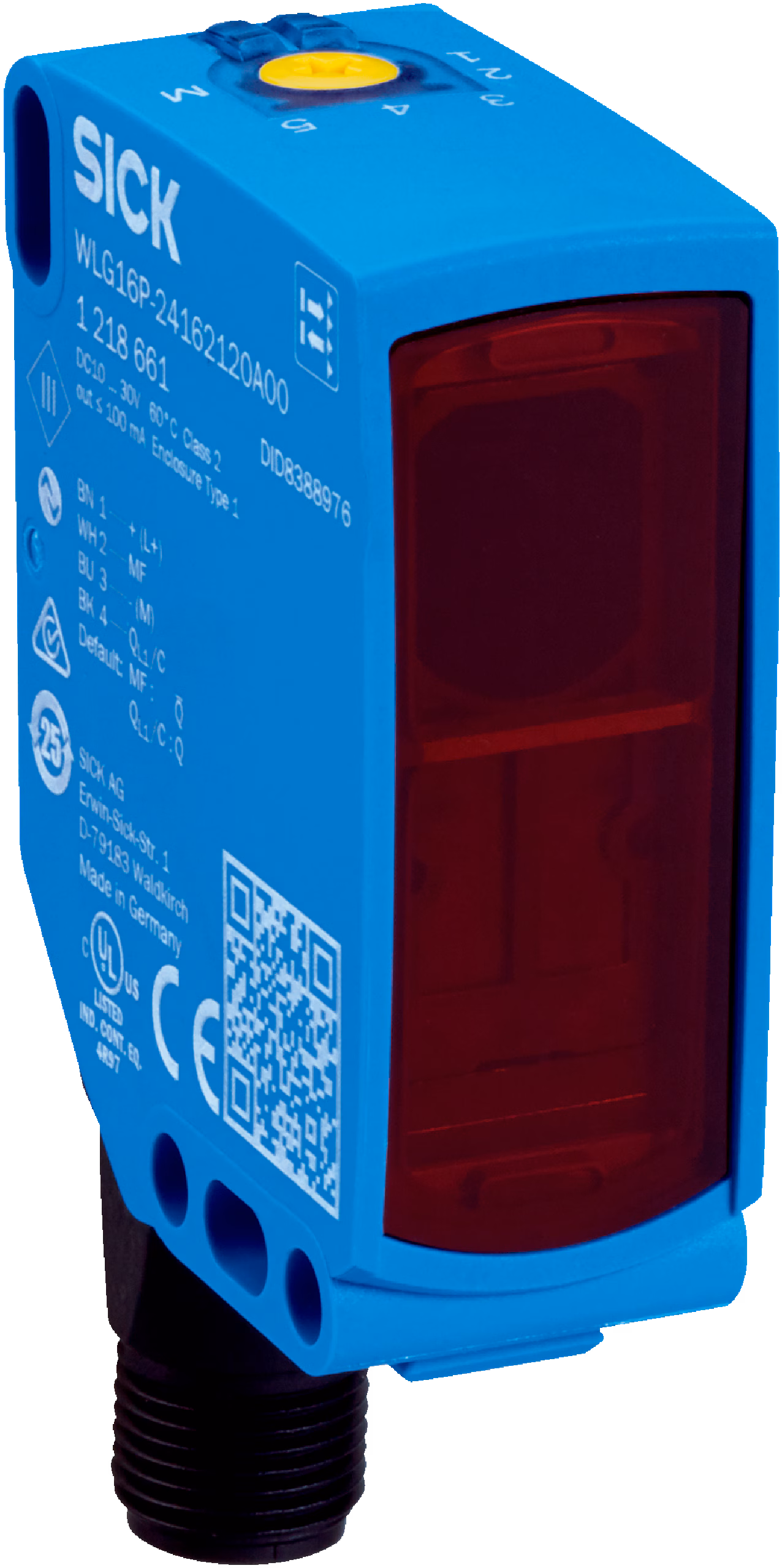

SICK 1220929 / WLG16P-2416H120A71 is a photoelectric sensor in the W16 family. Sensing range min. / max.: 0 m / 5 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), ClearSens; Switching output: Push-pull: PNP/NPN; Connection type: Male connector M12, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adjustment; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task; Smart Task name: Counter + debouncing; Housing: Rectangular.

Manufacturer

Sick

Part number

1220929

Product family

W16

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 0 m; Sensing range max.: 5 m; Recommended sensing range for the best performance: 0 m... 5 m; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent and short-circuit protected Response time: ≤ 500 µs; Repeatability (response time): 150 µs; Dimensions (W x H x D): 20 mm x 55.7 mm x 42 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); IP69 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 50 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), ClearSens; Maximum distance range from reflector to sensor (operating reserve 1): 0 m... 5 m

Weight

0.05 kg

Dimensions

20 x 55.7 x 42
