1088326

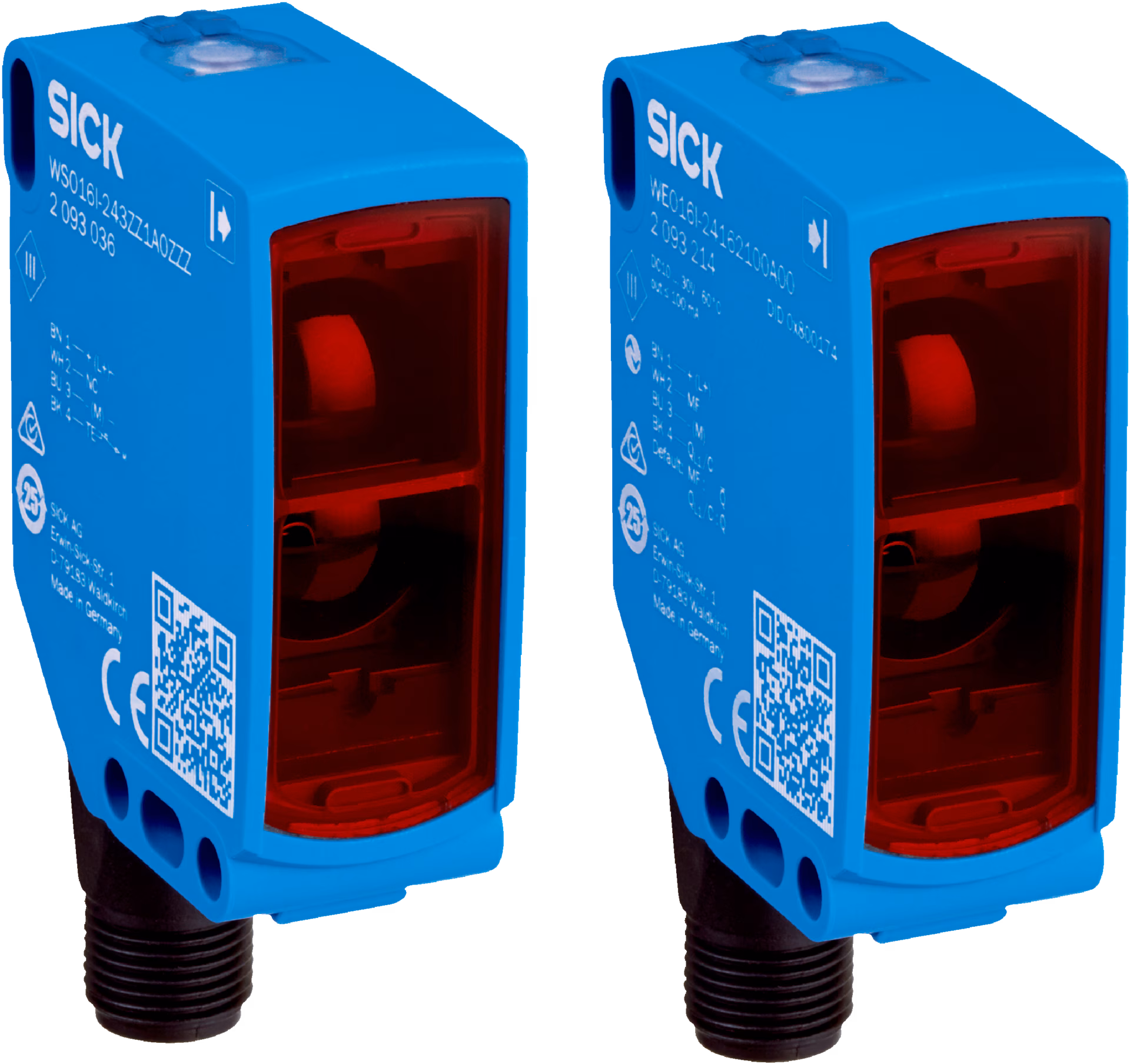

SICK 1088326 / WSE16I-24162100A00 is a photoelectric sensor in the W16 family. Sensing range min. / max.: 0 m / 45 m; Functional principle: Through-beam photoelectric sensor; Switching output: Push-pull: PNP/NPN; Switching mode: Light/dark switching; Connection type: Male connector M12, 4-pin; Light source: LED; Type of light: Infrared light; Housing material: VISTAL®; Adjustment: IO-Link; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task; Smart Task name: Base logics; Housing: Rectangular.

Manufacturer

Sick

Part number

1088326

Product family

W16

Category

Photoelectric sensors

Technical details

Type of light: Infrared light; Sensing range: Sensing range min. 0 m; Sensing range max.: 45 m; Recommended sensing range for the best performance: 0 m... 30 m; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent and short-circuit protected Response time: ≤ 500 µs; Repeatability (response time): 150 µs; Response time: SIO Logic: 600 µs; IOL: 750 µs; Repeatability: SIO Logic: 300 µs; IOL: 400 µs; Dimensions (W x H x D): 20 mm x 55.7 mm x 42 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); IP69 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 100 g; Functional principle: Through-beam photoelectric sensor

Weight

0.1 kg

Dimensions

20 x 55.7 x 42
