1111625

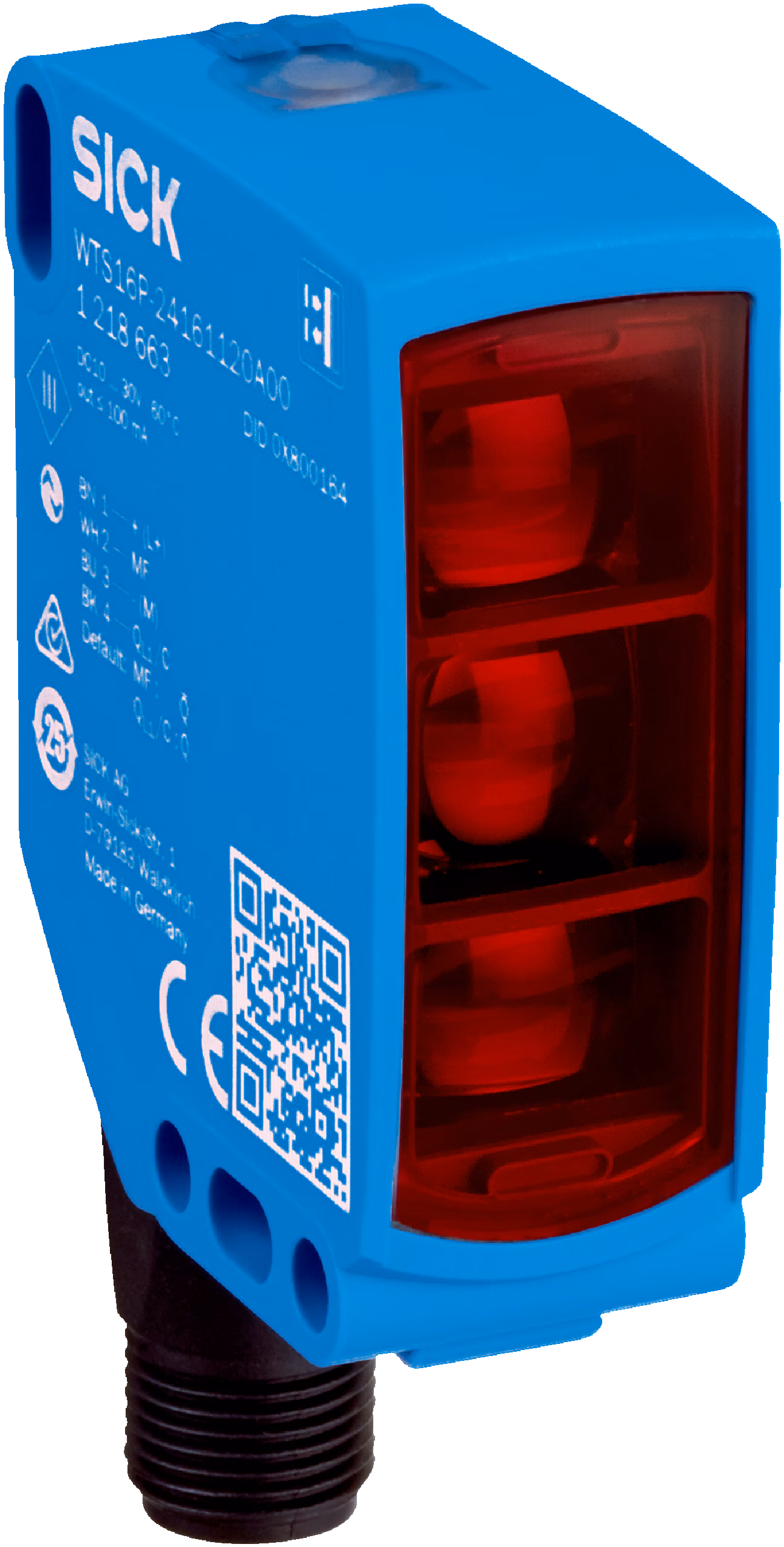

SICK 1111625 / WTS16P-24161300CZZ is a photoelectric sensor in the W16 family. Sensing range min. / max.: 50 mm / 750 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression, TwinEye technology, MultiPulse; Switching output: Push-pull: PNP/NPN; Connection type: Male connector M12, 4-pin; Light source: PinPoint LED; Type of light: Visible red light; Housing material: VISTAL®; Adjustment: IO-Link; Communication interface: IO-Link V1.1; Smart Sensor: Enhanced Sensing, efficient communication, Smart Task; Smart Task name: Base logics; Special features: Factory setting: sensing range 305 mm, Dynamic blind zone 50 mm... 75 mm, Factory setting: sensing range 305 mm, MultiPulse: sensor with self-monitoring; Housing: Rectangular.

Manufacturer

Sick

Part number

1111625

Product family

W16

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range: Sensing range min. 50 mm; Sensing range max.: 750 mm; Minimum distance between set sensing range and background (black 6% / white 90%): 50 mm, at a distance of 100 mm; Recommended sensing range for the best performance: 100 mm... 300 mm; Supply voltage UB: 10 V DC... 30 V DC; Overcurrent and short-circuit protected Response time: ≤ 0.1 s; Response time: SIO Logic:; Dimensions (W x H x D): 20 mm x 55.7 mm x 42 mm; Enclosure rating: IP66 (EN 60529); IP67 (EN 60529); IP69 (EN 60529); Ambient operating temperature: –40 °C... +60 °C; Weight: Approx. 50 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression, TwinEye technology, MultiPulse

Weight

0.05 kg

Dimensions

20 x 55.7 x 42
