1134608

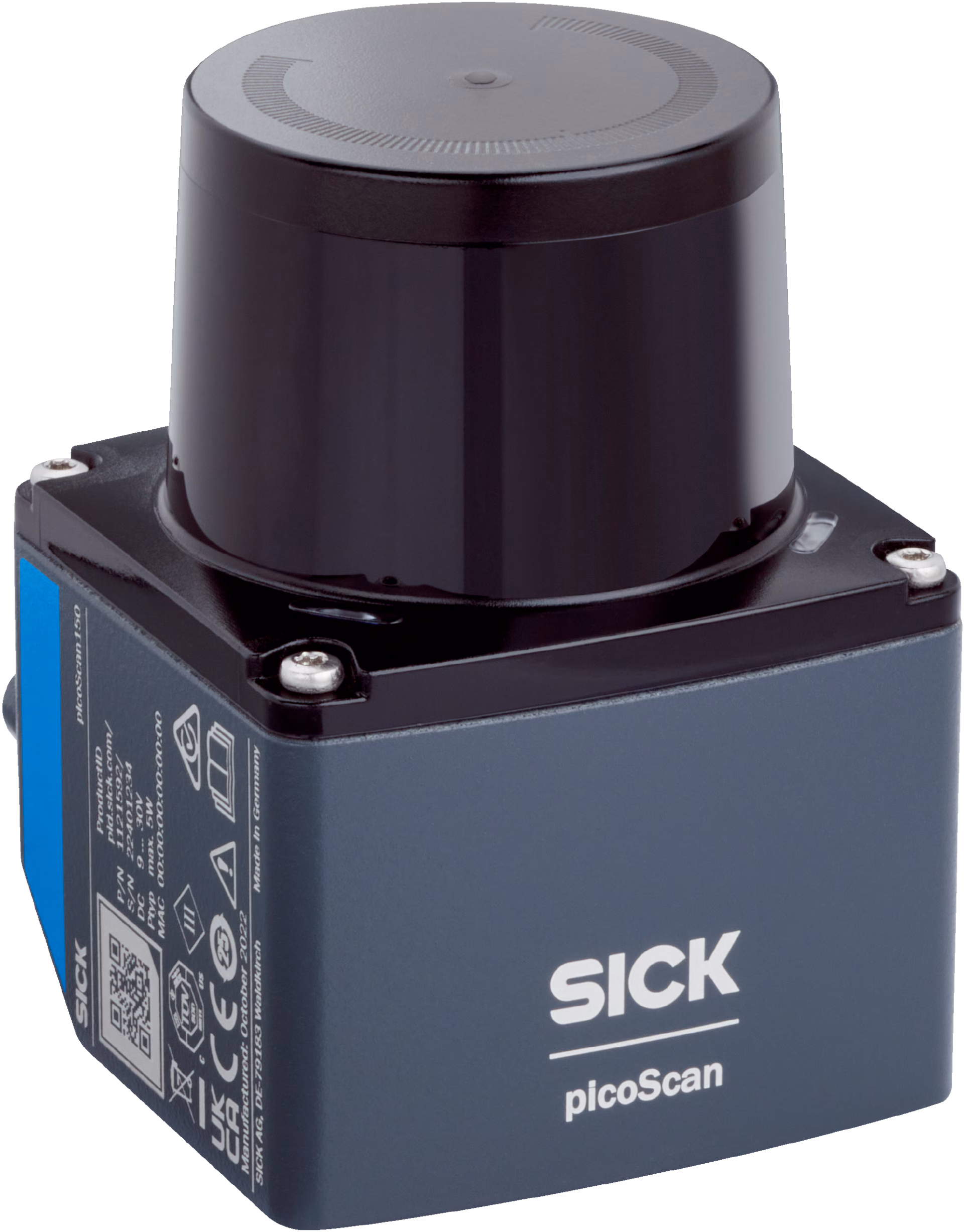

SICK 1134608 / PICS150-01000 Core-1 is a lidar sensor in the picoScan100 family. Working range: 0.05 m... 25 m; Scanning range: 25 m at 90% remission factor, 12 m at 10% remission factor; Angular resolution: 0.25°, 0.33°, 1°; Scanning frequency: 15 Hz, 25 Hz; Integrated application: Output of measurement data, 2D Object Detection; Digital add-ons: Data Reduction & Data Preparation package, Reliability package, Multi-echo technology, LMDscandata (data format), Reflector detection, IMU (Inertial Measurement Unit), PTP; Connection type: 1 “Ethernet” connection, 4-pin M12 female connector, D-coded, 1 “POWER” connection, 5-pin M12 plug, A-coded; System plug: See system plug 2116047; Variant: Standard (not pre-configured).

Manufacturer

Sick

Part number

1134608

Product family

picoScan100

Category

LiDAR sensors

Technical details

Working range: 0.05 m... 25 m; Angular resolution: Horizontal 0.25°; Supply voltage: 9 V DC... 30 V DC; Dimensions (L x W x H): 60 mm x 60 mm x 82 mm; Connection type: 1 x “Ethernet” connection, 4-pin M12 female connector, D-coded; 1 x “POWER” connection, 5-pin M12 plug, A-coded; Enclosure rating: IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013); IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); Housing material: Aluminum with Suretec650 coating; Ambient operating temperature: –33 °C... +50 °C; Weight: 220 g, without system plug; Application: Indoor, Outdoor; Technology: 2D LiDAR; Variant: Standard (not pre-configured); Measurement principle: HDDM; Light source: Infrared (905 nm)

Weight

0.22 kg

Dimensions

60 x 60 x 82
