1042266

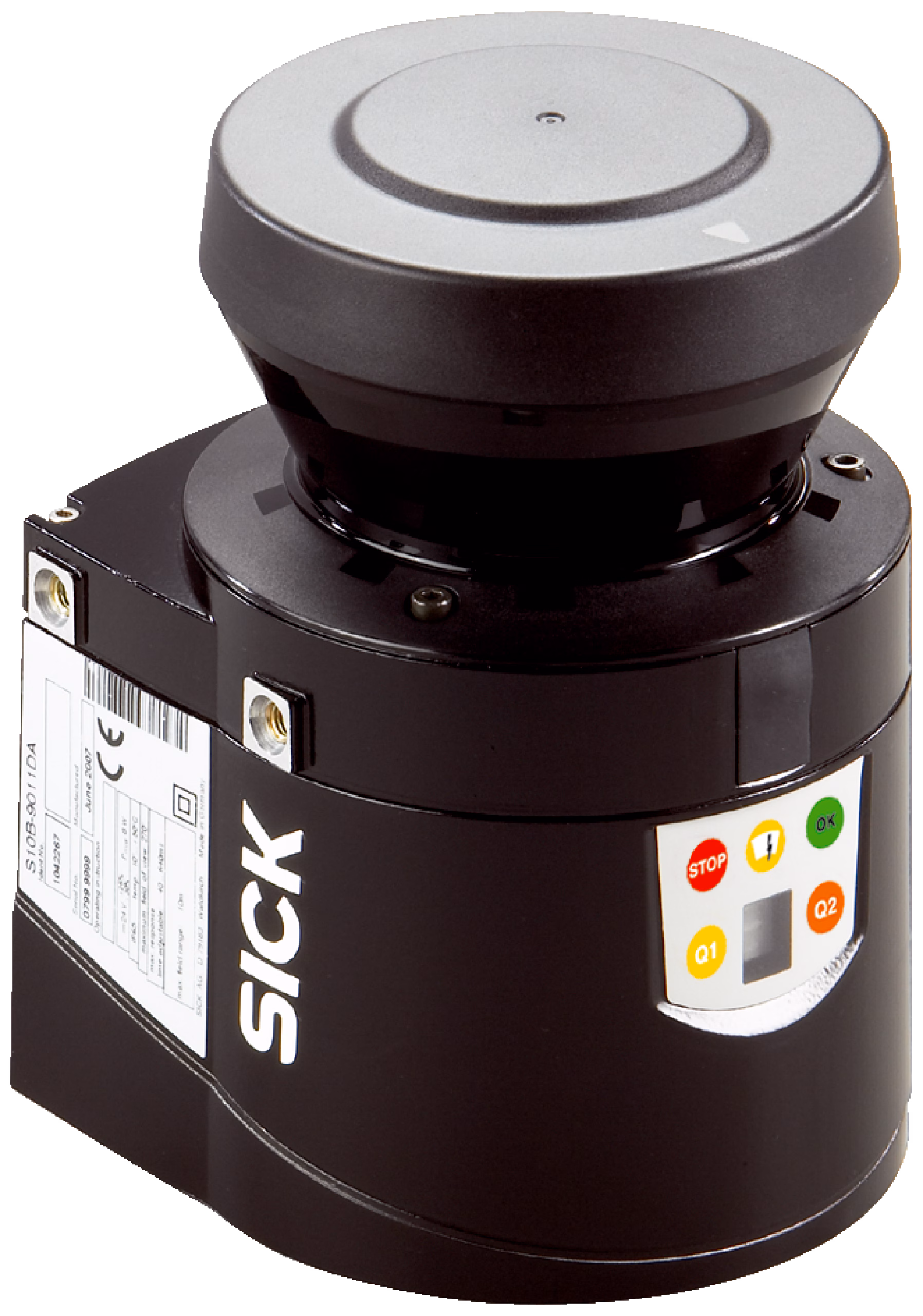

SICK 1042266 / S10B-9011BA is a lidar sensor in the S100 family. Working range: 0 m... 10 m; Enclosure rating: IP65; Color: Black (RAL 9005); Integrated application: Field evaluation; Connection type: 1 x system plug with screw terminal block (accessory); Scanning frequency: 25 Hz.

Manufacturer

Sick

Part number

1042266

Product family

S100

Category

LiDAR sensors

Technical details

1° Working range: 0 m... 10 m; Angular resolution: Horizontal 0.5°; Supply voltage: 16.8 V DC... 30 V DC; Dimensions (L x W x H): 105 mm x 102 mm x 152 mm; Connection type: 1 x system plug with screw terminal block (accessory); Enclosure rating: IP65 (EN 60529, Section 14.2.5); Ambient operating temperature: –10 °C... +50 °C; Weight: 1.2 kg, without connecting cables; Application: Indoor; Light source: Infrared (905 nm); Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021); Aperture angle: Horizontal 270°; Scanning frequency: 25 Hz; Scanning range: At 10% remission factor 4.5 m

Weight

1.2 kg

Dimensions

105 x 102 x 152

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
