1052928

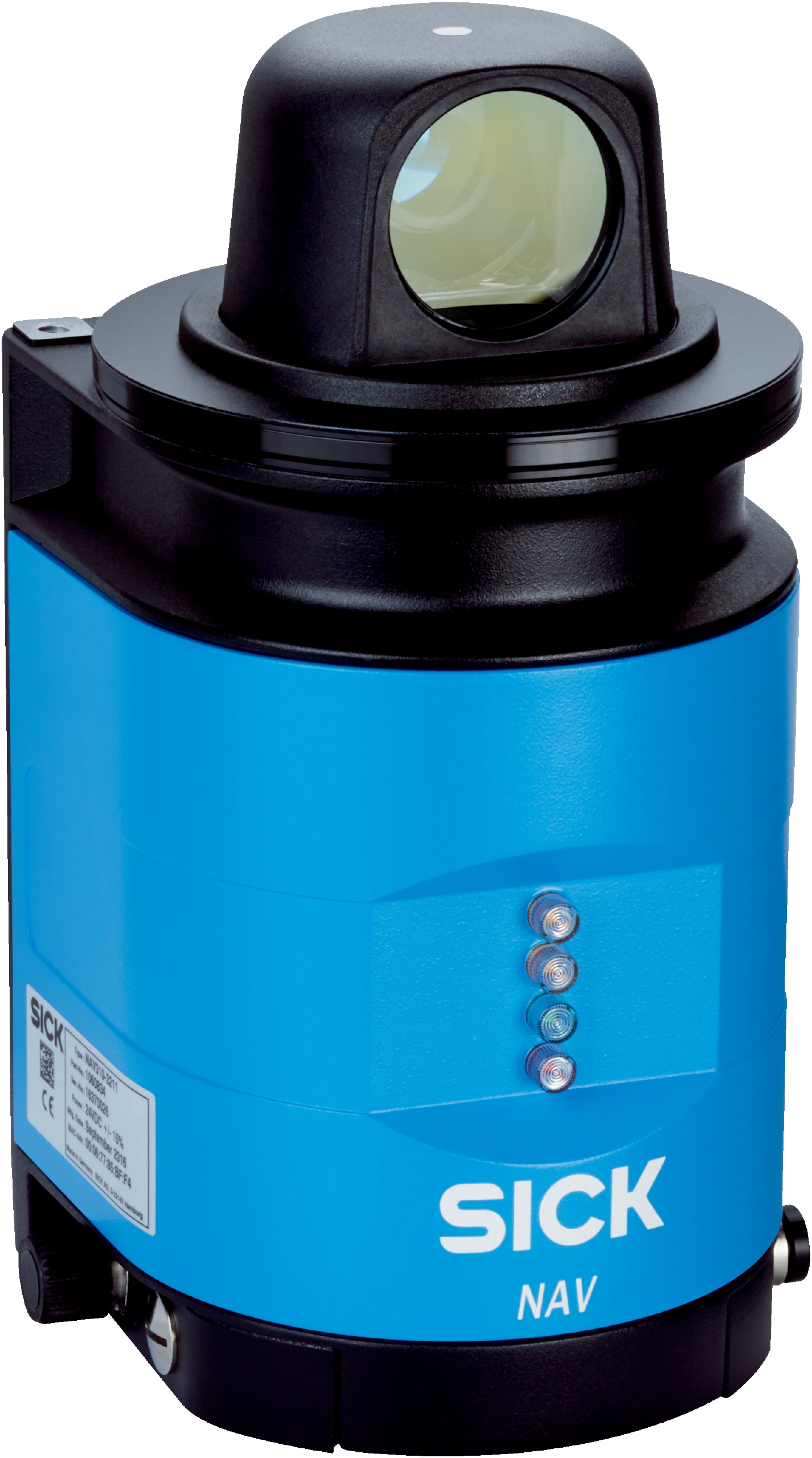

SICK 1052928 / NAV350-3232 is a lidar sensor in the NAV3xx family. Working range: 0.5 m... 250 m, 0.5 m... 70 m on reflectors; Enclosure rating: IP65; Color: Light blue (RAL 5012); Integrated application: Navigation; Connection type: 3 x M12 male connector/female connector; Scanning frequency: 8 Hz, ± 5 %.

Manufacturer

Sick

Part number

1052928

Product family

NAV3xx

Category

LiDAR sensors

Technical details

Working range: 0.5 m... 250 m (0.5 m... 70 m on reflectors); Angular resolution: Horizontal 0.25°; Supply voltage: 24 V DC, ± 15 %; Positioning accuracy: ± 4 mm; Dimensions (L x W x H): 115 mm x 120.5 mm x 222 mm; Connection type: 3 x M12 male connector/female connector; Enclosure rating: IP65; Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +50 °C; Weight: 2.4 kg; Application: Indoor; Light source: 905 nm; Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021); Aperture angle: Horizontal 360°

Weight

2.4 kg

Dimensions

115 x 120.5 x 222
