1081208

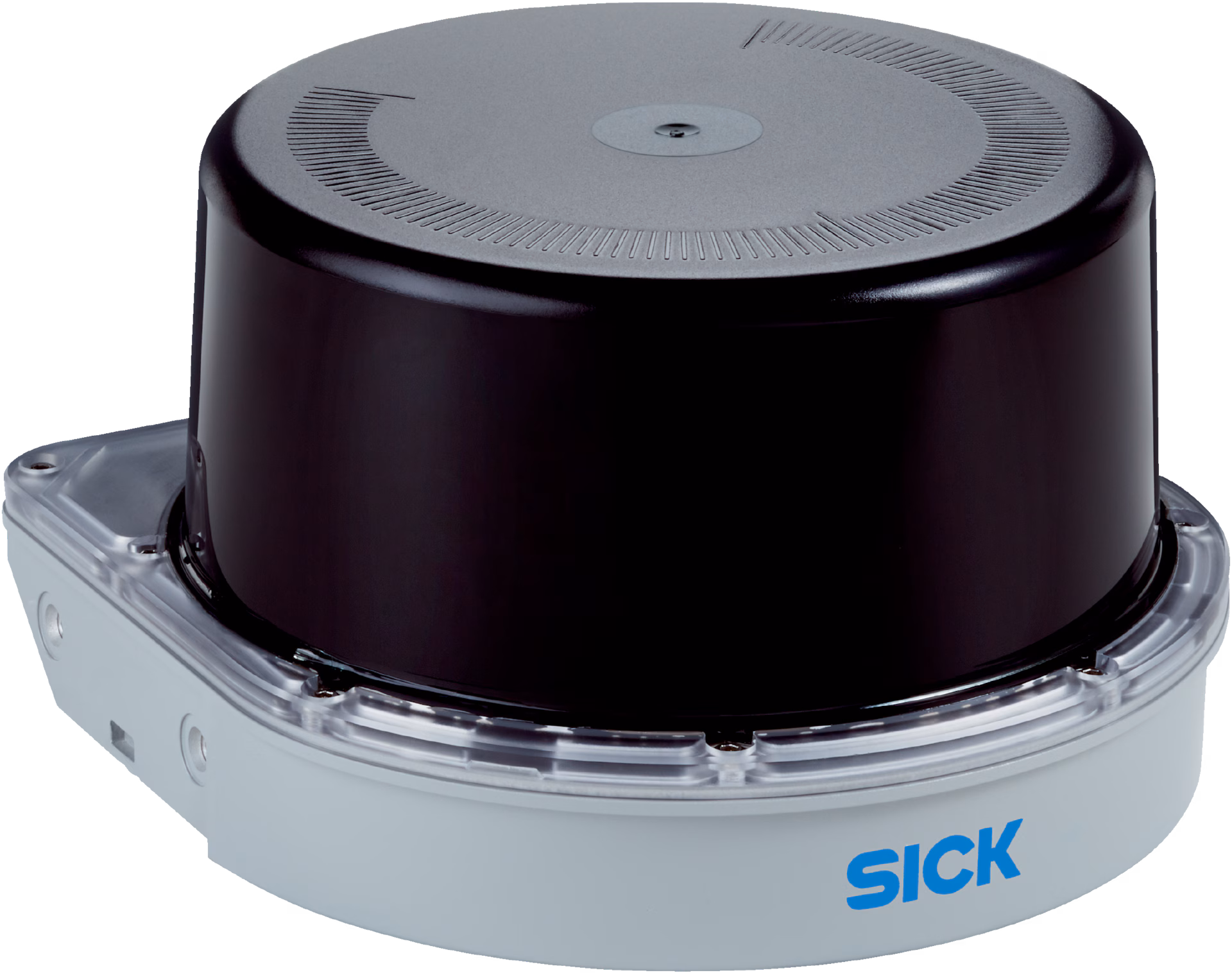

SICK 1081208 / MRS1104C-111011 is a lidar sensor in the MRS1000 family. Application: Outdoor, Indoor; Integrated application: Field evaluation, output of measurement data; Working range: 0.2 m... 64 m; Horizontal aperture angle: 275°; Vertical aperture angle: 7.5°, Over 4 scan layers; Amount of evaluated echoes: 3; Number of field sets: Up to 64 fields; Scanning frequency: 50 Hz, 4 x 12.5 Hz; Enclosure rating: IP65, IP67; Weight: 1.2 kg.

Manufacturer

Sick

Part number

1081208

Product family

MRS1000

Category

LiDAR sensors

Technical details

Working range: 0.2 m... 64 m; Angular resolution: Horizontal 0.0625°, interlaced; Supply voltage: 10 V DC... 30 V DC; Response time: 4 layers, typ. 20 ms; 1 layer, typ. 80 ms; Dimensions (L x W x H): 151.9 mm x 150 mm x 92.5 mm; Connection type: M12 round connectors with swivel connector (stainless steel); Enclosure rating: IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013); IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); Housing material: AlSi12, Optics cover: polycarbonate; Ambient operating temperature: –30 °C... +50 °C; Weight: 1.2 kg; Application: Outdoor, Indoor; Measurement principle: HDDM; Light source: Infrared (850 nm); Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)

Weight

1.2 kg

Dimensions

151.9 x 150 x 92.5

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
