1075638

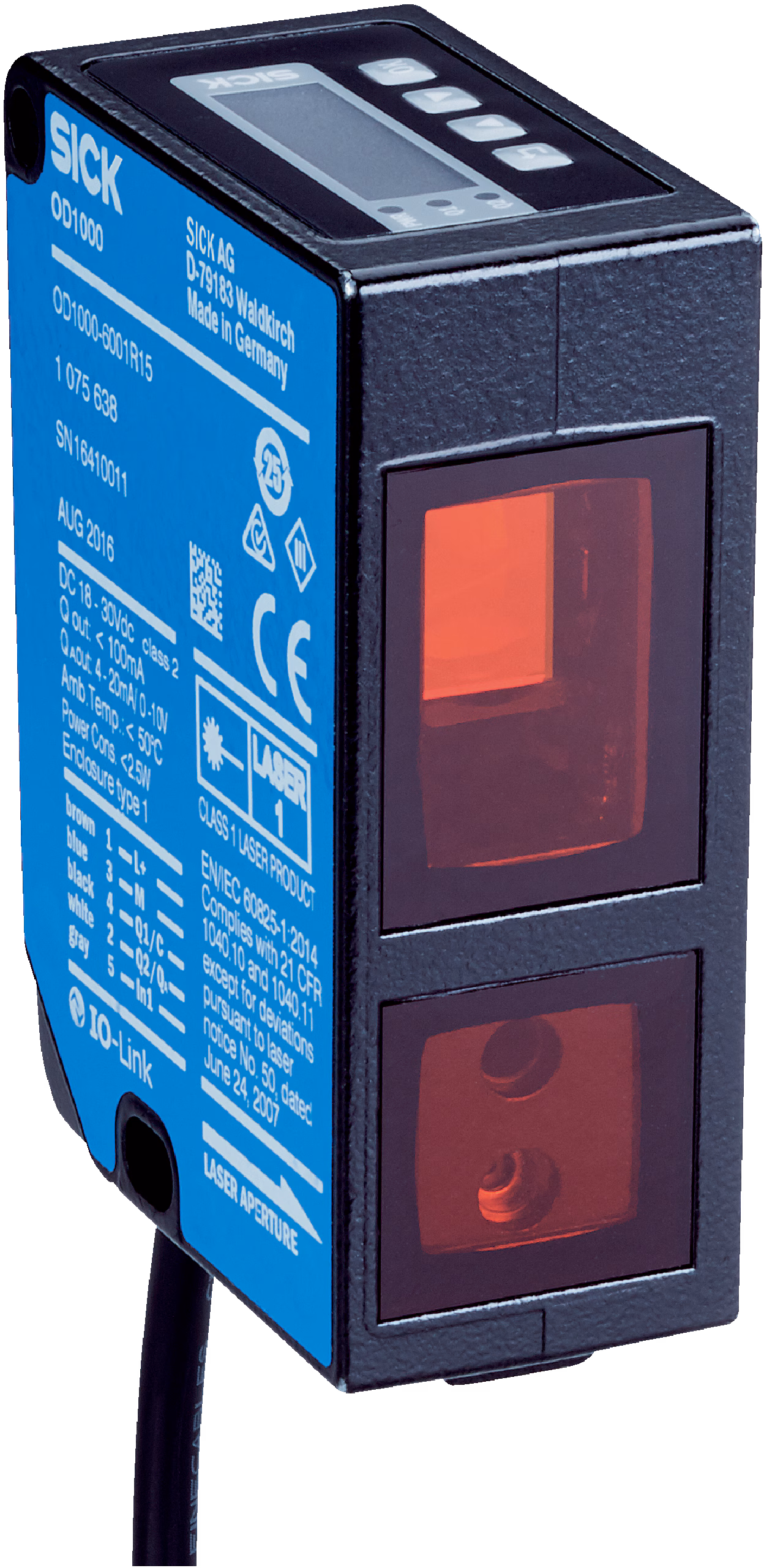

SICK 1075638 / OD1000-6001R15 is a laser distance sensor in the OD1000 family. Communication interface: IO-Link; Digital output: 2 x push-pull: PNP/NPN; Type of analog output: Current output / voltage output; Measuring range: 200 mm... 1,000 mm; Linearity: ± 1,500 µm; Laser class: 1; Typ. light spot size (distance): 1.5 mm x 1.5 mm (200 mm... 1,000 mm); Housing material: Metal; Connection type: Cable with male connector, M12, 5-pin, A-coded, 30 cm.

Manufacturer

Sick

Part number

1075638

Product family

OD1000

Category

Laser distance sensors

Technical details

Resolution: 16 bit; Supply voltage UB: DC 18 V... 30 V; Repeatability: 0.4 mm; Response time: ≥ 1.5 ms; Dimensions (W x H x D): 25.9 mm x 71.5 mm x 53.2 mm; Connection type: Cable with male connector, M12, 5-pin, A-coded, 30 cm; Enclosure rating: IP65; IP67; Housing material: Metal (zinc diecast); Weight: 280 g; Measuring range: 200 mm... 1,000 mm; Linearity: ± 1,500 µm; Measuring frequency: ≤ 3 kHz; Output time: ≥ 0.33 ms; Emitted beam: Light source Laser, red

Weight

0.28 kg

Dimensions

25.9 x 71.5 x 53.2
