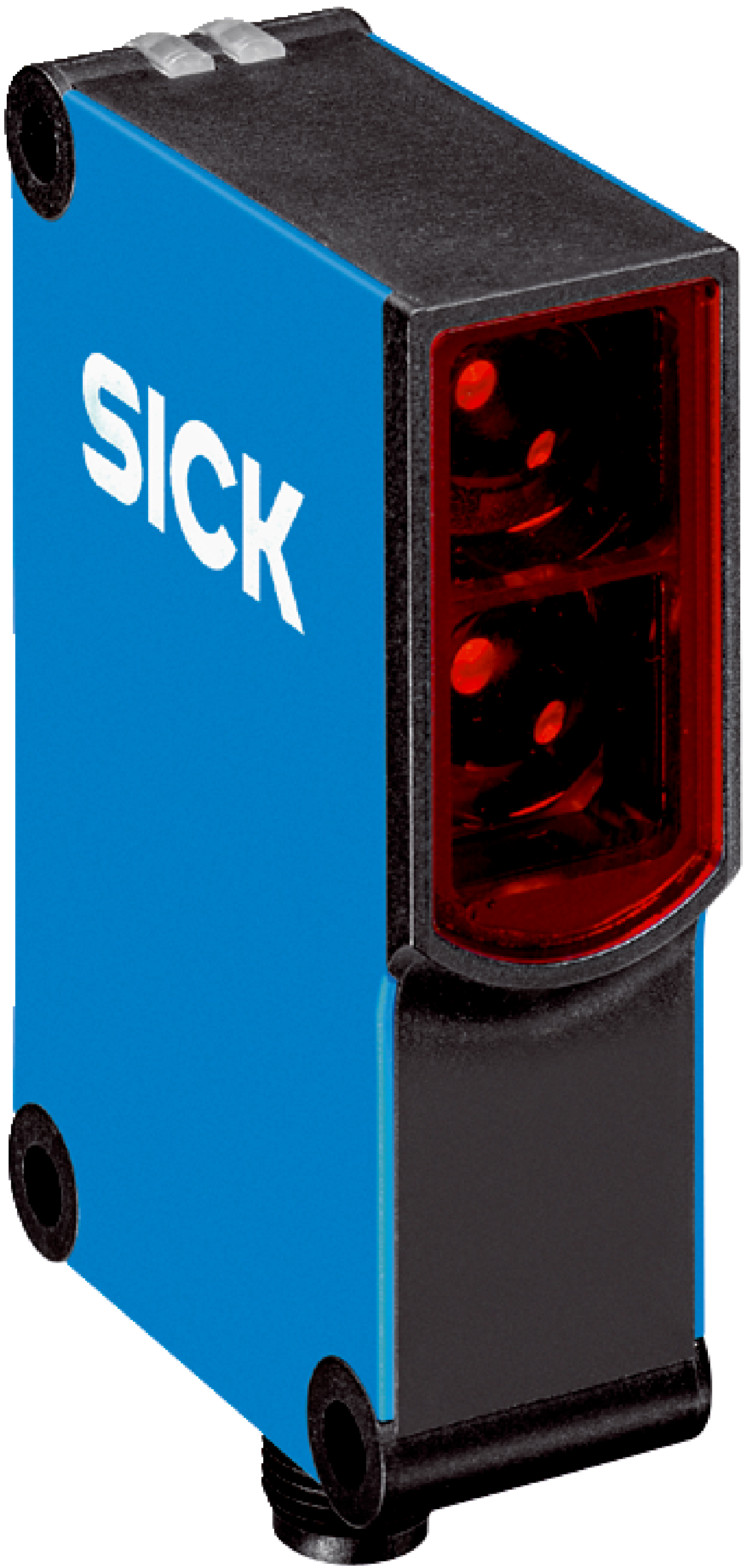

1045988

SICK 1045988 / WL27-302630S12 is an archive in the W27 family. Photoelectric sensors; Sensing range max.: 0.1 m... 1.8 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: Relay; Switching mode: Light switching; Connection type: Male connector Q6, 6-pin, AC/UC-coded; Adjustment: None.

Manufacturer

Sick

Part number

1045988

Product family

W27

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0.1 m... 1.8 m; Sensing range: 0.1 mm... 700 mm; Supply voltage UB: 10 V DC... 30 V DC; Switching output: Relay; Response time: ≤ 3 ms; Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm; Connection type: Male connector Q6, 6-pin, AC/UC-coded; Enclosure rating: IP65; Housing material: Plastic, ABS; Ambient operating temperature: –40 °C... +60 °C; Weight: 120 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system)

Weight

0.12 kg

Dimensions

24.6 x 80.6 x 54
