1027750

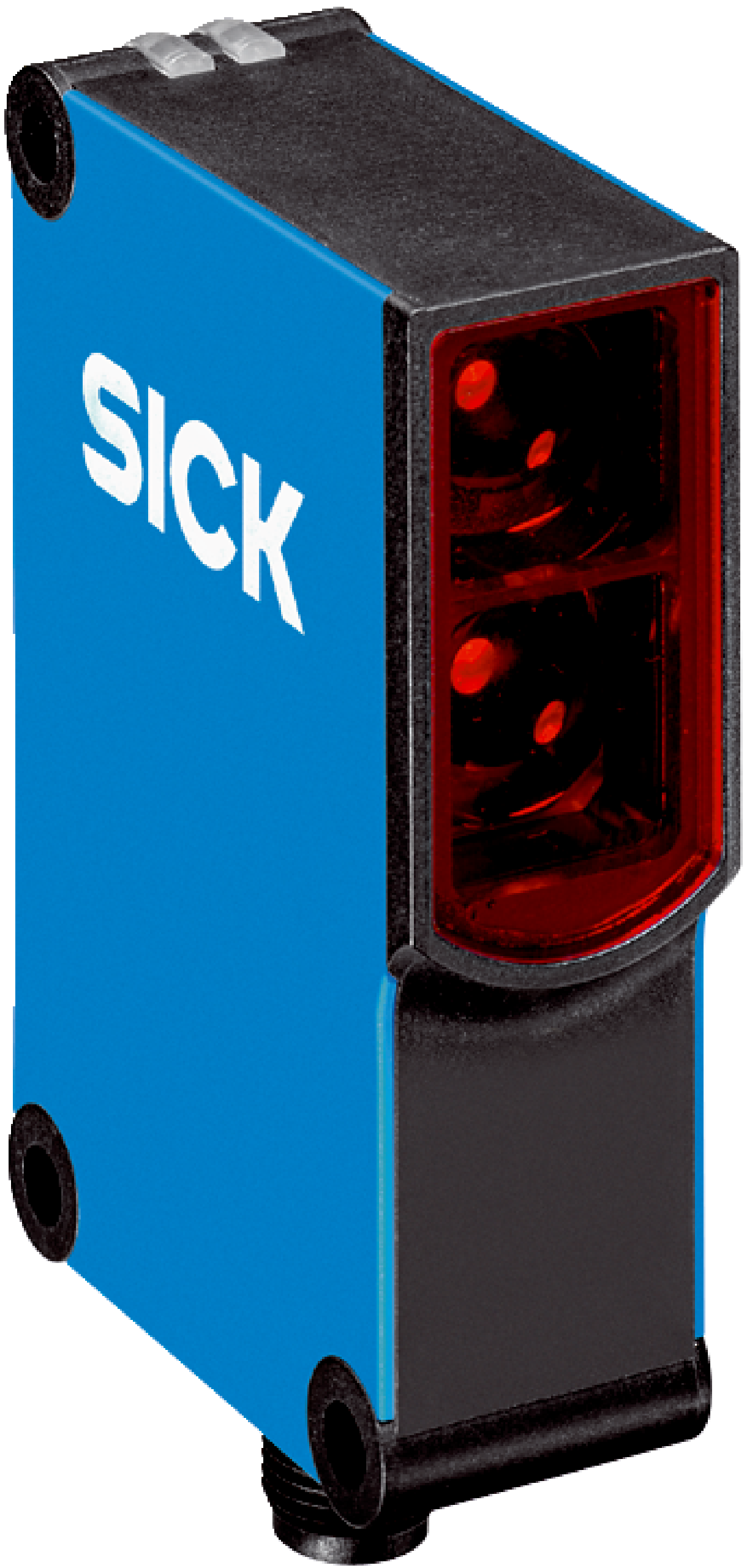

SICK 1027750 / WTB27-3R2641 is an archive in the W27 family. Photoelectric sensors; Sensing range max.: 30 mm... 1,100 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: Relay; Switching mode: Light/dark switching; Connection type: Male connector Q6, 6-pin, AC/UC-coded; Adjustment: Potentiometer.

Manufacturer

Sick

Part number

1027750

Product family

W27

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 30 mm... 1,100 mm; Sensing range: 100 mm... 1,100 mm; Supply voltage UB: 20 V AC/DC... 250 V AC/DC; Switching output: Relay, electrically isolated; Response time: ≤ 10 ms; Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm; Connection type: Male connector Q6, 6-pin, AC/UC-coded; Enclosure rating: IP65; Housing material: Plastic, ABS; Ambient operating temperature: –40 °C... +60 °C; Weight: 120 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression

Weight

0.12 kg

Dimensions

24.6 x 80.6 x 54
