1027769

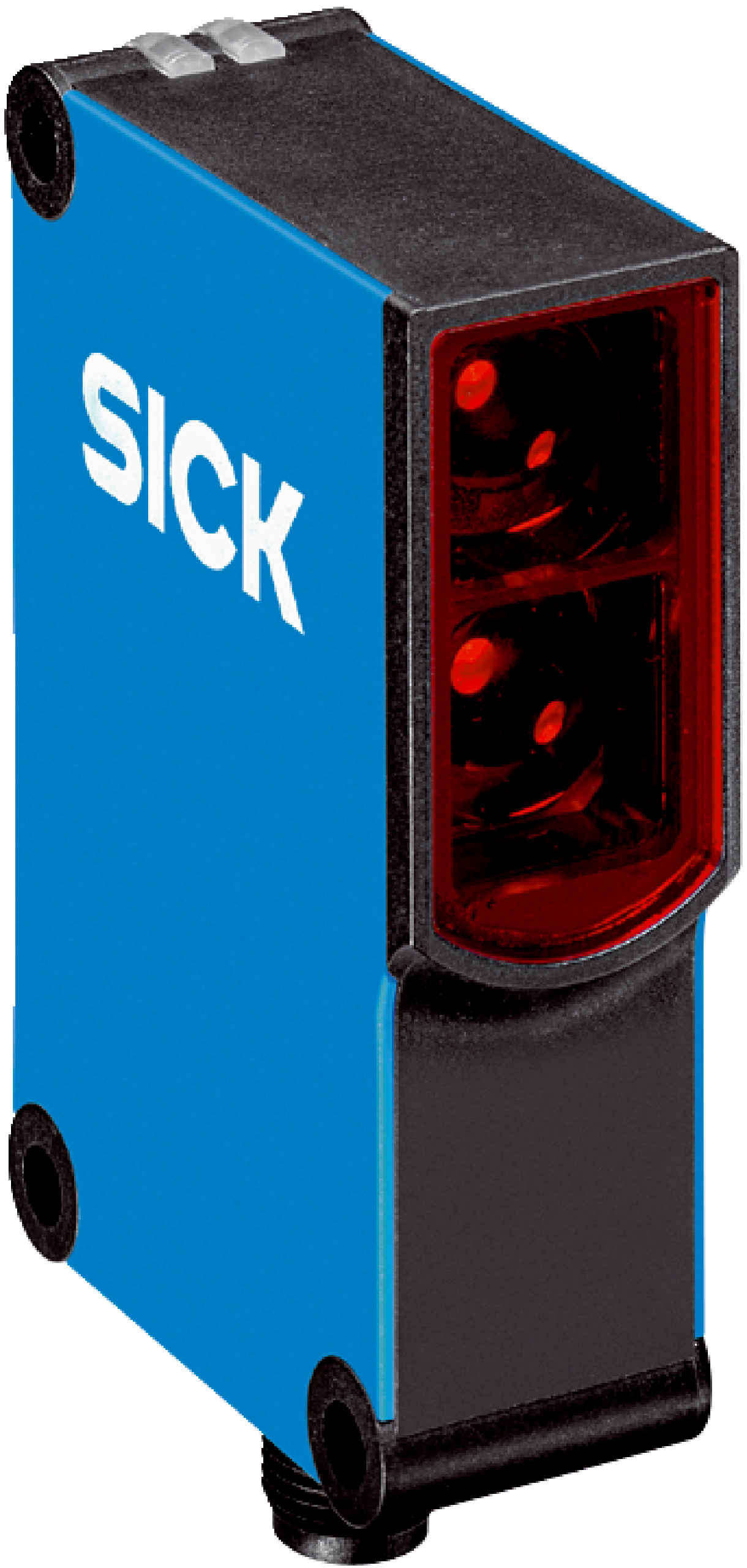

SICK 1027769 / WL27-3P2430 is an archive in the W27 family. Photoelectric sensors; Sensing range max.: 0.1 m... 15 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M12, 4-pin; Adjustment: None.

Manufacturer

Sick

Part number

1027769

Product family

W27

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0.1 m... 15 m; Sensing range: 0.1 m... 11 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: ≤ 500 µs; Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP69K; Housing material: Plastic, ABS; Ambient operating temperature: –40 °C... +60 °C; Weight: 100 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system)

Weight

0.1 kg

Dimensions

24.6 x 80.6 x 54
