1029141

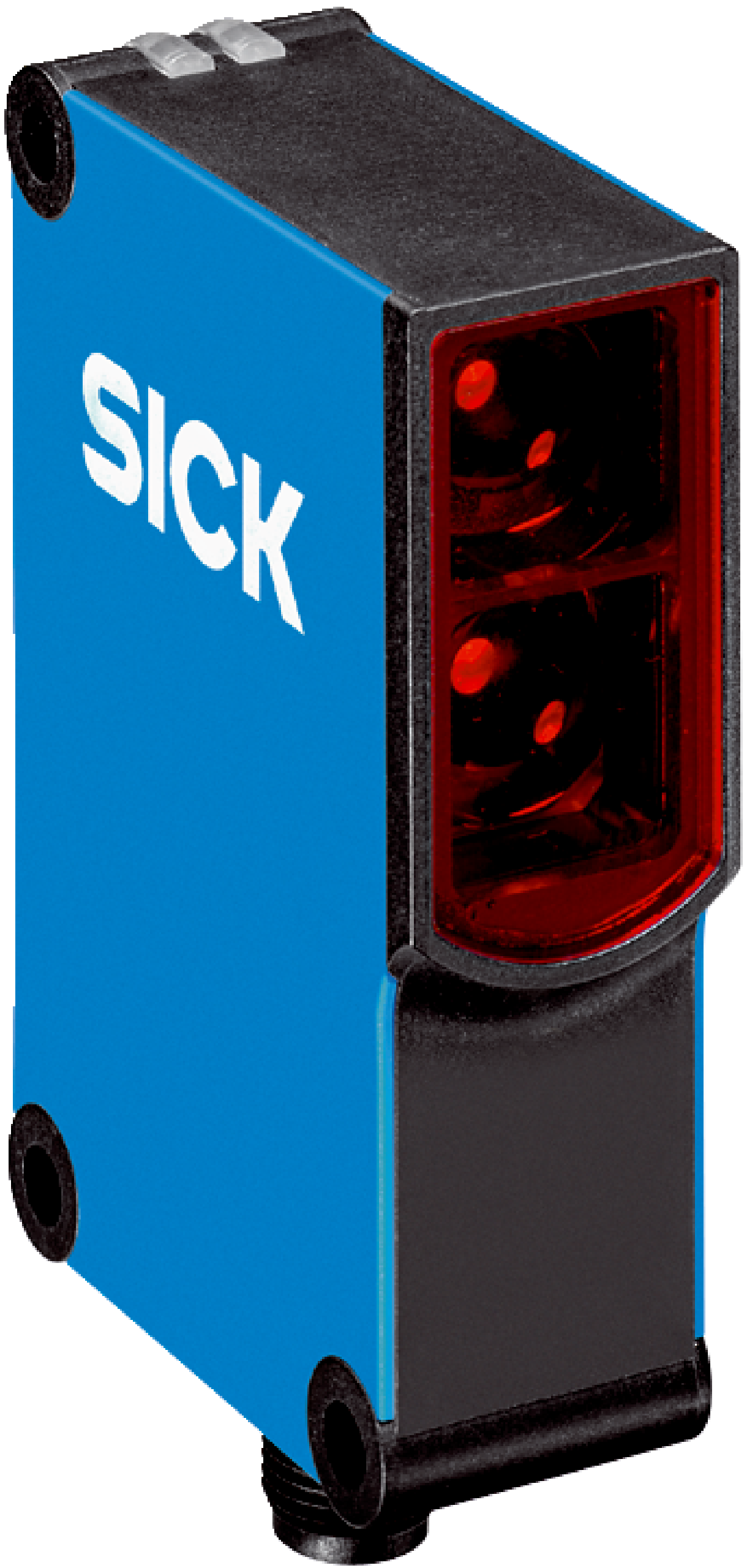

SICK 1029141 / WTB27-302641S08 is an archive in the W27 family. Photoelectric sensors; Sensing range max.: 30 mm... 1,100 mm; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression; Switching output: Relay; Connection type: Male connector Q6, 6-pin, AC/UC-coded; Adjustment: Potentiometer.

Manufacturer

Sick

Part number

1029141

Product family

W27

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 30 mm... 1,100 mm; Sensing range: 100 mm... 250 mm; Supply voltage UB: 10 V DC... 30 V DC; Switching output: Relay; Response time: ≤ 3 ms; Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm; Connection type: Male connector Q6, 6-pin, AC/UC-coded; Enclosure rating: IP65; Housing material: Plastic, ABS; Ambient operating temperature: –40 °C... +60 °C; Weight: 120 g; Functional principle: Photoelectric proximity sensor; Functional principle detail: Background suppression

Weight

0.12 kg

Dimensions

24.6 x 80.6 x 54

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
