1027777

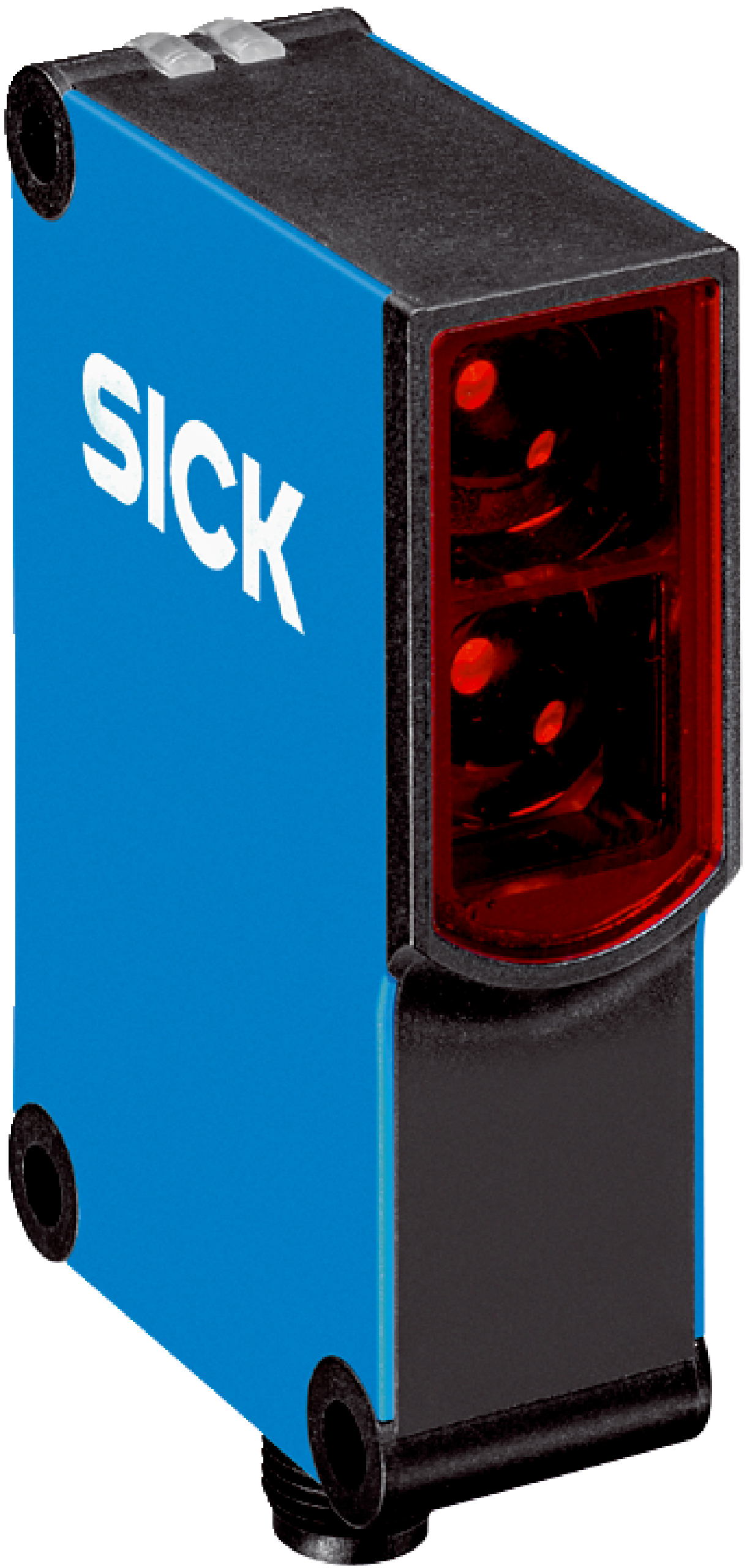

SICK 1027777 / WL27-3S3731 is an archive in the W27 family. Photoelectric sensors; Sensing range max.: 0.1 m... 15 m; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: Relay; Switching mode: Light switching; Connection type: Cable with Q7 male connector, 7-pin, AC/UC-coded; Adjustment: Potentiometer.

Manufacturer

Sick

Part number

1027777

Product family

W27

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0.1 m... 15 m; Sensing range: 0.1 m... 11 m; Supply voltage UB: 20 V AC/DC... 250 V AC/DC; Switching output: Relay, electrically isolated; Response time: ≤ 10 ms; Dimensions (W x H x D): 24.6 mm x 80.6 mm x 54 mm; Connection type: Cable with Q7 male connector, 7-pin, AC/UC-coded, 150 mm; Enclosure rating: IP66; IP67; Housing material: Plastic, ABS; Ambient operating temperature: –40 °C... +60 °C; Weight: 140 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system)

Weight

0.14 kg

Dimensions

24.6 x 80.6 x 54

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
